Chapter 3 Creating and Editing Screens
See below example.
(1). See the memory space after a picture is imported.
(2). See the memory space after a history data is created.
(1). Import a picture
When importing a picture on HMI screen, the memory space of ROM and SDRAM changes.
When the user create a new project, the calculated memory space by the system is shown
as:
ROM=3.13%
SDAM=0.71%

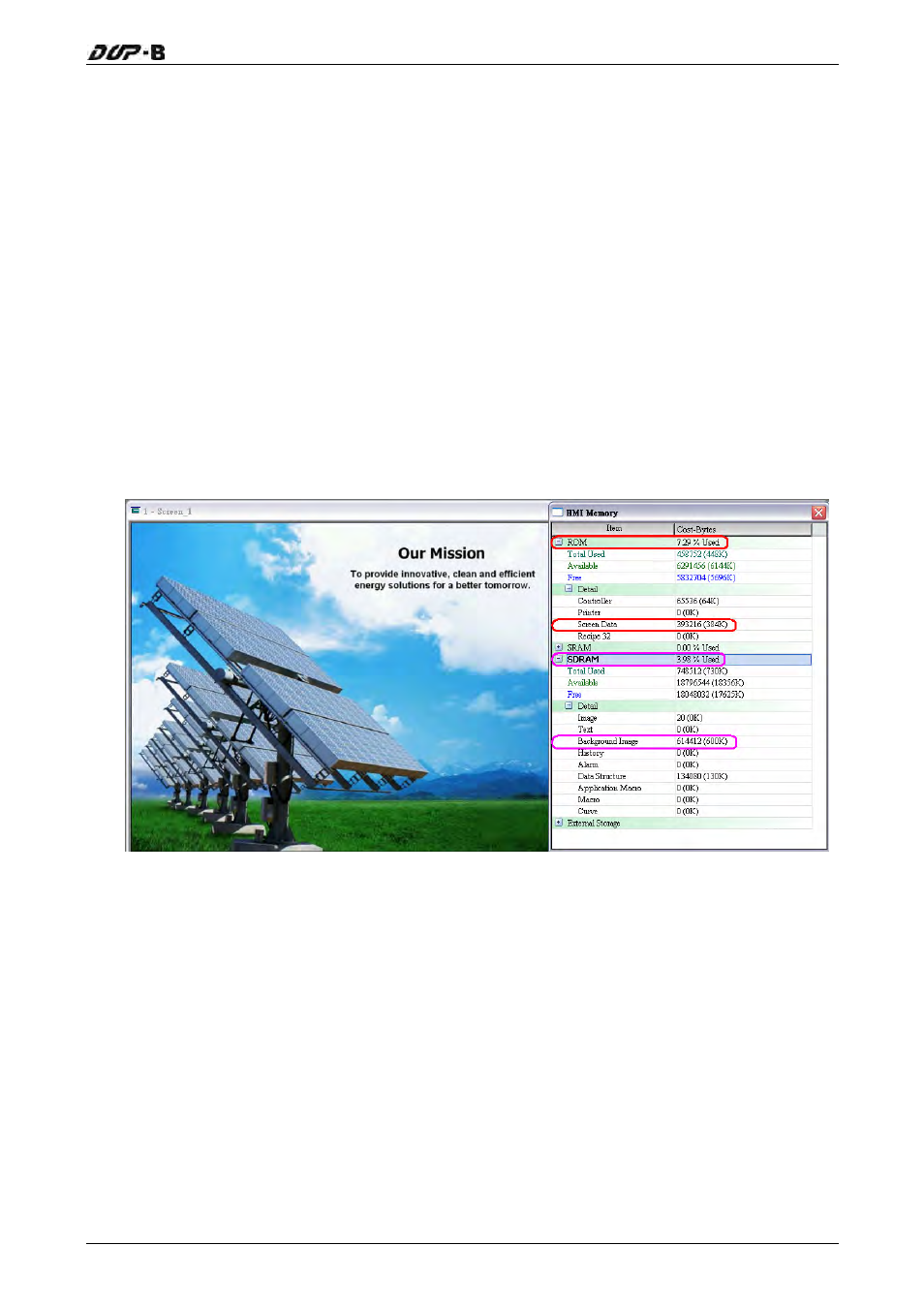

After importing a picture on the screen, the memory space changes as shown as the figure
below.
At this time, the memory space is changed as:
ROM=7.29%
SDAM=3.98%
The occupied ROM space increases 256K (384K-128K) and the occupied SDRAM space
increases 600K (600K-0K).
