Chapter 3 Creating and Editing Screens
Revision May, 2010 3-199
3.8.15.5 Arc
Property Description of Arc Drawing Element
Left-click the mouse to draw and edit the arc graphic element. The user can click where
the user wants to start the arc and drag across the work place on the screen. Then,
release the mouse to finish the arc. When selecting this arc graphic element, the user
can see a rectangle range and this is designed for the user to move and adjust the arc
more quickly and conveniently. Changing the size of the rectangle range is changing
the size of arc graphic element directly. There is a “Transparent” option in the element
property table. If this option is set to Yes, it indicates that this element is an arc. If this
option is set to No, it indicates that this element is a sector. The range out of the circle
graphic element itself will be displayed in transparent color.

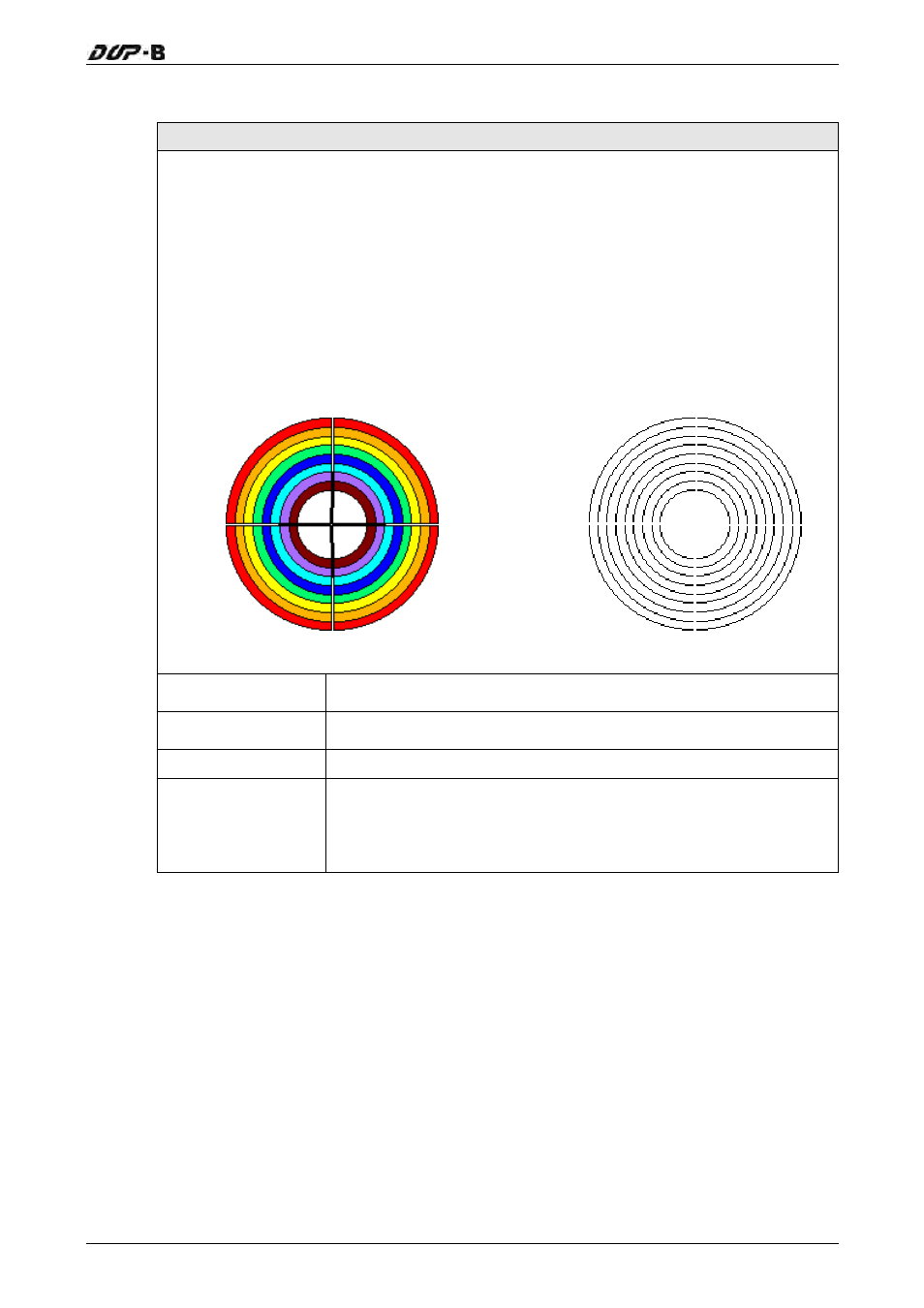

When “Transparent” is set to “No” When “Transparent” is set to “Yes”.
Curve Color It is used to set the line color of the arc graphic element.
Foreground Color It is used to set the display color of the arc graphic element.
Line Size The unit is Pixel and the range is within 1 ~ 8.
Transparent
When this option is selected, the element will display only with
the border and there is no color in the element. The Foreground
Color option will be disabled also.
