Delta Electronics DELTA DUP-B User Manual
Page 409
Chapter 4 Examples

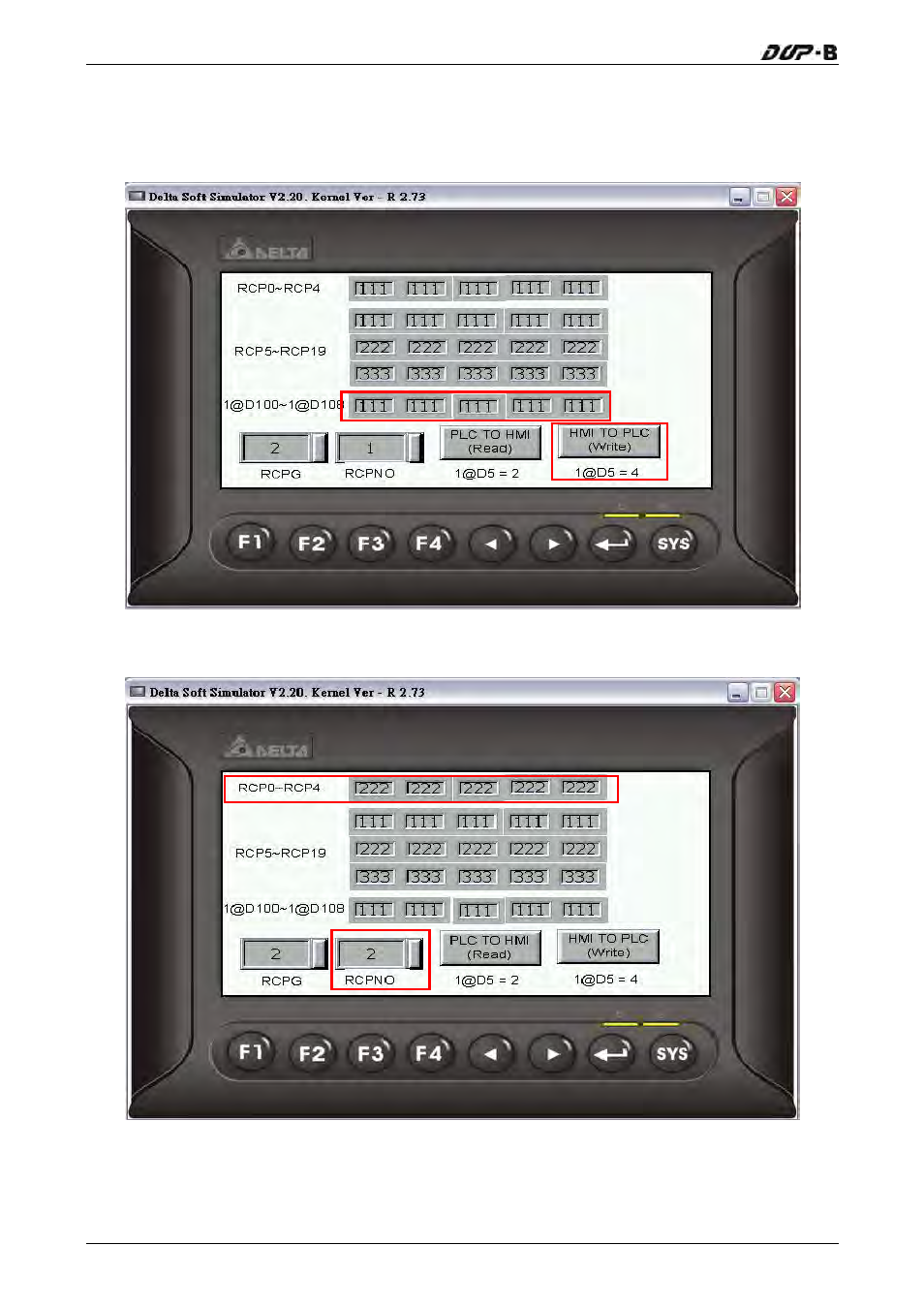

Press Write button on the screen and HMI will write the 1st group of recipe data into PLC
address 1@D100~1@D108. At this time, the display value of 1@D100~1@D108 will become
111 shown as the figure below.
Set RCPNO = 2, the 2nd group of recipe data will be displayed in RCP0~RCP4 as shown as the
figure below.
Press Read button on the screen and HMI will read the recipe data in PLC and save the data in
the 2nd group of recipe data.
4-10
Revision May, 2010
