Chapter 3 Creating and Editing Screens

3.7.5 Zoom

Out

Zoom out to see more look of the elements on ScrEdit work place (Fig. 3-7-9).

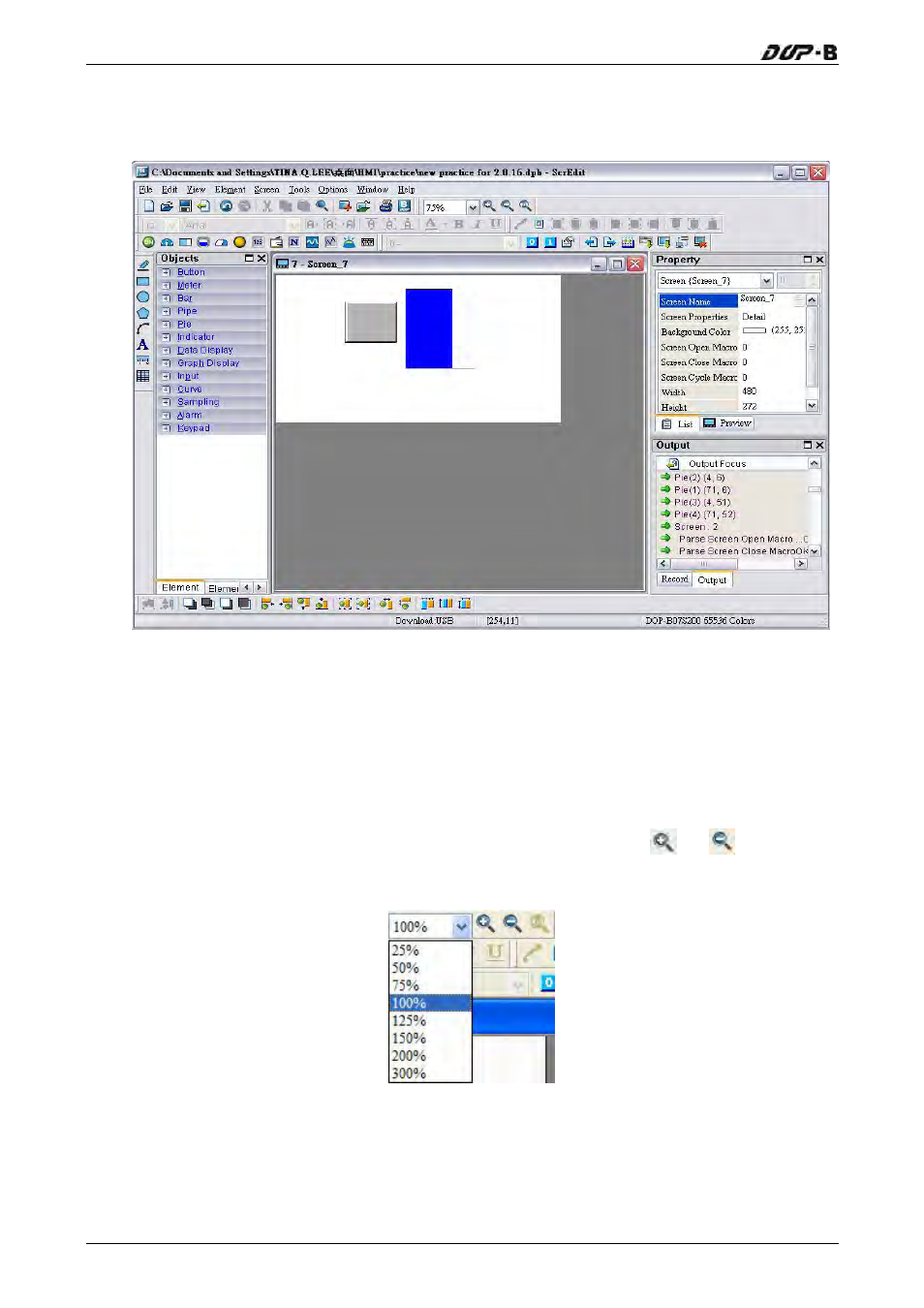

Fig. 3-7-9 Zoom level = 75% (After Choosing Zoom Out command)

3.7.6 Actual

Size

Return to actual size (100%). This size is relative to the screen size of HMI.
No matter zoom in or zoom out command, the zoom level could be 20%, 50%, 75%, 100%,

150%, 200% or 300%. The user can also zoom in or out by clicking

or

or selecting

the Zoom level (Fig. 3-7-10).

Fig. 3-7-10 Zoom Level

3-72

Revision May, 2010
