Chapter 3 Creating and Editing Screens

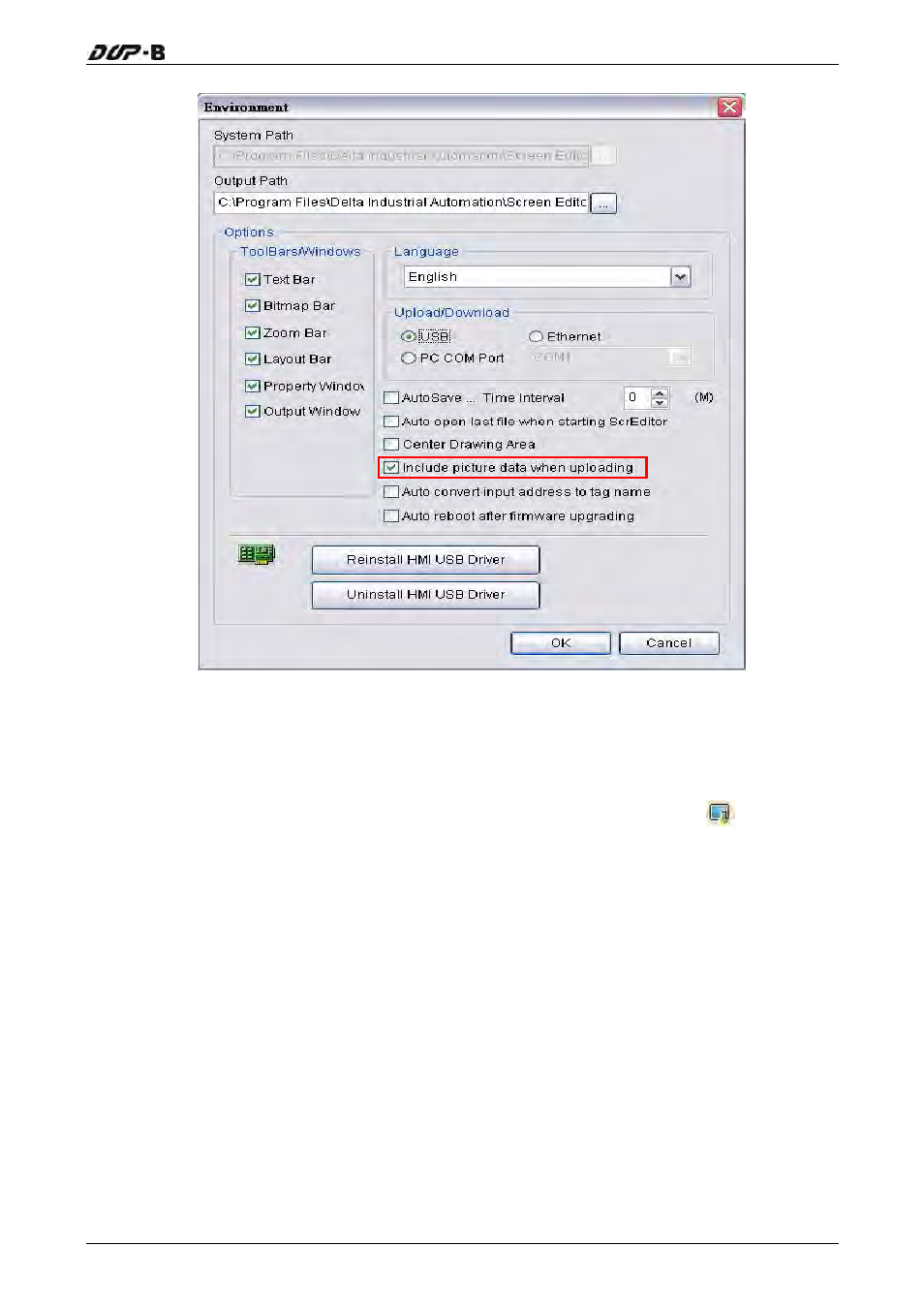

Fig. 3-10-8 Environment dialog box
3.10.4 Download
Screen
To download screen data to HMI, select Tools > Download Screen or click
icon directly
or press Ctrl + F9. The download process is the same as the function of Download Screen &
Recipe. The only difference is that the function of Download Screen & Recipe allows the user
to download the screen data and recipe data both but the function of Download Screen allows
the user to download screen data only.
3.10.5 Upload
Recipe
To upload the recipe data only, select Tools > Upload Recipe. Then, the password dialog box
is displayed. The user must enter a password to access the HMI (the password is the highest
priority saved in HMI, which is set by clicking Options > Configuration > General > Security).
Enter the name of the recipe to start the upload. When the progress goes to 100%, the upload
is complete. To monitor the progress of the upload, access the progress box. To stop the
upload, click the Stop button.
Revision May, 2010
3-221
