Chapter 3 Creating and Editing Screens
3-70 Revision May, 2010
3.7.3 Record and Output Window
c ys all the editing actions and output message when
4,
The Re ord and Output Window displa
compile function is enabled. When HMI program is compiled, the system will detect the
program automatically. Once error occurs, the error messages will be displayed in Output
Window. To get to the error element window, click on the error message (Fig. 3-7-3, Fig. 3-7-
Fig. 3-7-5, Fig. 3-7-6).

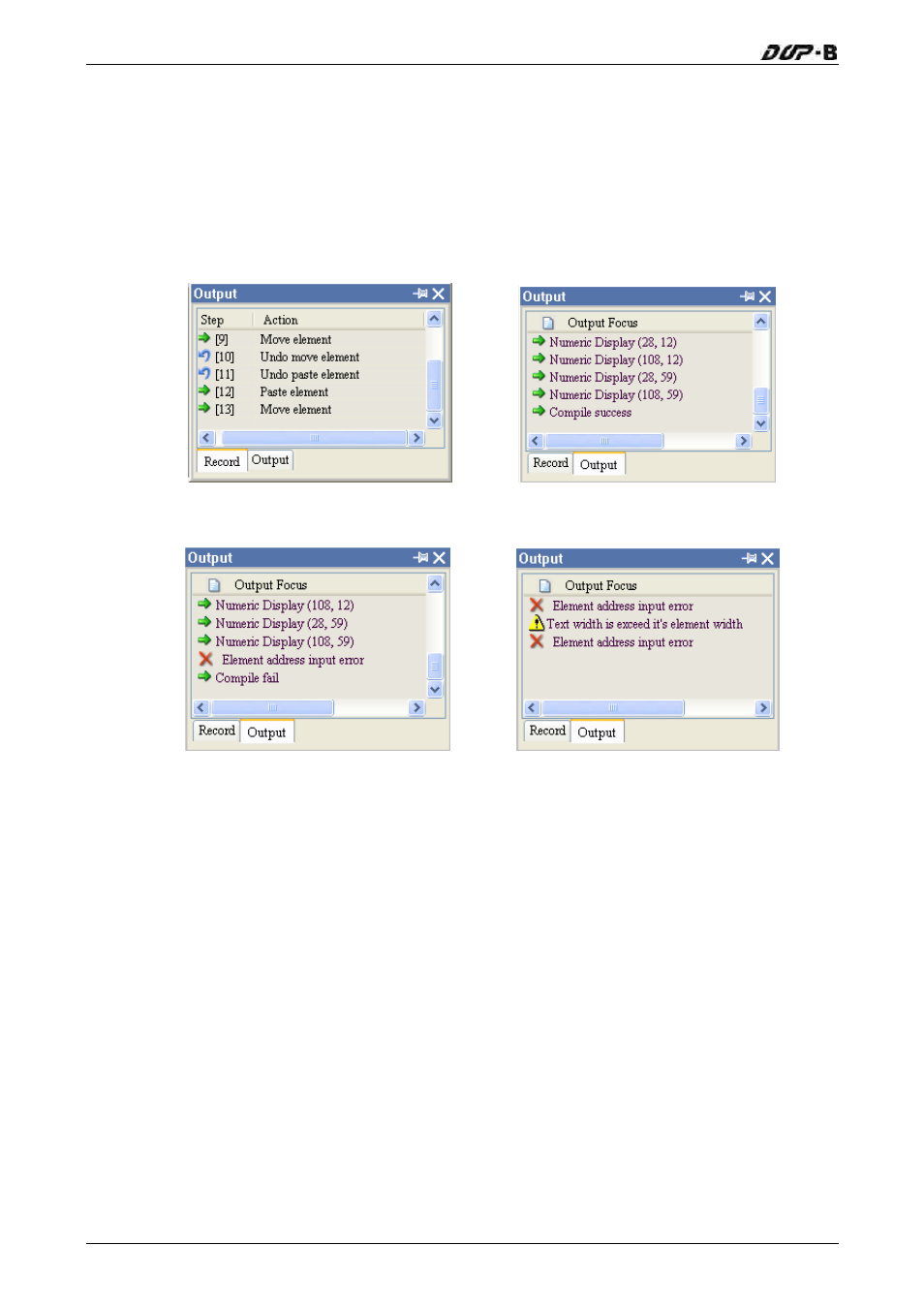

Fig. 3-7-3 Record Window Fig. 3-7-4 Output Window
Fig. 3-7-5 Compile Result Fig. 3-7-6 Error Message
