Delta Electronics DELTA DUP-B User Manual
Page 190
Chapter 3 Creating and Editing Screens
Revision May, 2010
3-169

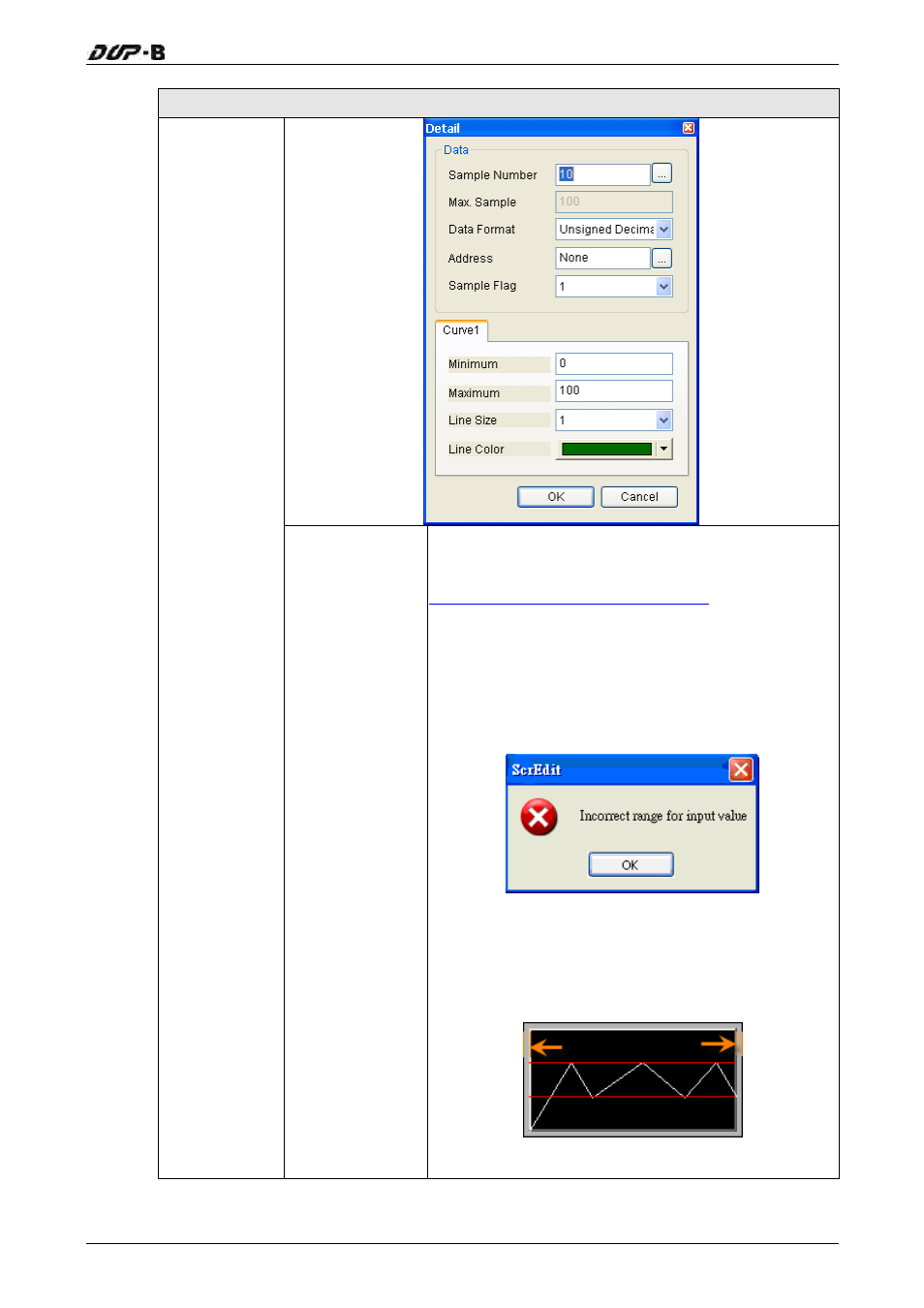

Property Description of Trend Graph Elements
Setting
Sample Number
Max. Sample
Number
Sample Number can be set to a constant or a
variable value.
When Sample Number is a constant
:
The sample number represents a curve which is
composed of the data of several addresses
(registers). When the sample number exceeds the
width range that the element can draw, the
following warning dialog box will display.
It means that if the allowable width range of the
created element is 10 sample numbers, when the
sample number set by the user is higher than 10,
the warning dialog box above will display.
