Chapter 3 Creating and Editing Screens
Revision May, 2010 3-117
3.8.3 Meter Elements

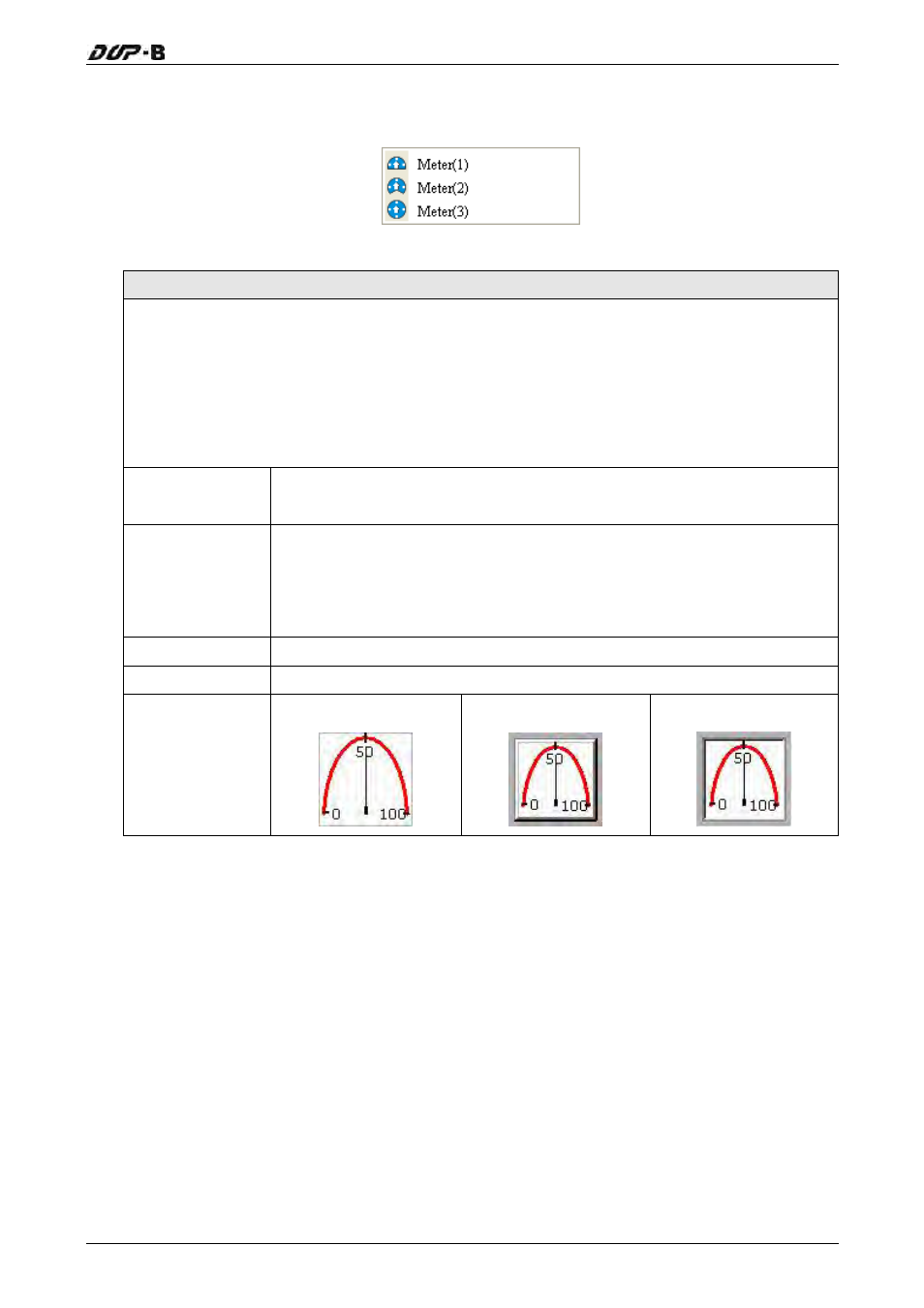

Fig. 3-8-20 Meter Elemets
Property Description of Meter Elments
The user can set meter appearance in the property table, such as the style, the color
(including border color, background color, stitch color, scale color) and the scale region
number, etc. Also, the max. & min. value and high & low limit can be defined in Detail Setup
dialog box. It can be used to calculate the specified address and measure if it exceeds the
limit or not. The user can also use various colors to show clearly and this is convenience for
the user to recognize.
Read Address
The address can be internal memory or the controller address. (Please
refer to Table 3-8-2 Property Description of General Buttons.)
Text
Text Size
Font
Text Color
The user can set the text, text size, font and text color provided by
Windows® to determine the text display on the element (Please refer to
Table 3-8-2 Property Description of General Buttons.)
Border Color Set the border color of the element
Background Color Set the background color of the element
Standard Raised Sunken
Style
