Chapter 3 Creating and Editing Screens
3-202 Revision May, 2010
Property Description of Scale Drawing Element
Data Format
There are following data format provided:
Word/Double Word
1. BCD
2. Signed Decimal
3. Unsigned Decimal
Minimum
Maximum
The user can set the minimum and maximum of input
setting value to determine the range of input setting
value.
Integral
Digits
Fractional
Digits
Use this option to determine the digit number of
integer and decimal fraction. The digit number is not a
real digit number value. It is only the display format.
The digit number will be a real decimal number only
when the data format is selected as “Floating”.
Setting
When the user have input the minimum and maximum value, after
pressing OK button, HMI will examine the value by referring to the
selected data length, data format, integral and fractional digits.
SubScale
Number

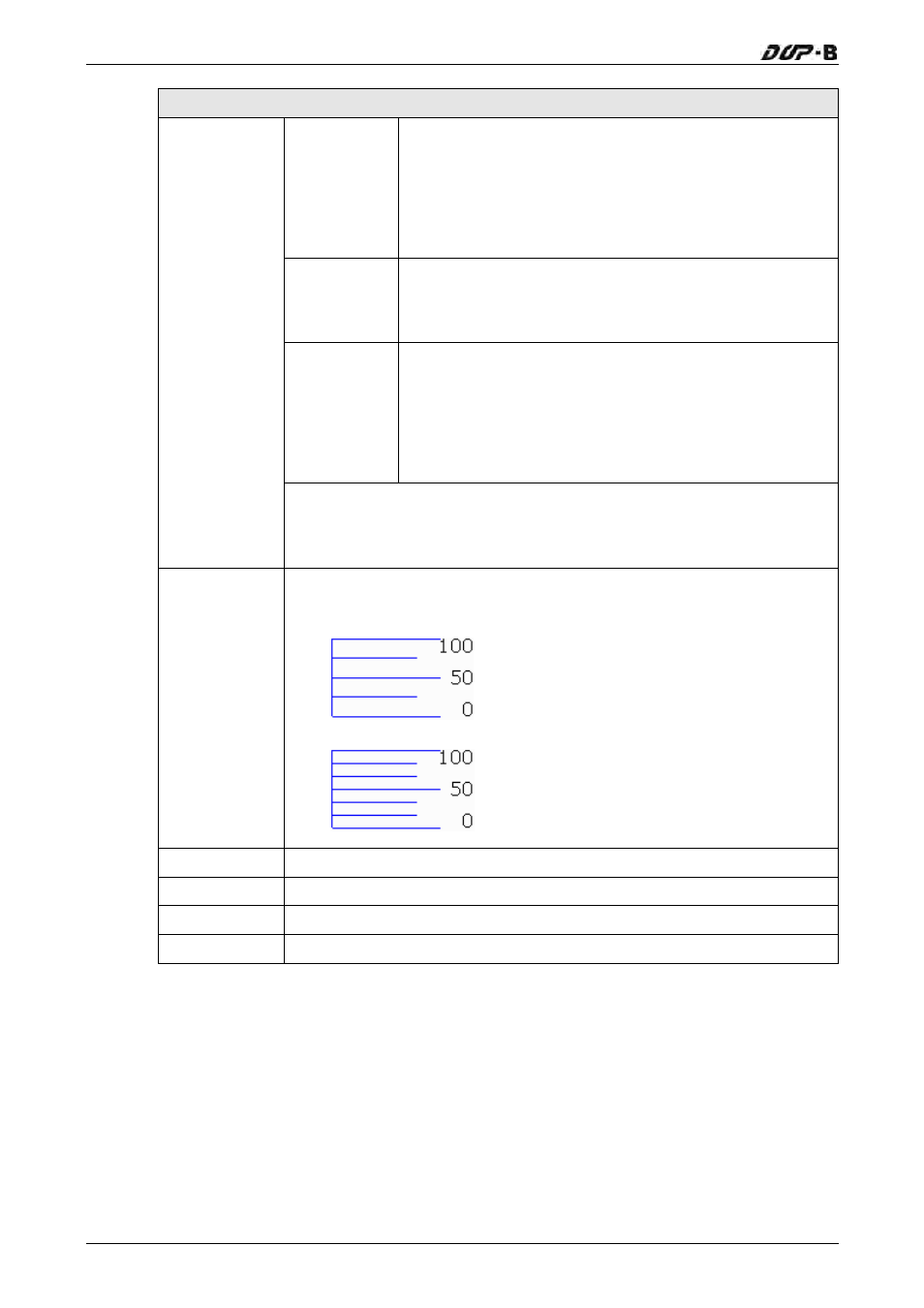

When the main scale number is set to 3 and the subscale number is
also used, the scale graphic element will display as the figures below:
When subscale number is set to 1
When main scale number is set to 2
X Used to set X coordinate
Y Used to set Y coordinate
Width Used to set the element width
Height Used to set the element height
