3.8.15.7 Scale

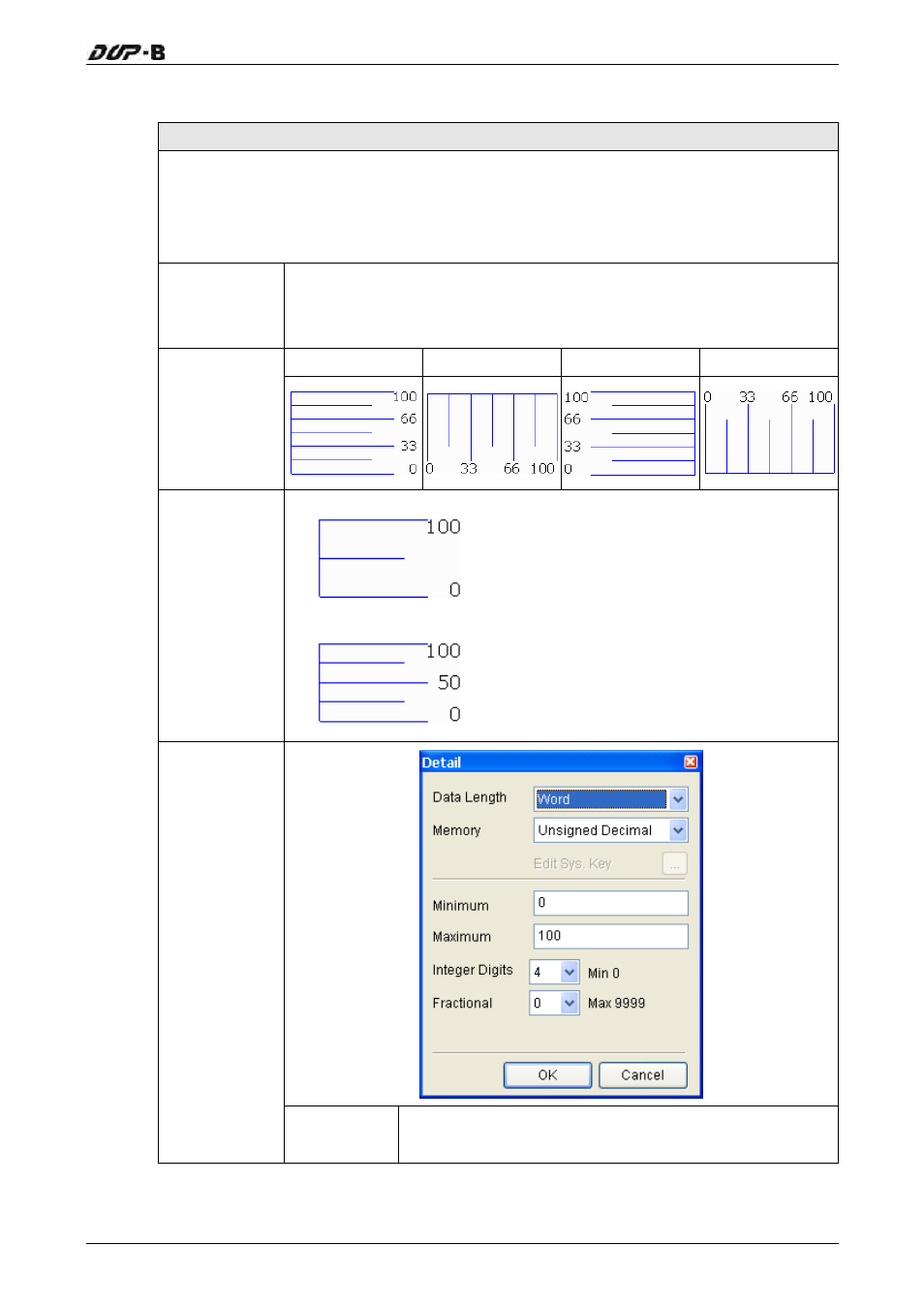

Property Description of Scale Drawing Element
The user can change the scale direction, main and sub scale number, and grid color in
the property table to create a special and unique scale graphic element. The “Display
Mark” option can be used to determine if the scale value display next to the scale or
not. The minimum and maximum of the scale value can be set in “Detail Setup” option.
Text Size
Text Color
The user can set the text size and text color that provided by HMI to
determine the text display on the element. HMI provides 8~64 kinds of
default text font for the user to use.
Standard Rotation 90 Rotation 180 Rotation 270
Style
Main Scale
Please refer to the figures below:：
When main scale number is set to 2
When main scale number is set to 3
Setting
Date Length
There are 16bits Word and 32bits Double Word two
options.
