Chapter 3 Creating and Editing Screens
 This is the operation of signed 32-bit data.
 The calculation result can be stored as signed DWORD. When the data exceeds
the length of designated unit, the data out of range will be discarded.
 Var1 can be internal memory only. Var2 can be internal memory or constant.
 The display format of the variables must be floating point.
 The input variable must be a signed decimal value without the decimal point.

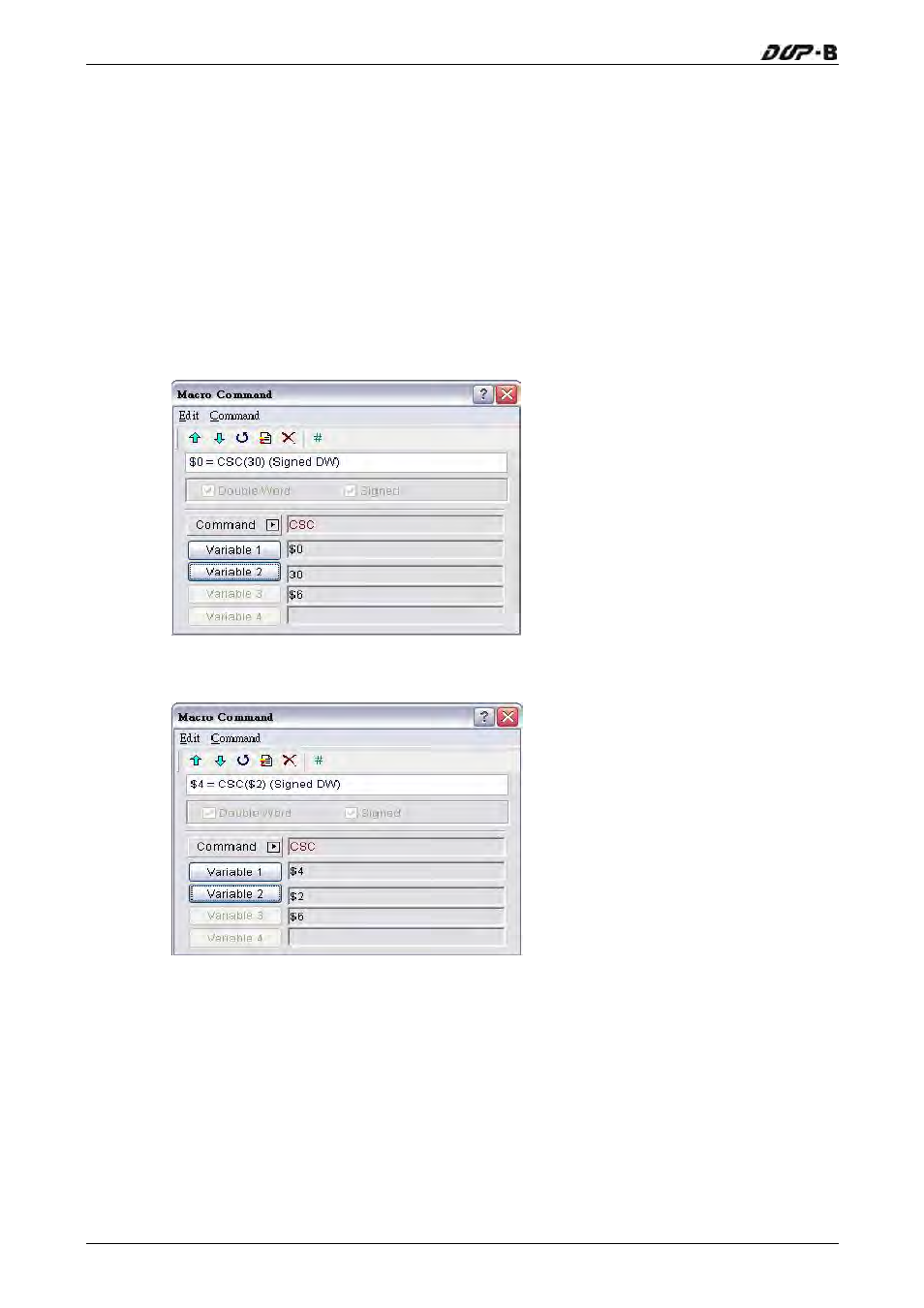

Example
Perform the function of CSC30
o and store the result in $0 (this is a floating point
operation of signed 32-bit data).
Perform the cosecant function of $2 and store the result in $4 (this is a floating point
operation of signed 32-bit data).
3-320 Revision May, 2010
