Delta Electronics DELTA DUP-B User Manual
Page 407
Chapter 4 Examples

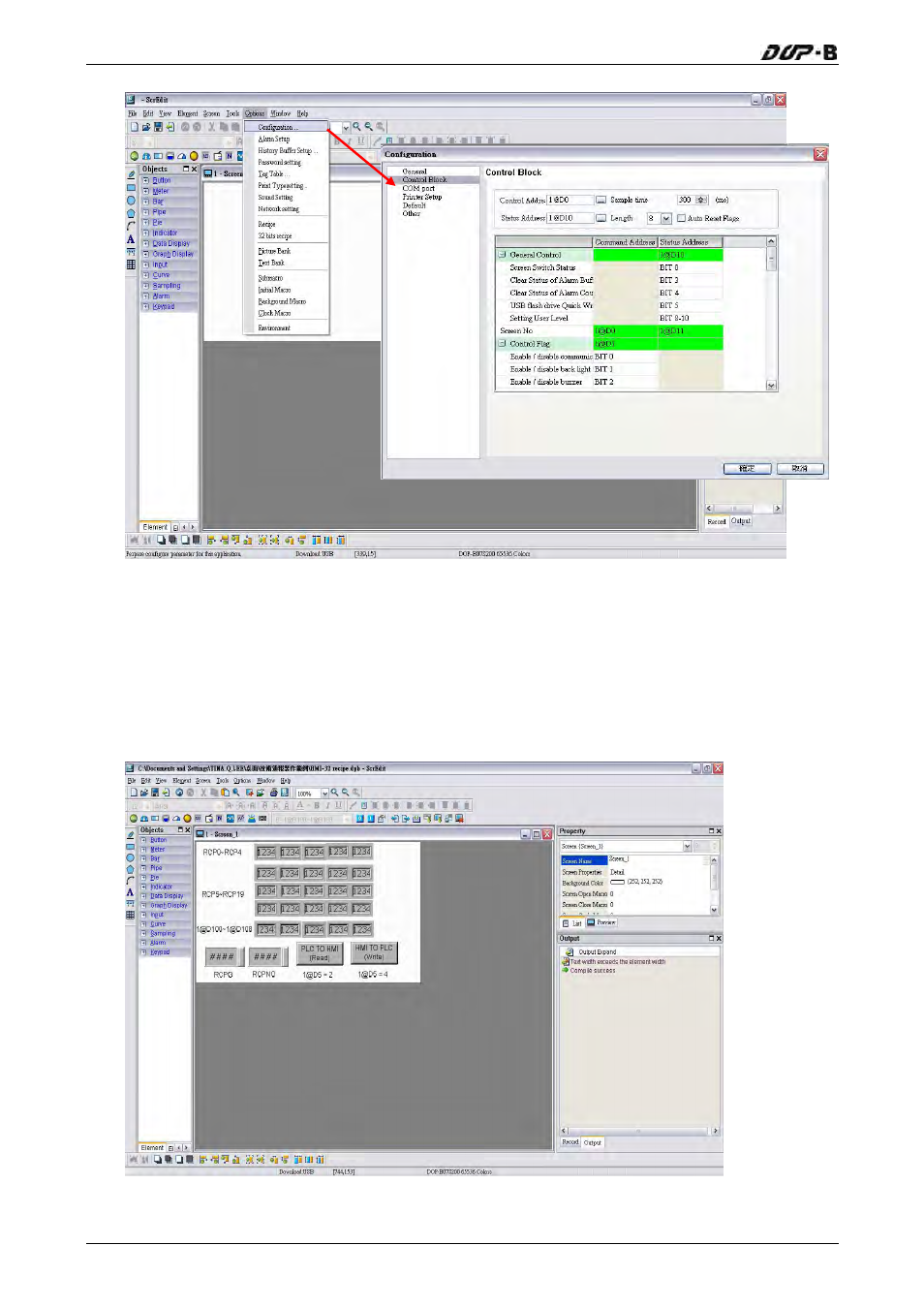

Then, press OK button to complete the Control Block settings.
In the editing area of HMI, create Numeric Entry elements to indicate recipe buffer (RCP0~RCP4),
recipe table (RCP5~RCP19) and recipe write addresses (1@D100~1@D108). In addition, create
three registers, Recipe Group Designation Register (RCPG), Recipe Number Designation Register
(RCPNO), Recipe Write (1@D5=2) Register and Recipe Read (1@D5=4) Register by using Numeric
Entry elements as shown as the figure below.
Perform Compile operation and download the screen data into HMI.
4-8
Revision May, 2010
