Chapter 3 Creating and Editing Screens
3.7.9 Grid Setup
Grid Setup is a function that can help the user to align and position the element more easily
and precisely. The distance (spacing) between the grid dots can be set by the user freely (Fig.
3-7-13 and Fig. 3-7-14).
Show Grid: Show the grid dots on the screen.
Snap to Grid: Make the elements snap to grid so that the elements can jump between grid
lines when the user moves them.

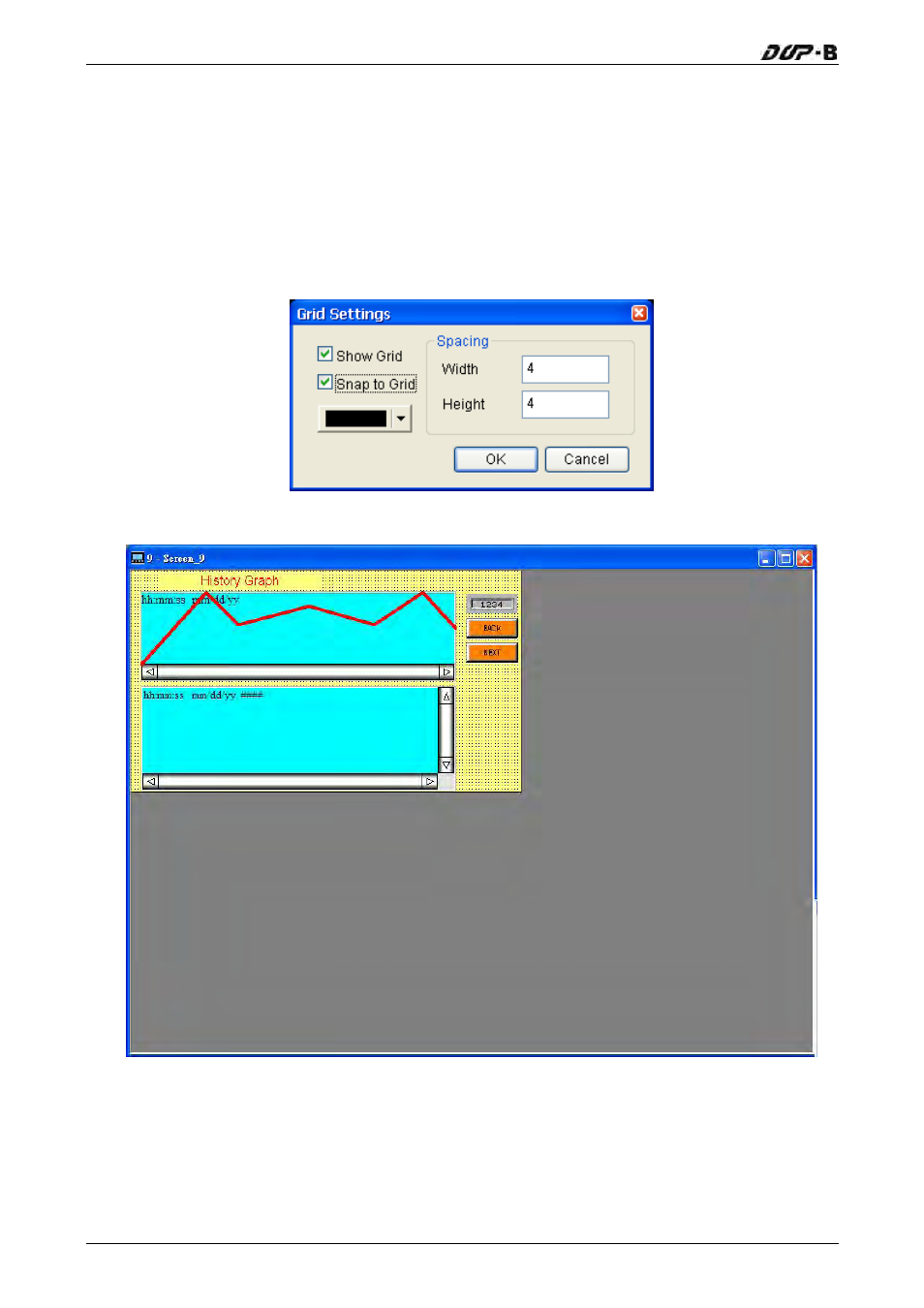

Fig. 3-7-13 Grid Setup dialog box
Fig. 3-7-14 Show Grid screen
