Delta Electronics DELTA DUP-B User Manual
Page 389

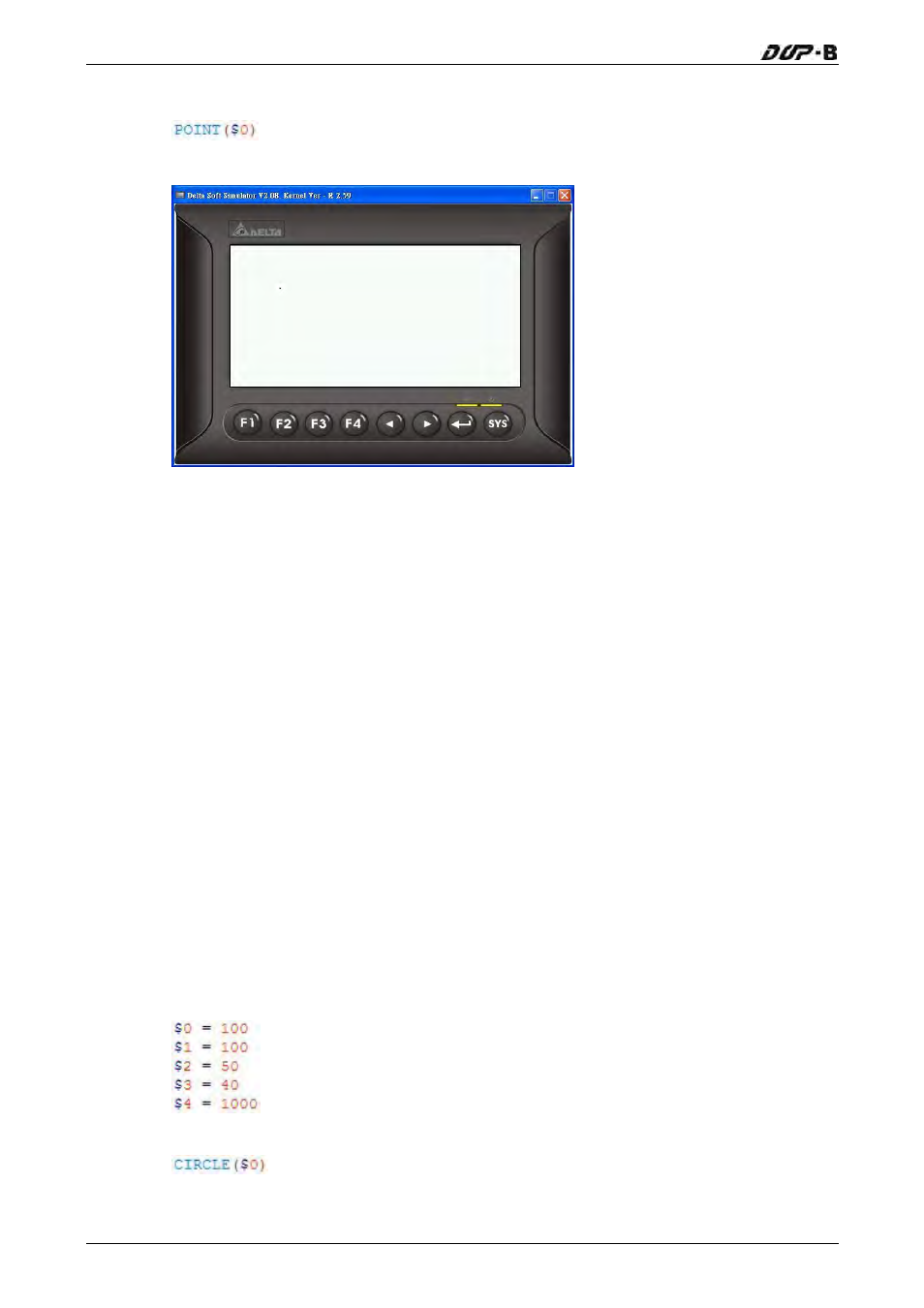

Chapter 3 Creating and Editing Screens
and the Screen Cycle Macro is set as
the user’s screen will look like the figure shown below.
CIRCLE (Draw an Ellipse)
Equation
RECTANGLE (Var1)
Explanation
This command is used to draw an ellipse on the screen.
Var1 is the X-coordinate of the center of the ellipse
Var1+1 is the Y-coordinate of the center of the ellipse
Var1+2 is the length of the ellipse
Var1+3 is the width of the ellipese
Var1+4 is the color of the ellipse
Remark
Var1 can be internal memory only.
Example
When the Screen Open Macro command is set as
and the Screen Cycle Macro is set as
3-368
Revision May, 2010
