Chapter 3 Creating and Editing Screens
3.11.6 Print
Typesetting
This function provides more efficient print layout management function. Please refer to the
descriptions and examples on the following pages.
Print Function
Printer setup
1. DOP-B series HMI supports the printer function via USB interface.
2. Select the connecting printer.

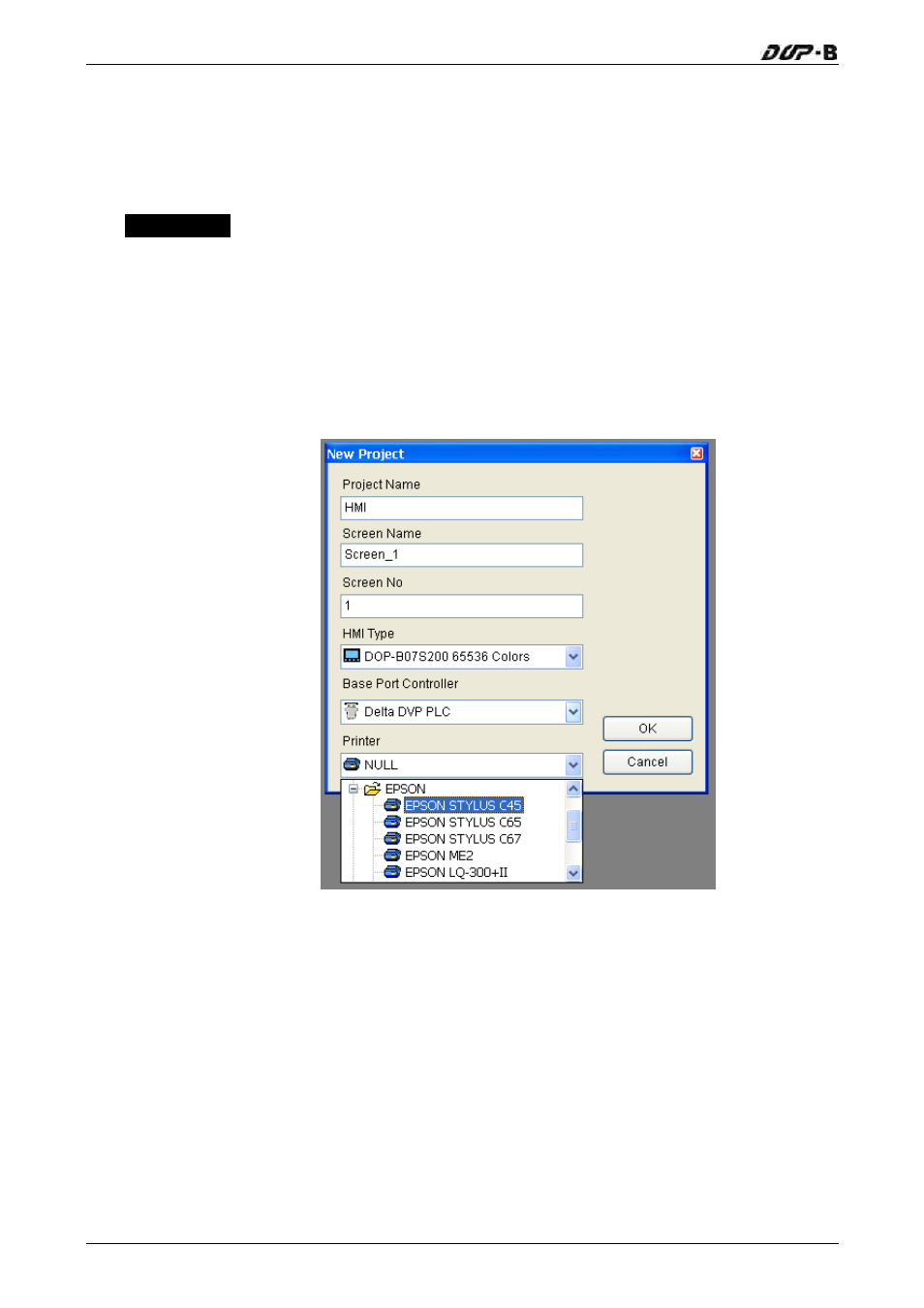

The user can click File > New to get into the New Project dialog box and select
the printer using the Printer drop-down list in New Project dialog box. Or click
Options > Configuration > Printer Setup to select a printer.
3. Printer Setup Configuration
Select Options > Configuration > Printer Setup to open the Printer Setup tab.
Use Printer Setup tab to configure the settings of printer, paper, quality and
margin, etc.
