Chapter 3 Creating and Editing Screens
Example

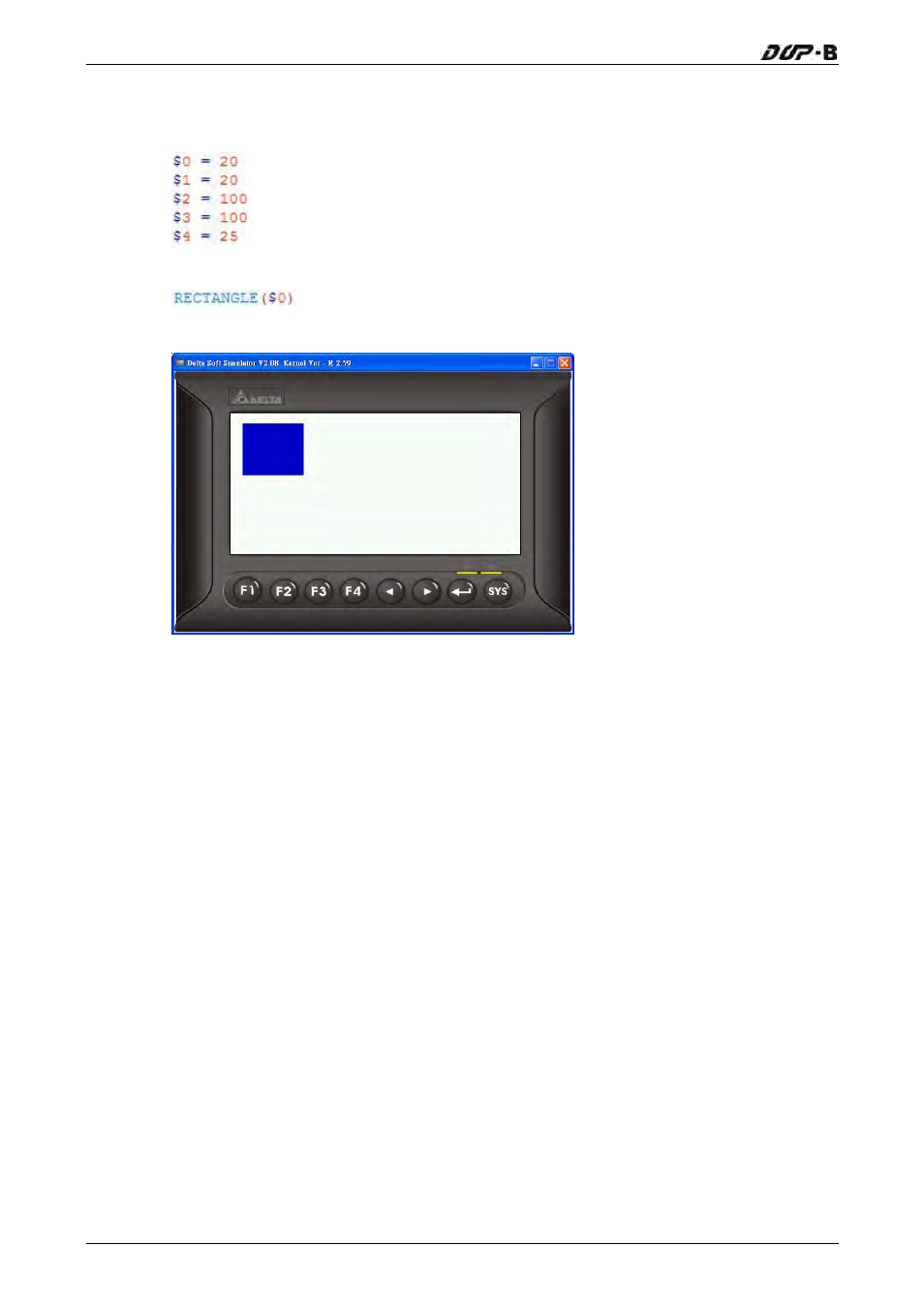

When the Screen Open Macro command is set as
and the Screen Cycle Macro is set as
the user’s screen will look like the figure shown below.
 LINE (Draw a Line)
Equation
LINE (Var1)
Explanation
This command is used to draw a line on the screen.
Var1 is the starting X-coordinate
Var1+1 is the starting Y-coordinate
Var1+2 is the ending X-coordinate
Var1+3 is the ending Y-coordinate
Var1+4 is the width of the line
Var1+5 is the color of the line
Remark
 Var1 can be internal memory only.
