Chapter 3 Creating and Editing Screens
3-124 Revision May, 2010
Property Description of Differential Bar Elements
Setting
For example, if the data length is set to Word, the data format is set to
Unsigned Decimal, standard value is set to 50, minimum value is set
to 0, maximum value is set to 100 and differential limit is set to 30,

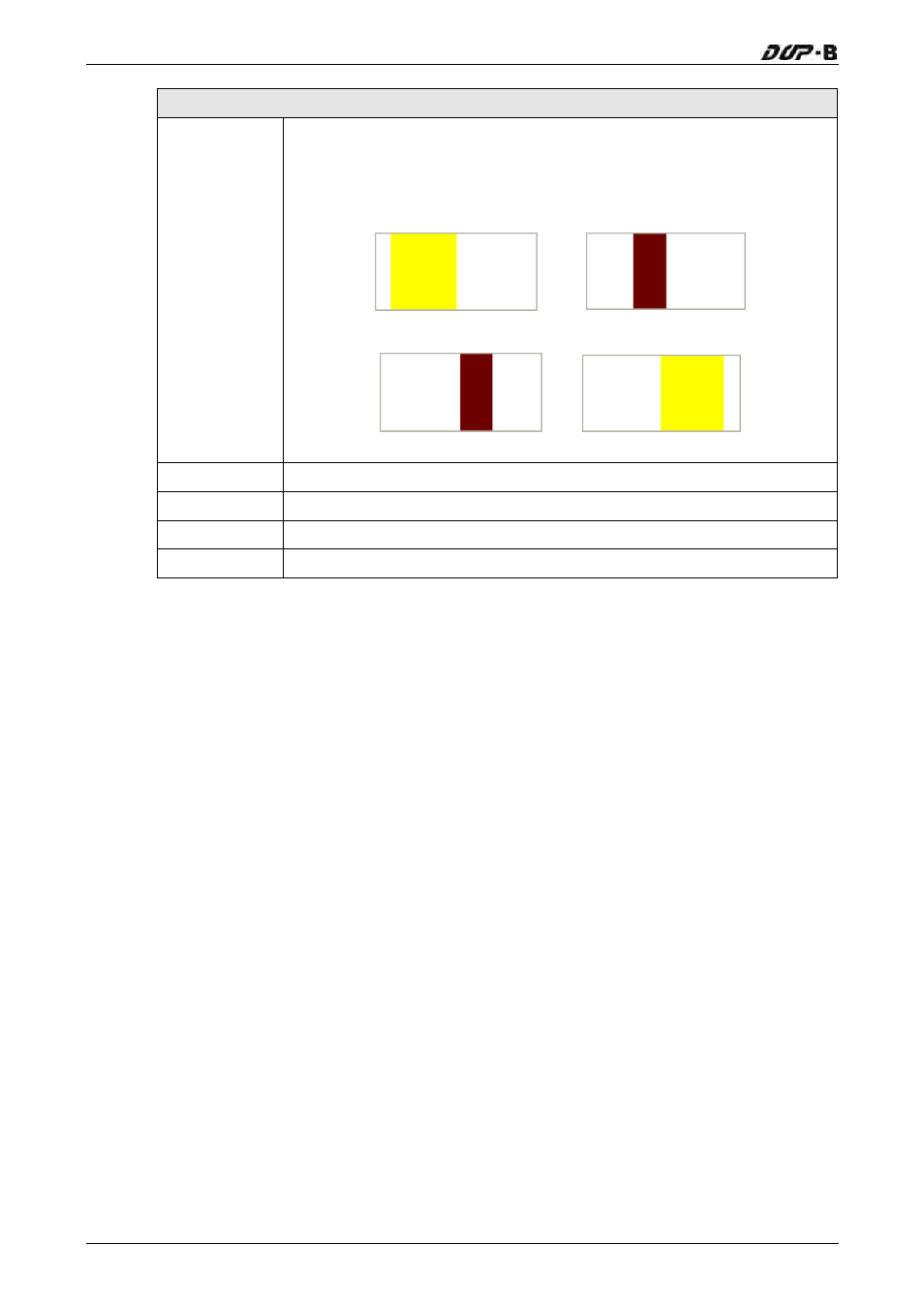

the differential bar element will be shown as the figures below:
When the value is 10 When the value is 30
When the value is 70 When the value is 90
X Used to set X coordinate
Y Used to set Y coordinate
Width Used to set the element width
Height Used to set the element height
