Chapter 3 Creating and Editing Screens
Revision May, 2010 3-211
3. 13 Screen Cycle Macro
r tion is selected, the Macro will be executed continuously once
ent
.9.14 Auxiliary Key
ser to determine the function of auxiliary keys in each screen.
Screen > Auxiliary Key
9.
When Sc een Cycle Macro func
the screen is displayed. (Macro will be executed continuously by the cycle time setting) For
details on how to use and edit macro commands, refer to section 3.1.14.
The user also can click the Screen Open Macro, Screen Close Macro and Screen Cycle
Macro options from the Property Table to enter intro Screen Open Marco editing environm
(Fig. 3-9-9).
3
DOP-B series HMI allows the u
The user can execute this function by clicking
. Auxiliary key setup for
each screen can be completed by pressing the auxiliary keys on HMI panel or on the screen
(Fig. 3-9-10).

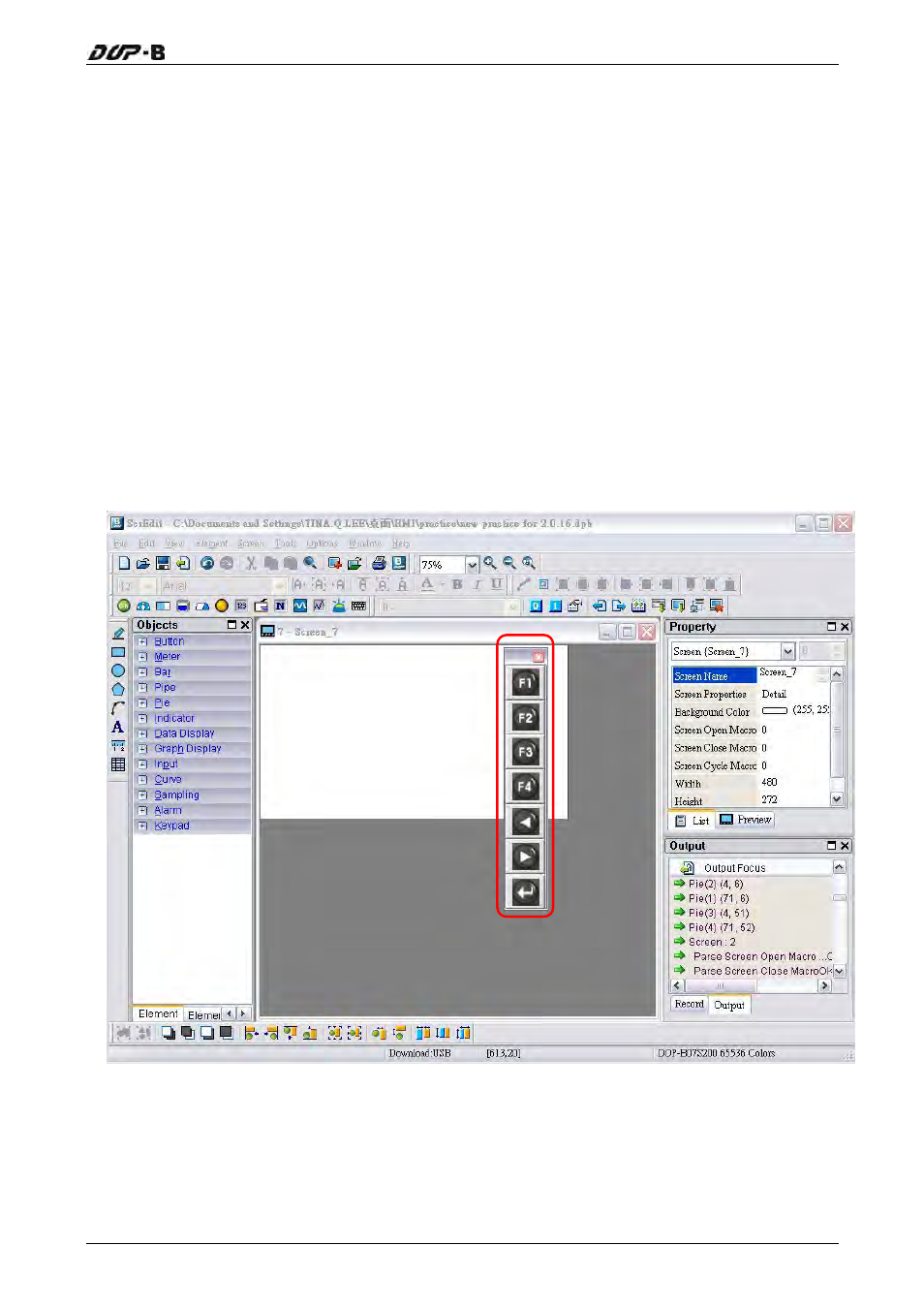

Fig. 3-9-10 Auxiliary Key setup
