Chapter 3 Creating and Editing Screens
Revision May, 2010
3-185
3.8.13 Alarm
Elements

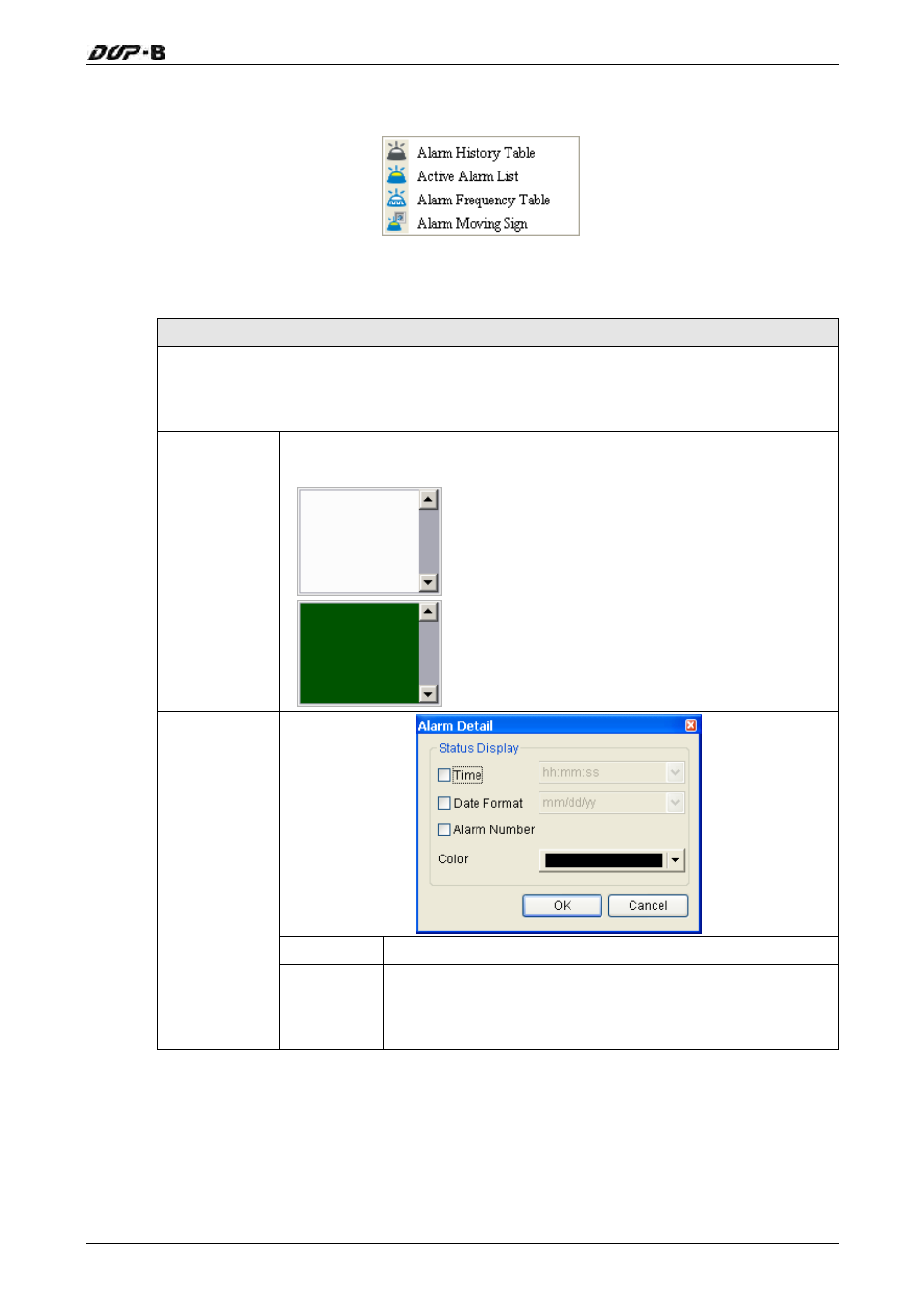

Fig. 3-8-30 Alarm Elements
3.8.13.1 Alarm History Table
Property Description of Alarm History Table Elements
HMI will monitor and read the read address in a fixed time automatically. If some
certain Bit contact of the address is ON or OFF, the alarm message will be converted to
Alarm History Table element and display on the screen.
Background
Color
The background color of the following two elements is set to white and
blackish green respectively.
The background color is set to white.
The background color is set to blackish green.
Time Format Provide HH:MM:SS, HH:MM two kinds of formats.
Setting
Date Format
Provide MM/DD/YY, DD/MM/YY, DD.MM.YY,
YY.MM.DD, YY/MM/DD, MM.DD, MM/DD seven kinds of
formats.
