Chapter 3 Creating and Editing Screens

Revision May, 2010

3-115

Property Description of System Function Buttons

Trigger

Trigger Type

The user can use this setting to trigger the designated controller
address to be ON before or after writing the setting value. Please
note that this function can only trigger the controller address to be
ON. If the controller address needs to be triggered again, the user
should set the address to be OFF manually.

This option is provided in Report List button only. When the user
selects a Report List button, the user can set this option in the
property table.

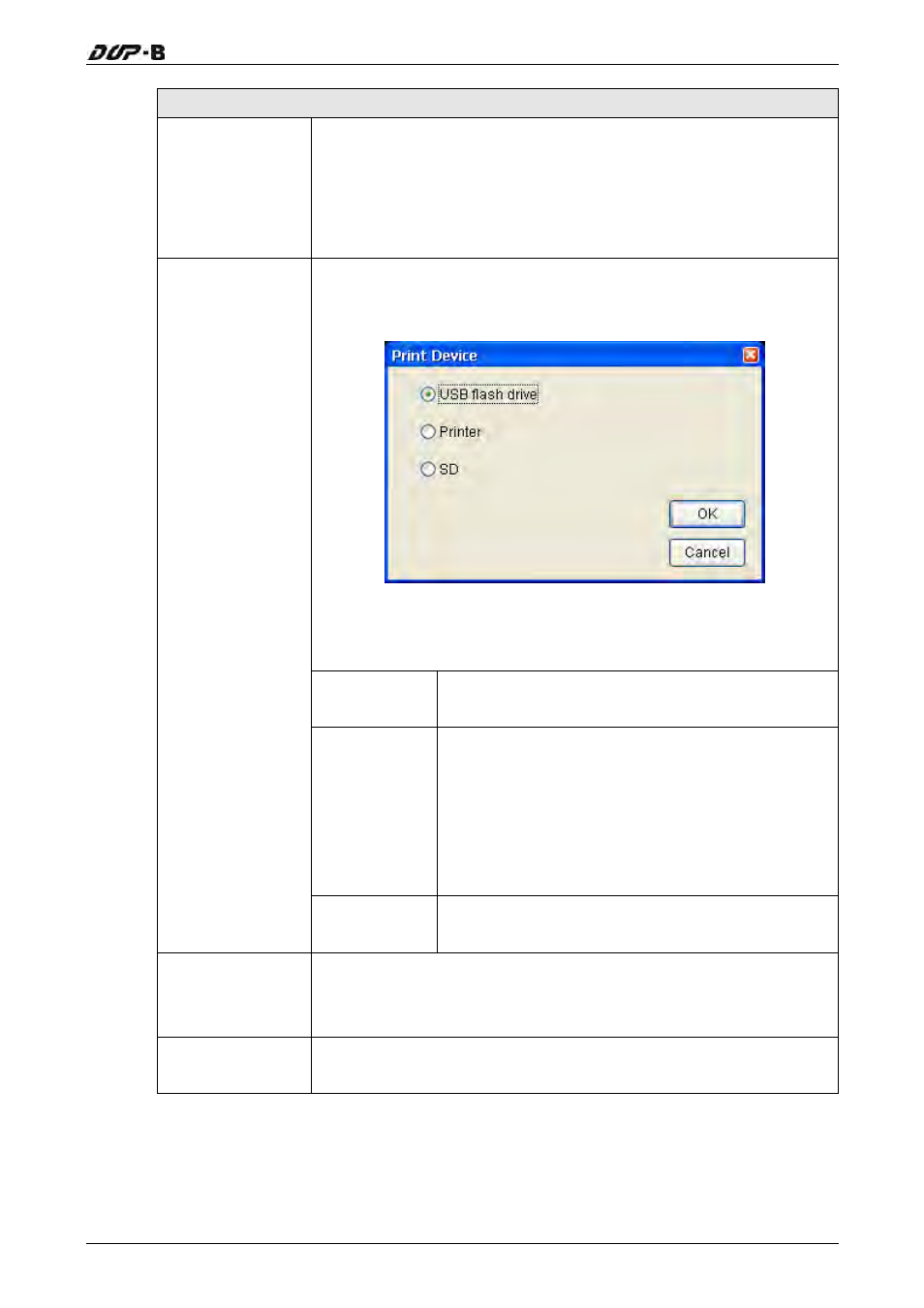

The Report Device window is shown as the figure above. The
Report Device can be USB flash drive (USB disk), Printer and SD
card.

USB flash drive

Output the history records and alarm data to USB
disk.

Printer

HMI will check if Print Typesetting function is set
or not first. If Print Typesetting function is set
already, the screen data will be output to the
printer directly. If HMI detects the Print
Typesetting function is not set yet, the Hard Copy
function will be enabled.

Report Device

SD

Output the history records and alarm data to SD
card.

User Security Level

Use this option to set the user priority for pressing this element.
Only the priority that is equal to or higher than the current setting
can use this element.

InterLock Address

InterLock Level

When InterLock Address is set to be ON or OFF (this is determined
by the property of “InterLock Level”), this button can be enabled.
