Chapter 3 Creating and Editing Screens
3.5 Menu Bar and Toolbar (File)
3.5.1 New

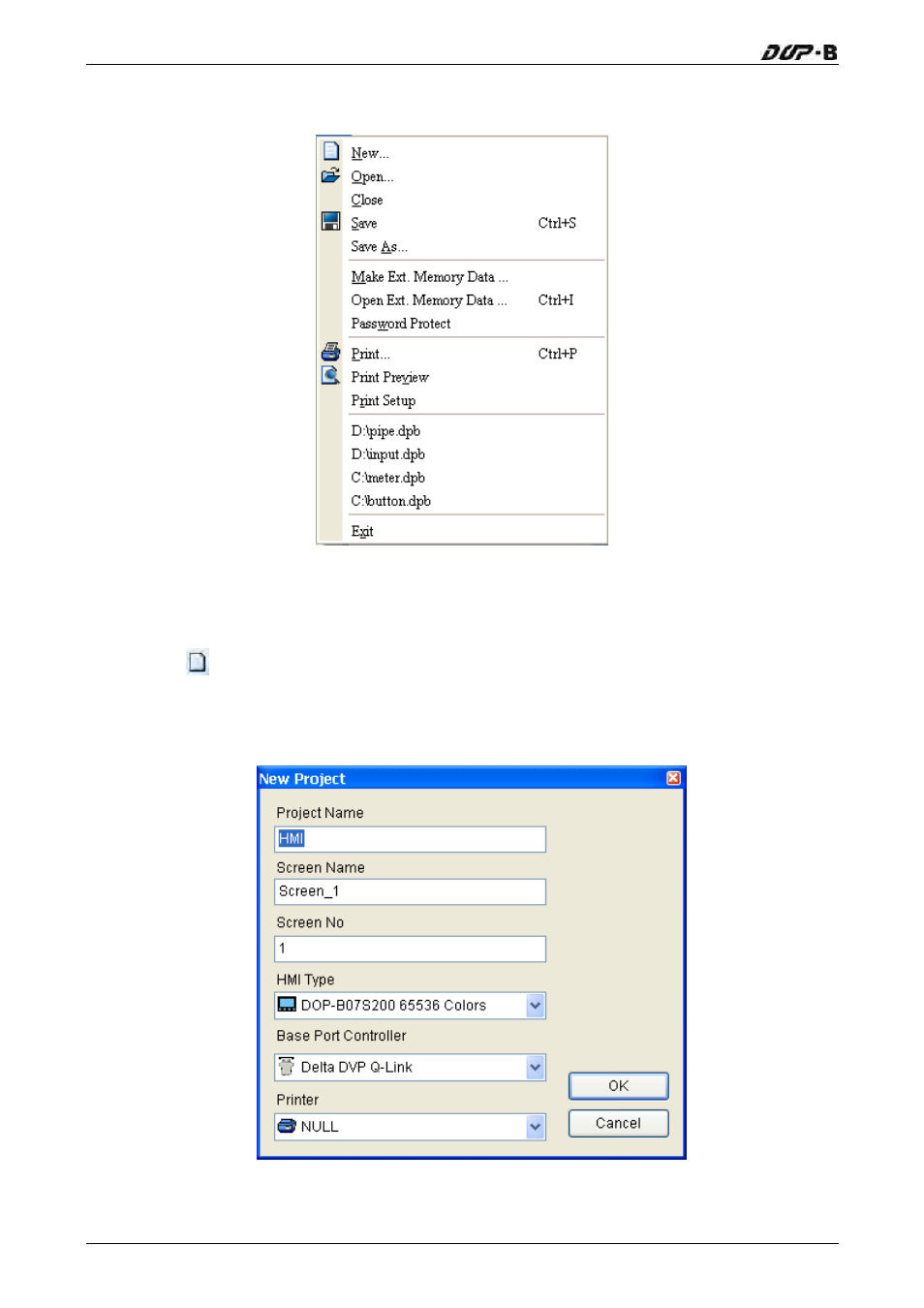

Create a New Project. Creates a new project by choosing File > New (Fig. 2.3.2) or clicking the
New icon from toolbar (Fig. 2.3.3), or pressing Ctrl + N.
If this is the first time use and there is no old project, the following dialog box (Fig. 3-5-1) will
show up for the user to input project name, screen name, screen number, HMI type and
connecting base port controller after creating a new project.
Fig. 3-5-1 New project dialog box
