Chapter 3 Creating and Editing Screens
3.10.6 Download Recipe
To download the recipe data only, select Tools > Download Recipe. The file extension name
of a recipe file is .rcp (Fig. 3-10-9).

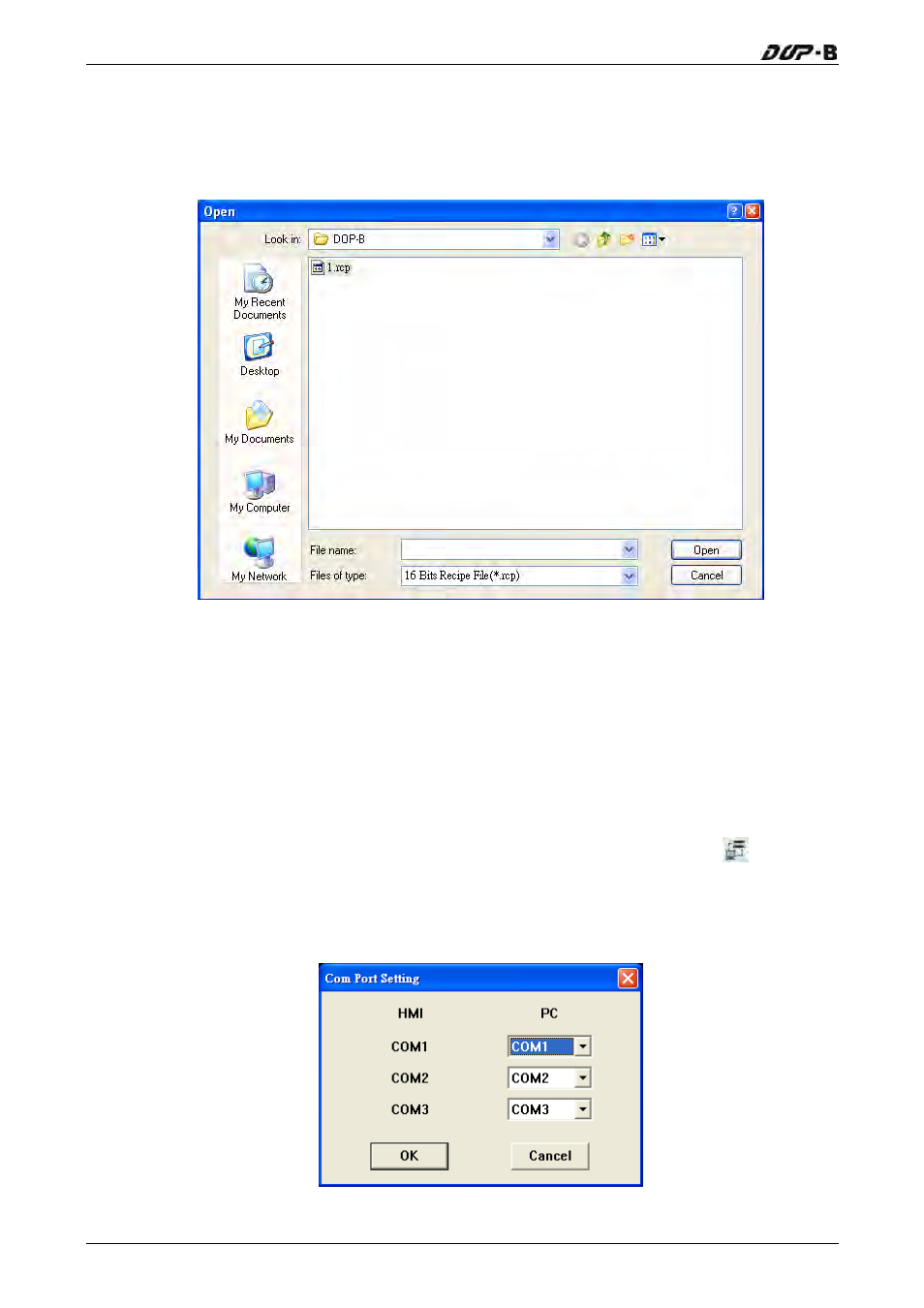

Fig. 3-10-9 Download the designated recipe data
3.10.7 On Line Simulation
This command simulates DOP-B series HMI by computer but HMI should also connect to PLC
first to drive PLC by PC simulation through PC communication port. Therefore, the user
cannot execute the function of On Line Simulation without connecting PLC. But the user can
execute the function of Off Line Simulation without connecting PLC. On Line Simulation
function can execute by clicking Tools > On Line Simulation or clicking icon directly or
pressing Ctrl + F4. Before executing On Line Simulation, the system will ask the user to set
the communication port for connecting to PLC first (Fig. 3-10-10). For On Line Simulation
Screen, the user can refer to Fig. 3-10-11.
Fig. 3-10-10 COM Settings
