Chapter 3 Creating and Editing Screens
Example 2:
In Table 3-3-11, suppose that it is built in the first group (RCPG=1). The size L is set to 2 and
the number N is set to 3 with the recipe data. Thus the layout of the recipe data will be shown
as Table 3-3-12, i.e. RCP0~RCP7 are occupied. When RCPNO is set to 3 and the recipe buffer
area will show the 3
rd number of recipe data.
RCP0
14
RCP1
15
RCP2
10
RCP3
11
RCP4
12
RCP5
13
RCP6
14
RCP7
15
Recipe Buffer
Area
RCPNO = 3
3rd Number of
Recipe Data

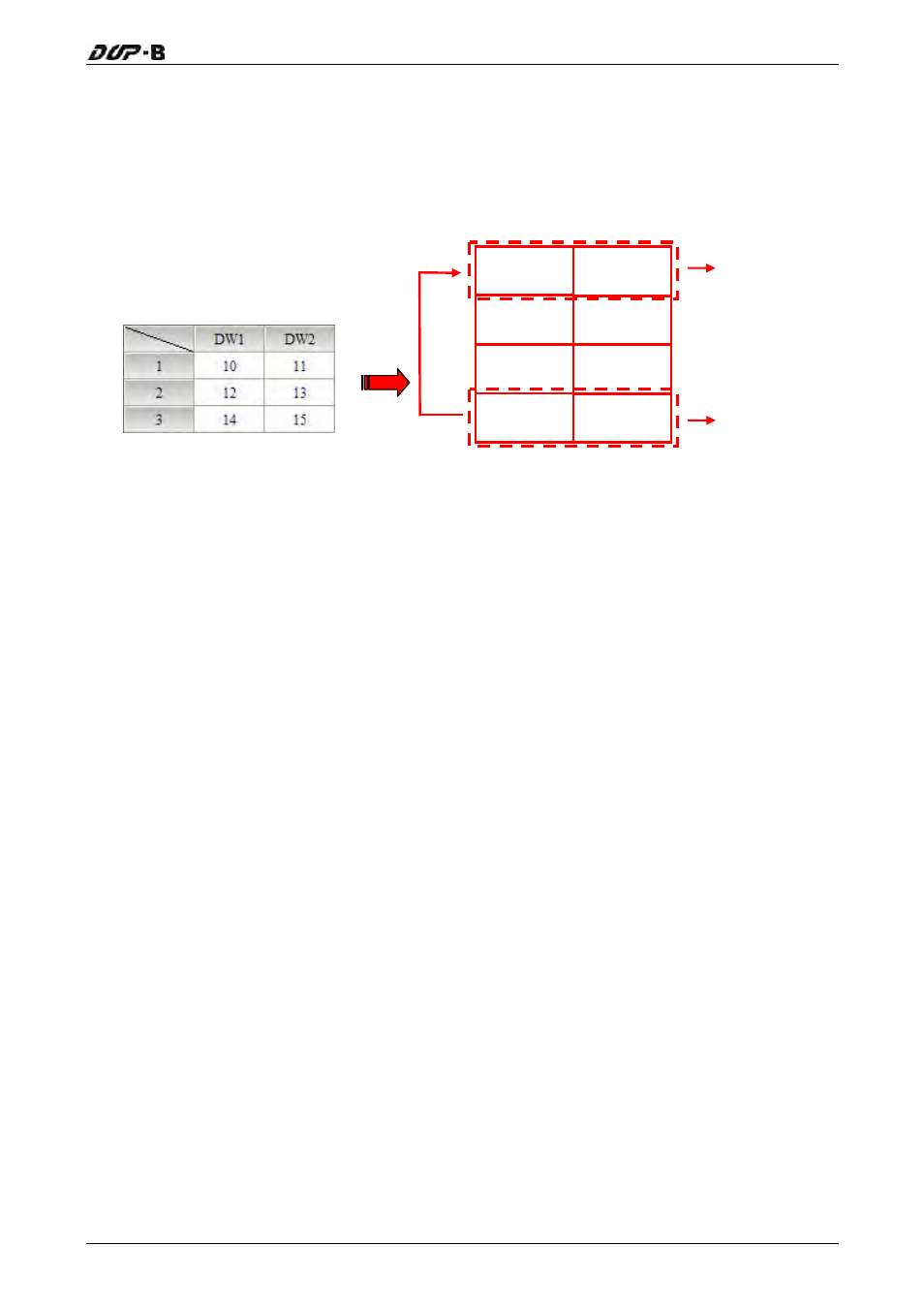

Table 3-3-11 Recipe Table Table 3-3-12 Layout of Recipe Registers
Revision May, 2010 3-23
