Chapter 4 Examples
Click Options > 32bitss recipe, it can open 32bits Recipe Setup dialog box. In this example,
two recipe tables are created, the write address is set to 1@D100 and the non-volatile area is set
to HMI. In the 1st recipe table, set the Length to 5 and set the Group to 5. In the 2nd recipe table,
set the Length to 5 and set the Group to 3.

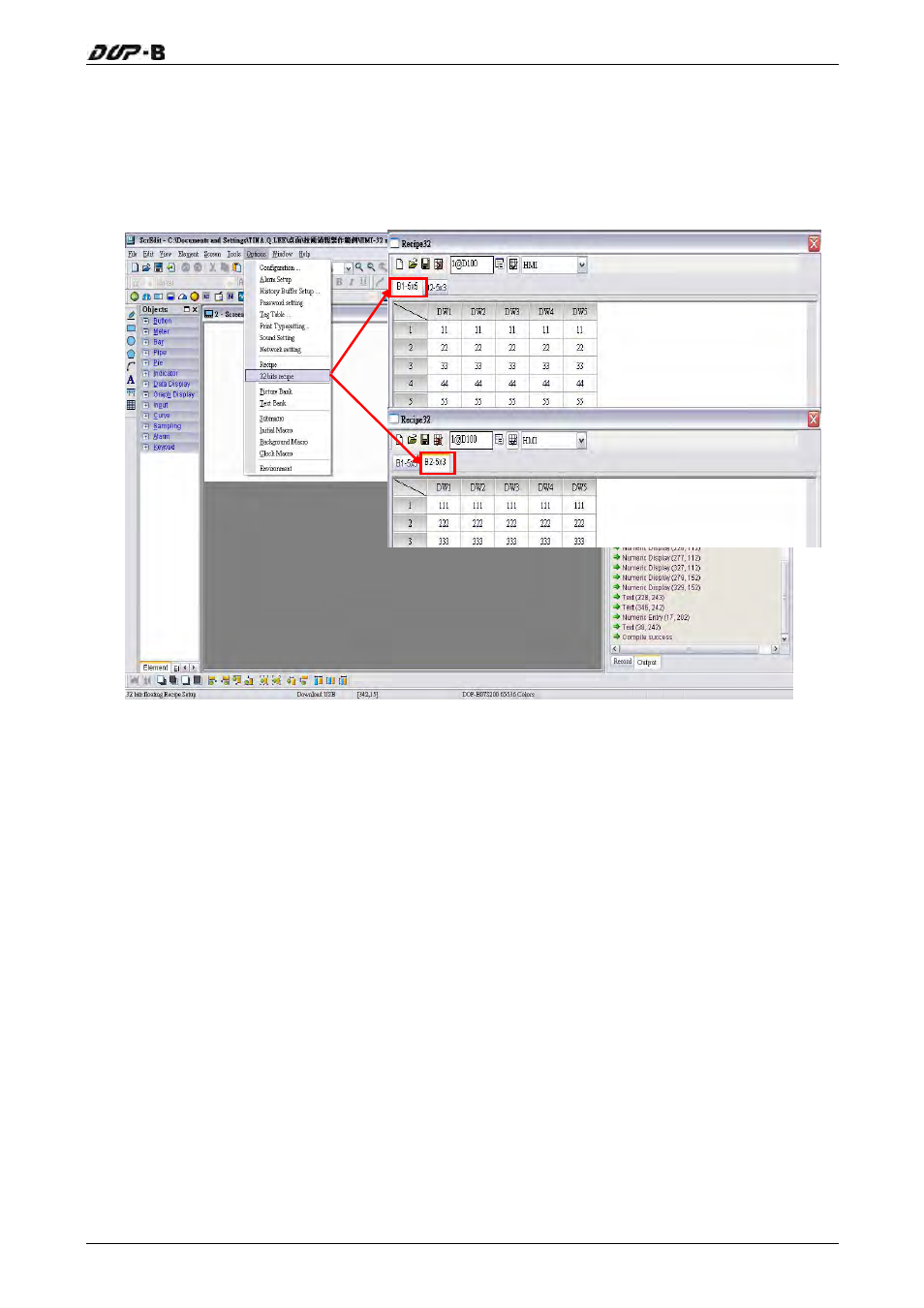

After pressing OK button, the user’s screen will look like the figure shown below.
Then, click Save icon to complete the settings.
Next, click Options > Configuration, select Control Block tab. To control the read and write
operation of recipes, in this example, Control Address is set to 1@D0 and the Length is set to 8.
After complete the above settings, the user’s screen will look like the figure shown below.
Revision May, 2010
4-7
