Chapter 3 Creating and Editing Screens

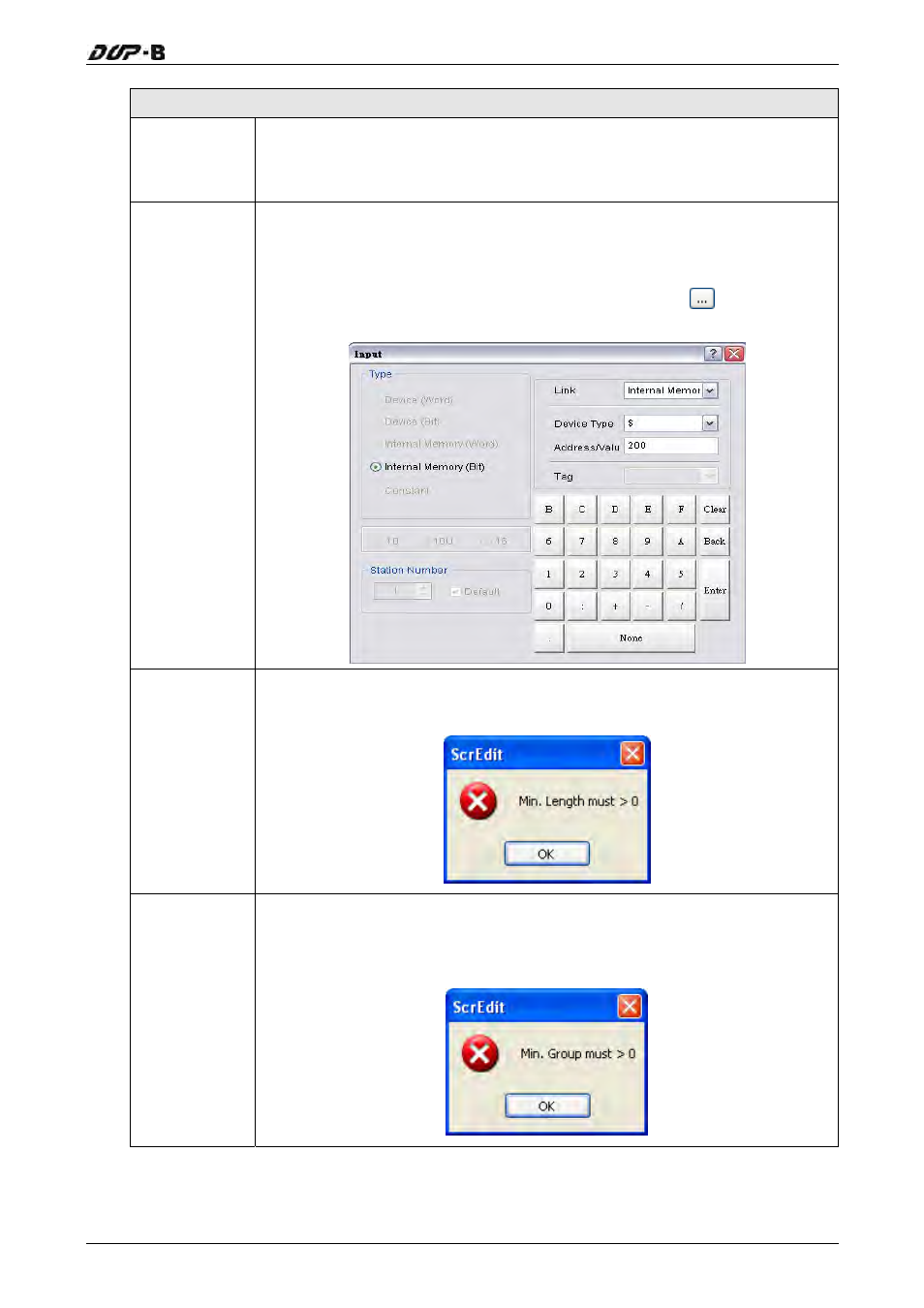

Recipe Setup dialog box
Recipe
Retained
(Non-volatile)
Using this option can enable HMI to save recipe data in SRAM when the
power is turned off.
The user can input the starting address of recipe data here. It can accept
the address in PLC input format and internal memory format. (Please note
that if the recipe address is set to D4095, the recipe address plus the data
length cannot exceed D4095.) The user also can click
button to get
the following address input dialog box to input the starting address.
Address
Length
Set the recipe length. The unit is Word and it should be set to more than 0.
Otherwise, the following dialog box will display on the screen.
Grroup
Set group number of recipe. It is convenient for the user to use recipe by
switching. The group number should be set to more than 0. Otherwise,
the following dialog box shown as Fig. 2.8.14 will display on the screen.
Revision May, 2010
3-255
