Chapter 3 Creating and Editing Screens
3. Enter the project name, screen name, screen No. and select connected HMI, controller or
printer. Then, click OK. It can create a new project in Screen Editor software program as
shown in the following (Fig. 3-2-5).

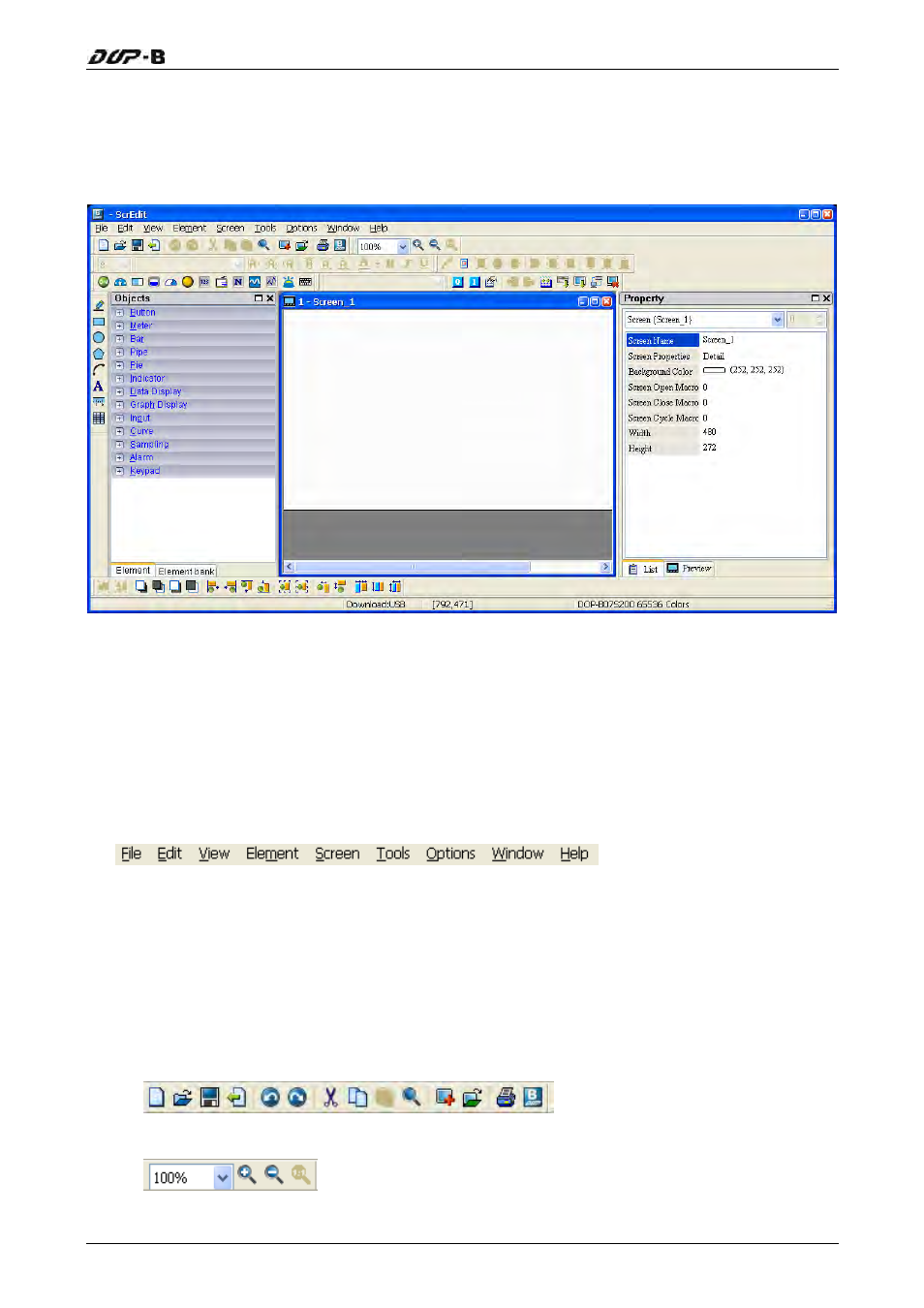

Fig. 3-2-5 New project screen of Screen Editor
There are five parts in the following for editing window of Screen Editor software program.
Menu Bar
There are nine functions for selection: File, Edit, View, Element, Screen, Tools, Options,
Window, and Help.
Toolbar
Toolbar (Fig. 3-2-6) is like those toolbar in Windows® program. It is easy to use for editing
and the user can arrange its position freely. For example, the user can move the Toolbar
to the left side of the screen. Also, the user can arrange the toolbar position by their
usage. The followings are the available toolbar on Screen Editor software program.
1. Standard Toolbar
2. Zoom Toolbar
