Chapter 3 Creating and Editing Screens
Revision May, 2010
3-175

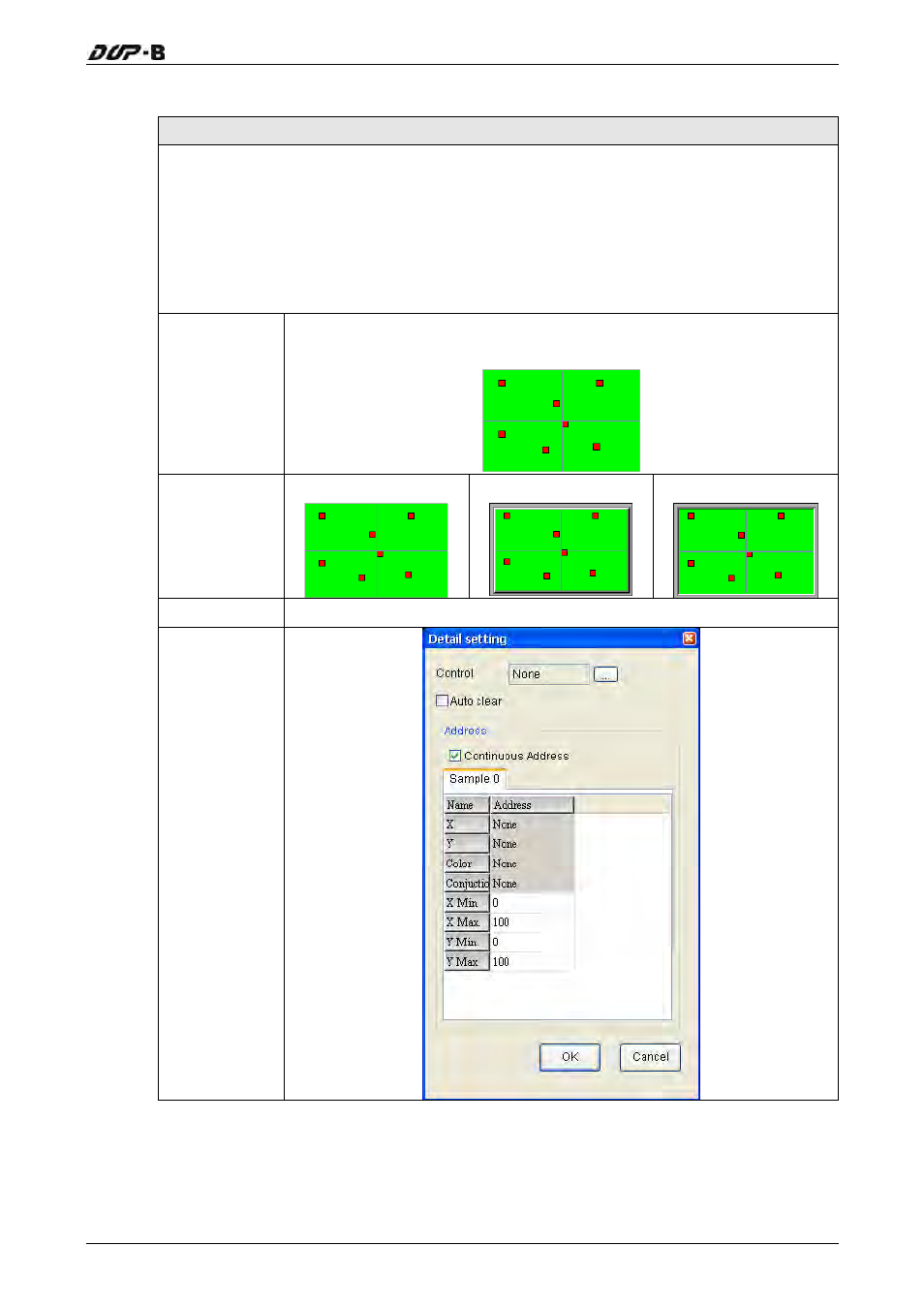

3.8.11.3 X-Y Distribution
Property Description of X-Y Distrubution Elements
HMI will read and convert non-
consecutive or consecutive data of the setting
addressto a X-Y distribution graph on the screen. This function is used to read the
values of the internal memory addresses and display on HMI screen statically. After
setting, the user needs to set the specific address of the control block to trigger the
drawing and clear operation of the trend graph, i.e. Trend Draw and Trend Clear. For
the settings of the control block, please refer to section 3.4 in Chapter 3.
Border Color
Background
Color
The background color of the element below is set to green and its
border color is set to gray.
Standard Raised Sunken
Style
Sample
1~4 X-Y distribution point display can be set.
Setting
