Chapter 3 Creating and Editing Screens
Revision May, 2010 3-307

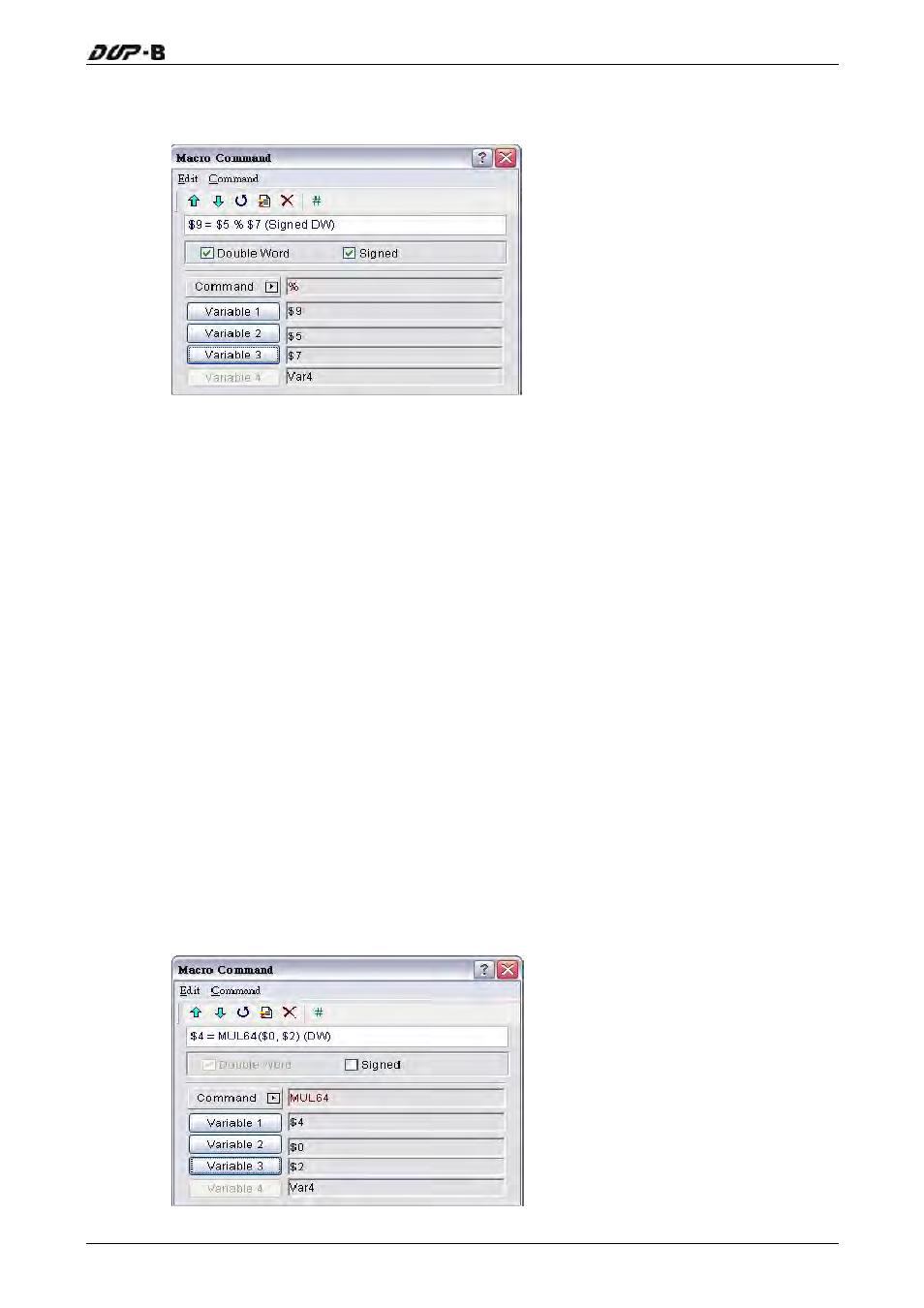

Divide $5 by $7 and store the remainder value in $9 (this is an operation of signed
32-bit data).
 64-bit Multiplication)
Var1 = MUL64 (Var2, Var3)
the multiplication of Var2 and Var3, and store the multiplication result in
Var1.
ORD.
e internal memory only. Var2 and Var3 can be internal memory or
constant.
0 by $2 and store the value in $4 (this is an operation of
unsigned 32-bit data).
MUL64 (
Equation
Explanation
Perform
Remark
 This is the operation of 32 Bit data.
 The calculation result can be stored as signed or unsigned DW
 Var1 occupies 4 Words. Var2 and Var3 occupy 2 Words.
 Var1 can b
Example
Multiply the value of $
