Chapter 3 Creating and Editing Screens
Revision May, 2010 3-119

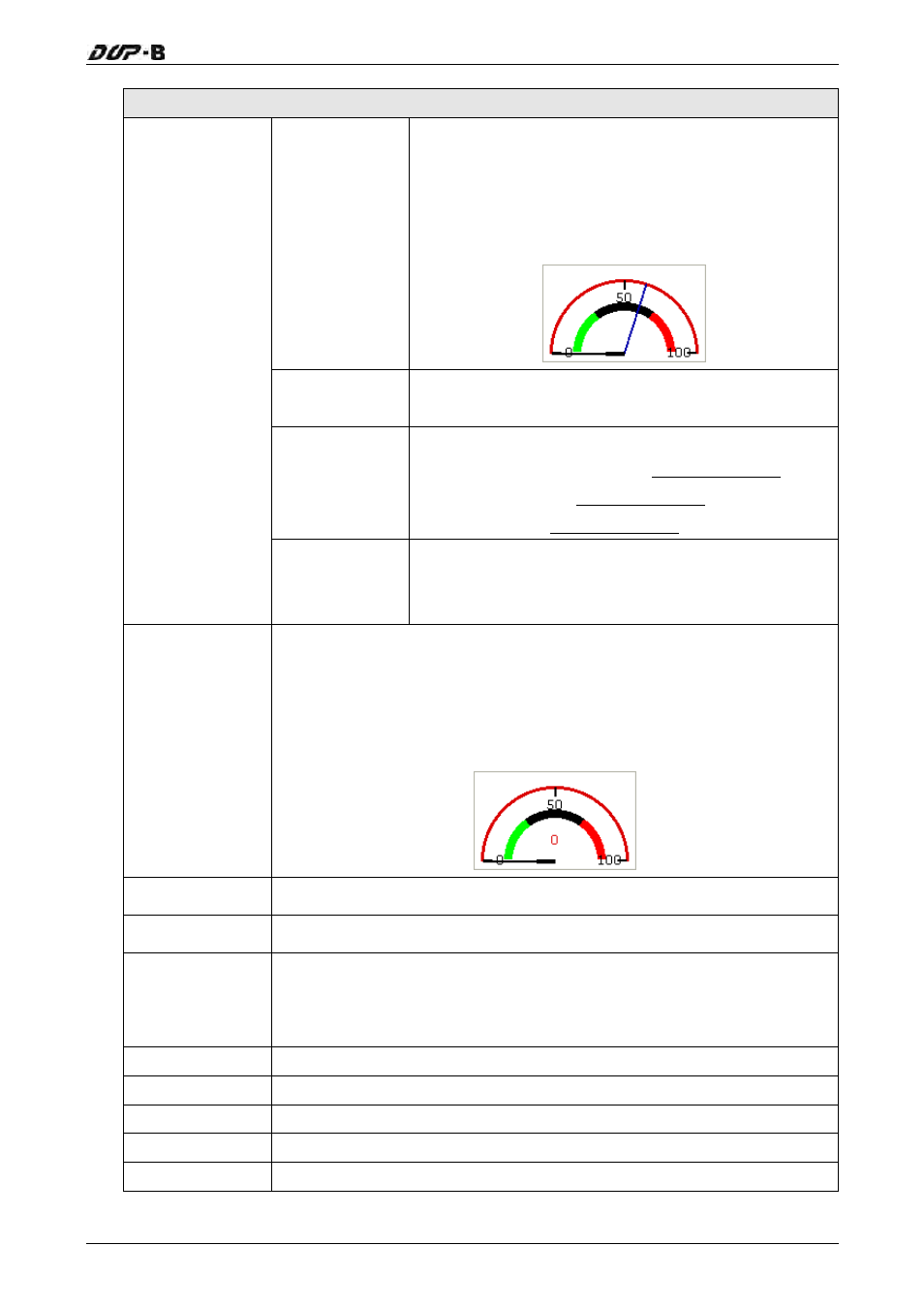

Property Description of Meter Elements
Target Value
Color
The user can decide if the target value display or not
by using this option. If this option is set, the target
value and its color set by the user will display just like
the figure shown below: (Here we set the target value
is 60 and its color is in blue.)
Ranges (Enable
range setting) Please refer to the description of Low & High Region
Color.
Variable
target/range
limits
When the target value and low & high limit is a variable
value, the low limit address is Read Address+1, the
high limit address is Read Address+2 and the address
of target value is Read Address+3.
Setting
Integral Digits
Fractional Digits
Use this option to determine the digit number of
integer and decimal fraction. The digit number is not a
real digit number value. It is only the display format.
Low Region Color
High Region Color This option is available and displayed in the property table only when
the “Ranges” option in the Detail Setup dialog box is selected. If the user
sets the low limit value is 30 and the color of low limit region is in green,
and then set the high limit value is 70 and the color of high limit region
is in red, the meter element will be shown as the figure below:
Stitch Color Set the stitch color of the meter element.
Grid Color Set the grid color of the meter element.
Scale
Region
Number
It is used to set the scale region number of the meter element. The user
can use the up or down buttons to increase or decrease the scale region
number. The setting rang is within 1 ~ 10.
Rule Color Set the rule color of the meter element.
X Used to set X coordinate
Y Used to set Y coordinate
Width Used to set the element width
Height Used to set the element height
