Chapter 3 Creating and Editing Screens

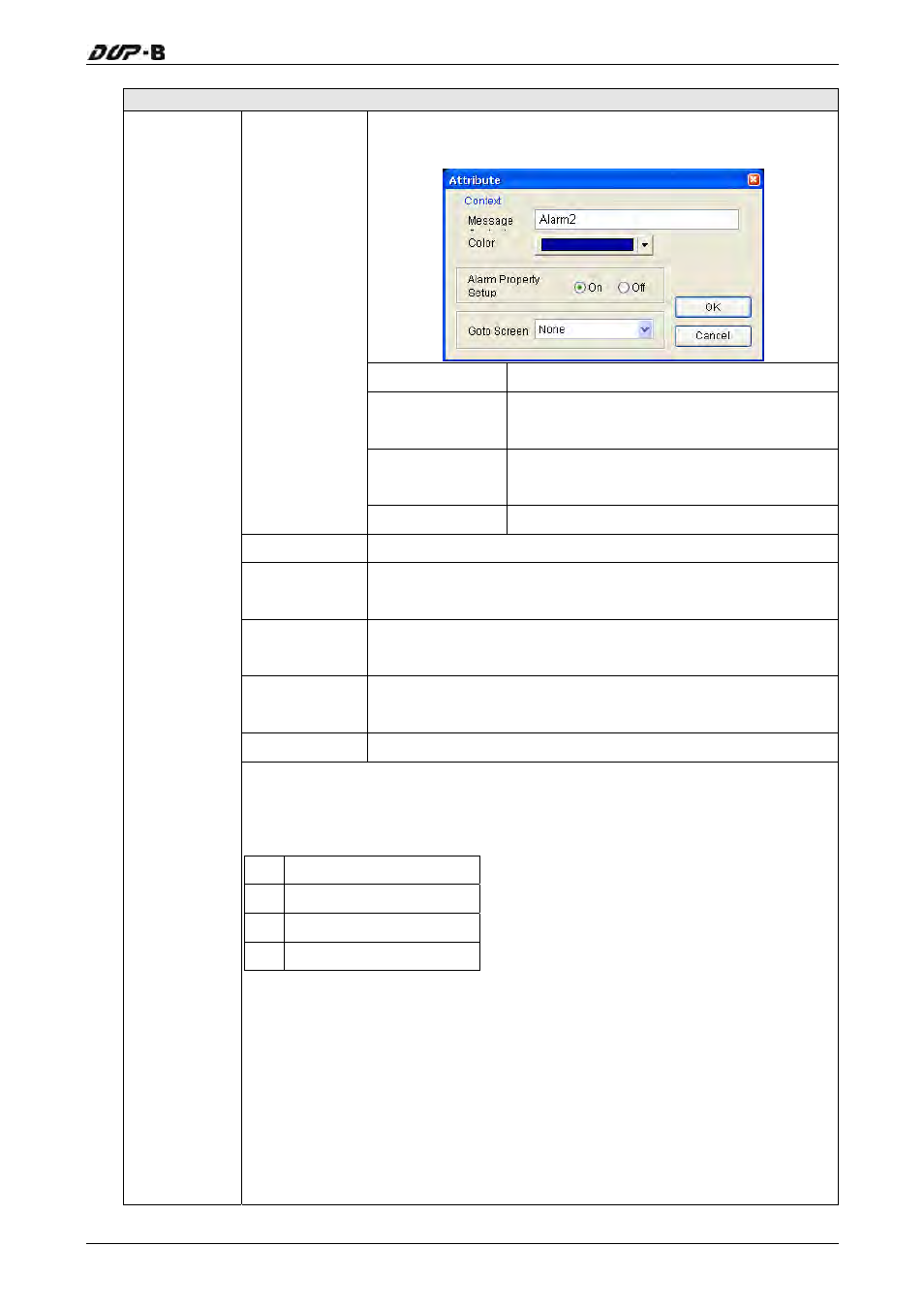

Alarm Setup Dialog Box
The following Alarm Property Setup dialog box will display
after double clicking the row.
Message Display message when an alarm occurs.
Color
Display message color when an alarm
occurs.
Alarm Property
Setup Use this option to determine if the Bit is
On or Off when an alarm occurs.
Alarm Property
Setup
Goto Screen Display screen when an alarm occurs.
Delete Delete the alarm message contents.
Modify
Modify the alarm message contents. The user also can
double click the mouse to perform this function.
Import
Import the Alarm Describe File into the alarm message
contents table.
Export
Export the alarm message contents from HMI and convert
them to be Alarm Describe File.
OK End the editing of alarm message contents.
Alarm Setting
The calculation method of the size of the alarm history file is as follows:
   
Bytes d Bytes c N b Bytes a Bytes
Size File Actual 6 2 6     ) ( ) ( ) ( ) (
a Time and Date Data
b Alarm Data
c Sampling Points
d Data File Symbol
Example:
If Max. Records is set to 100, and the time and date is recorded, the
required capacity for saving alarm data is:
[(6 Bytes + 2 Bytes) × 100] + 6 Bytes= 806 Bytes
If Max. Records is set to 100, and the time and date is not recorded, the
required capacity for saving alarm data is:
(2 Bytes × 100) + 6 Bytes = 206 Bytes
