Chapter 4 Examples
4.6 How to Use Real Image Element

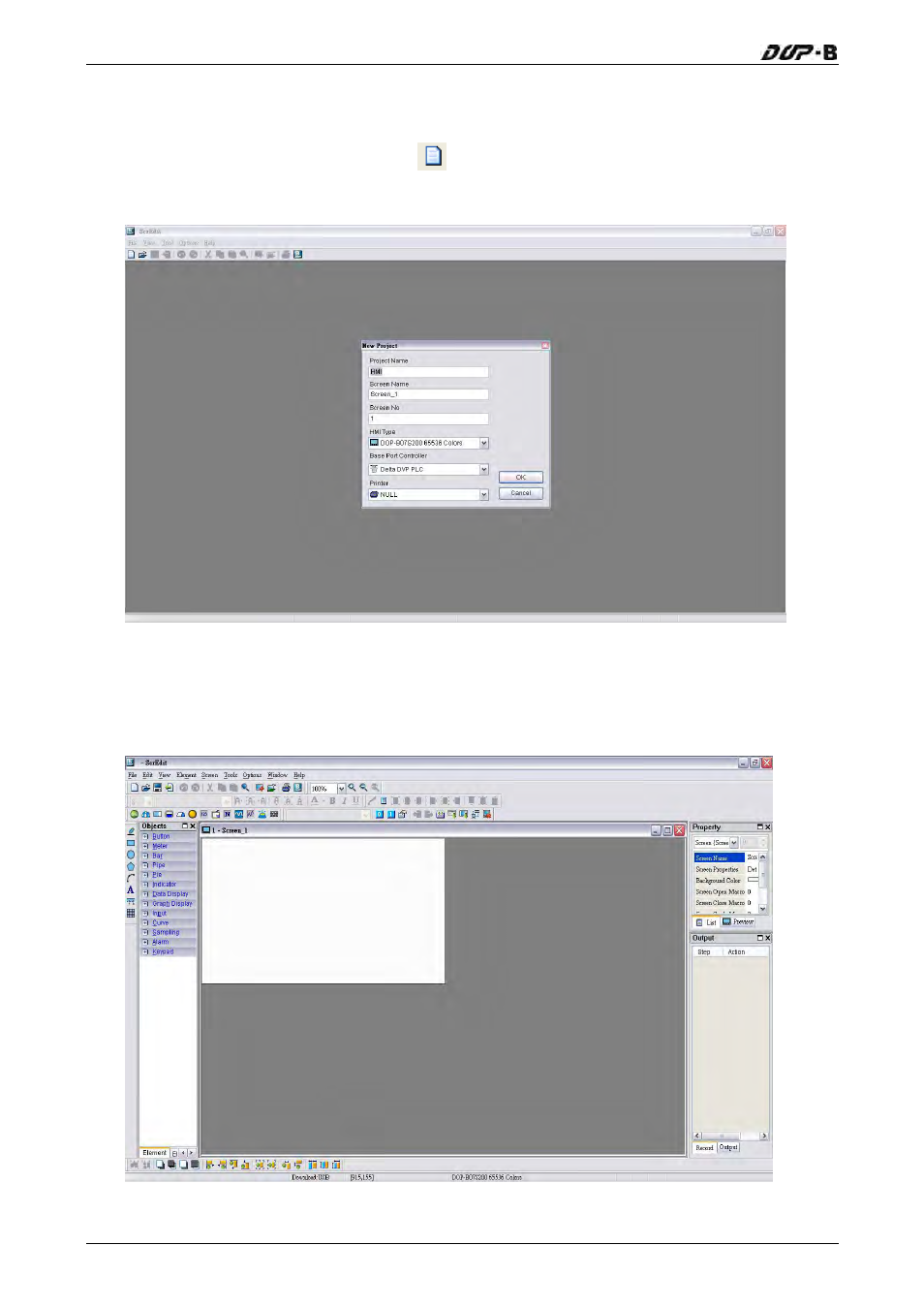

Create a new project first. After pressing
or click File > New, it can create a new project
and the user will get a dialog box as shown in the following.
Enter the project name, screen name, screen No. and select connected HMI, controller or printer.
Then, click OK. It can create a new project in Screen Editor software program as shown in the
following.
4-28
Revision May, 2010
