Chapter 3 Creating and Editing Screens
3.11.8 32 bits Recipe
32 bits recipe function provides the user to save 32 bits data. The data format includes
Signed Decimal, Unsigned Decimal and Floating (The total of Integral and fractional digits
cannot exceed 7 digits). To enable this function, the user can click Options > 32 bits
recipe.

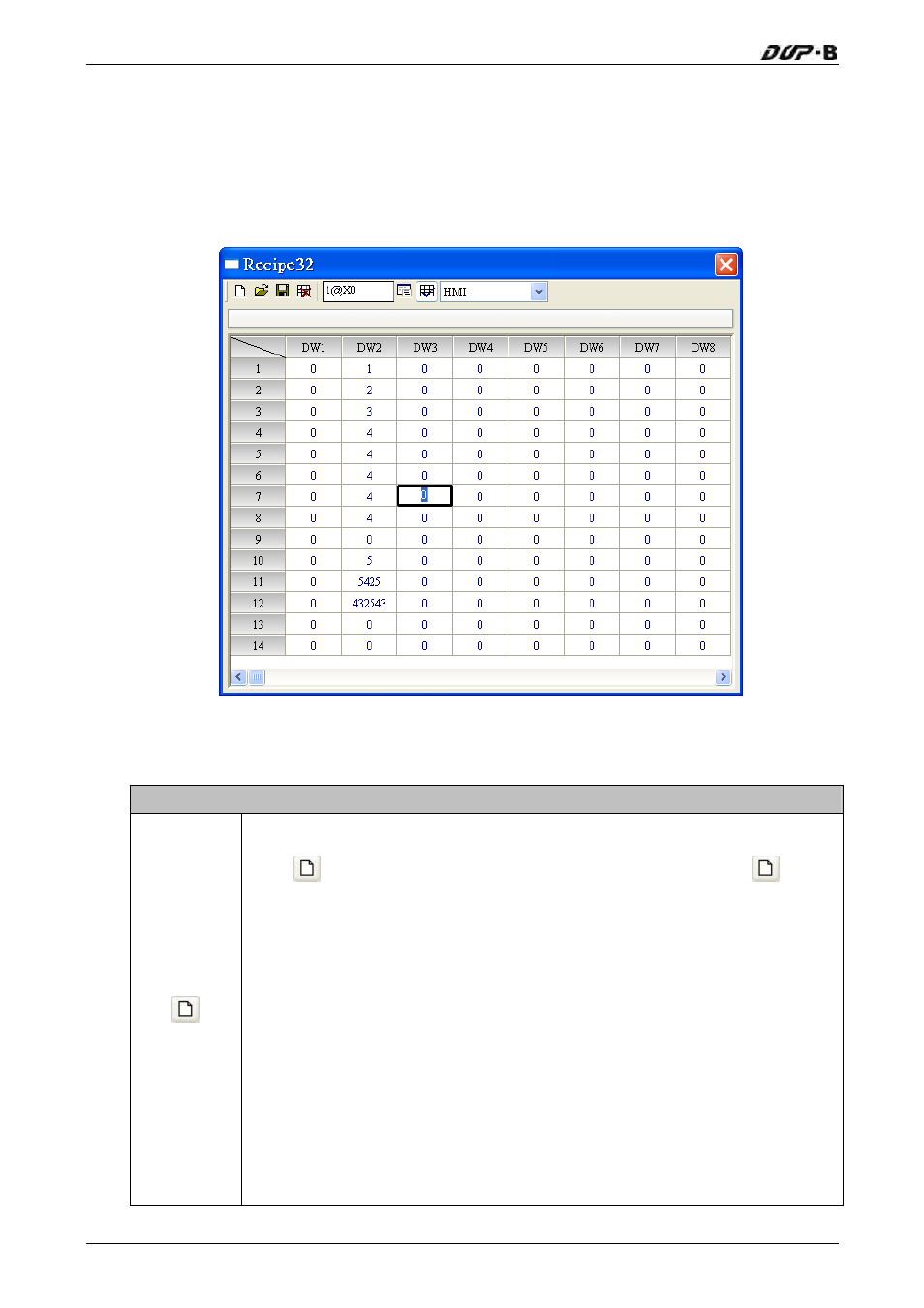

Fig. 3-11-3 32 bits recipe dialog box
32 bits recipe dialog box
New: Create a new 32 bits floating recipe file
Press to create a new 32 bits floating recipe. After clicking , a 32
bits recipe setup dialog box will display and the user can use it to set the
settings of a 32 bits recipe. The user can determine the recipe storage
address, the length and group number of the recipe, the memory format,
and the integer & fractional digit number of the recipe data. There are three
kinds of memory format provided, including Unsigned Decimal, Signed
Decimal and Floating. Integer and fractional digit number cannot be
selected when the memory format is set to Unsigned Decimal and Signed
Decimal. These two options are only available when the memory format is
set to Floating. But the total of the Integer and fractional digit number
cannot exceed 7 digits. For the number of the 32 bits recipe, up to 255
recipes can be set in a 32 bits recipe file.
