Chapter 3 Creating and Editing Screens
3-126 Revision May, 2010

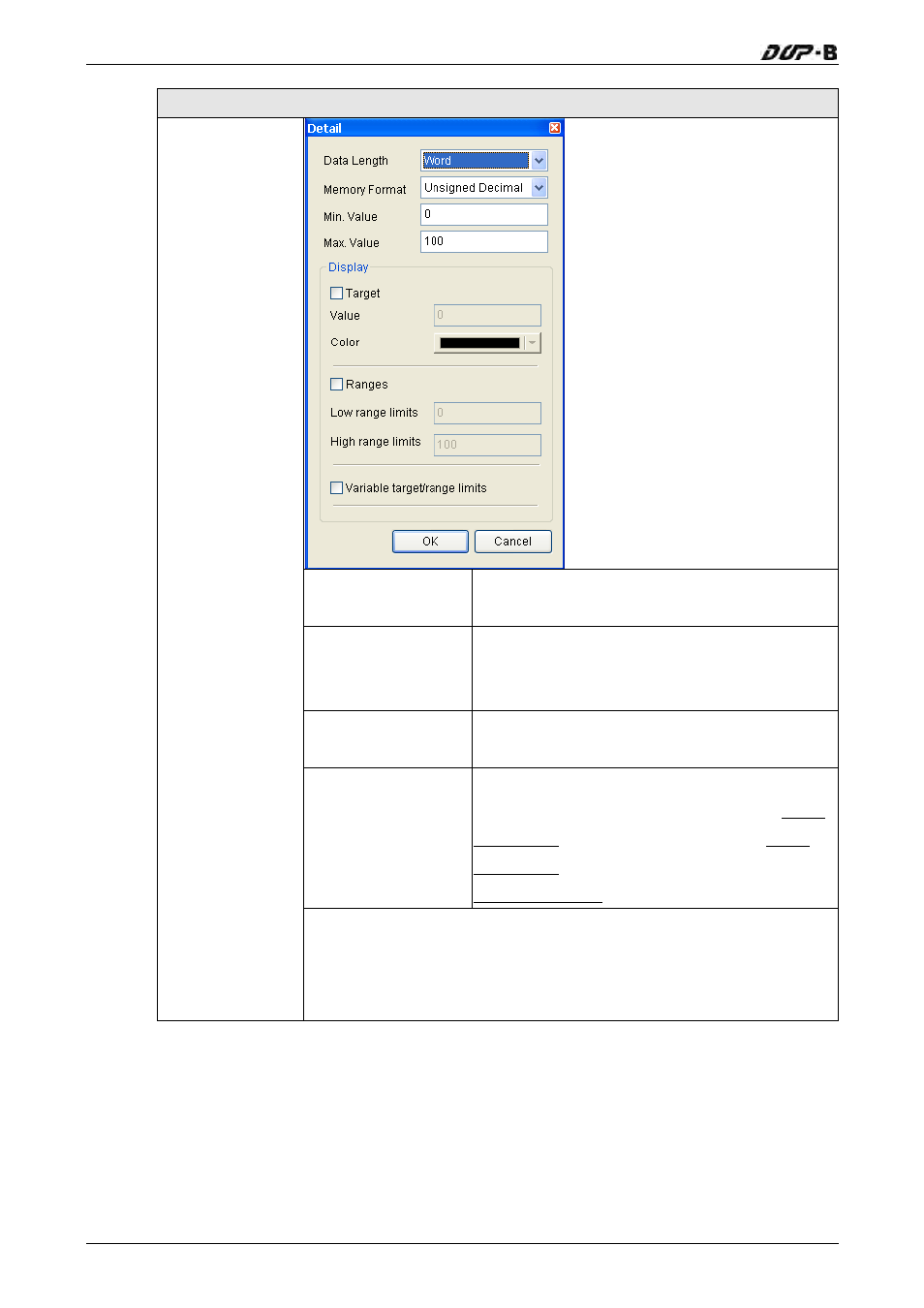

Property Description of Pipe (1) / Pipe (2) Elements
Data Length:
There are 16bits Word and 32bits
Double Word two options.
Memory Format:
here are following data format
provided:
Word/Double Word
1. BCD
2. Signed
BCD
3. Signed Decimal
4. Unsigned Decimal
5. Hex
Minimum Value
Maximum Value Used to set the minimum and maximum
capacity of the pipe element.
Target
Value
Color The user can decide if the target value
displays or not by using this option.
Ranges (Enable
range setting) Please refer to the description of Low & High
Region Color.
Variable
target/range limits
When the target value and low & high limit is a
variable value, the low limit address is Read
Address+1, the high limit address is Read
Address+2 and the address of target value is
Read Address+3.
Setting
When the user has input the target value, low & high limit, and
minimum & maximum value, after pressing OK button, HMI will
examine the value by referring to the selected data length and data
format.
