Chapter 4 Examples
After Report List button is pressed, HMI will transfer the history buffer data and alarm data
saved in non-volatile area into the connecting USB disk. When all of the data has been
transferred into USB disk, the user can press Remove storage button to remove the USB disk.

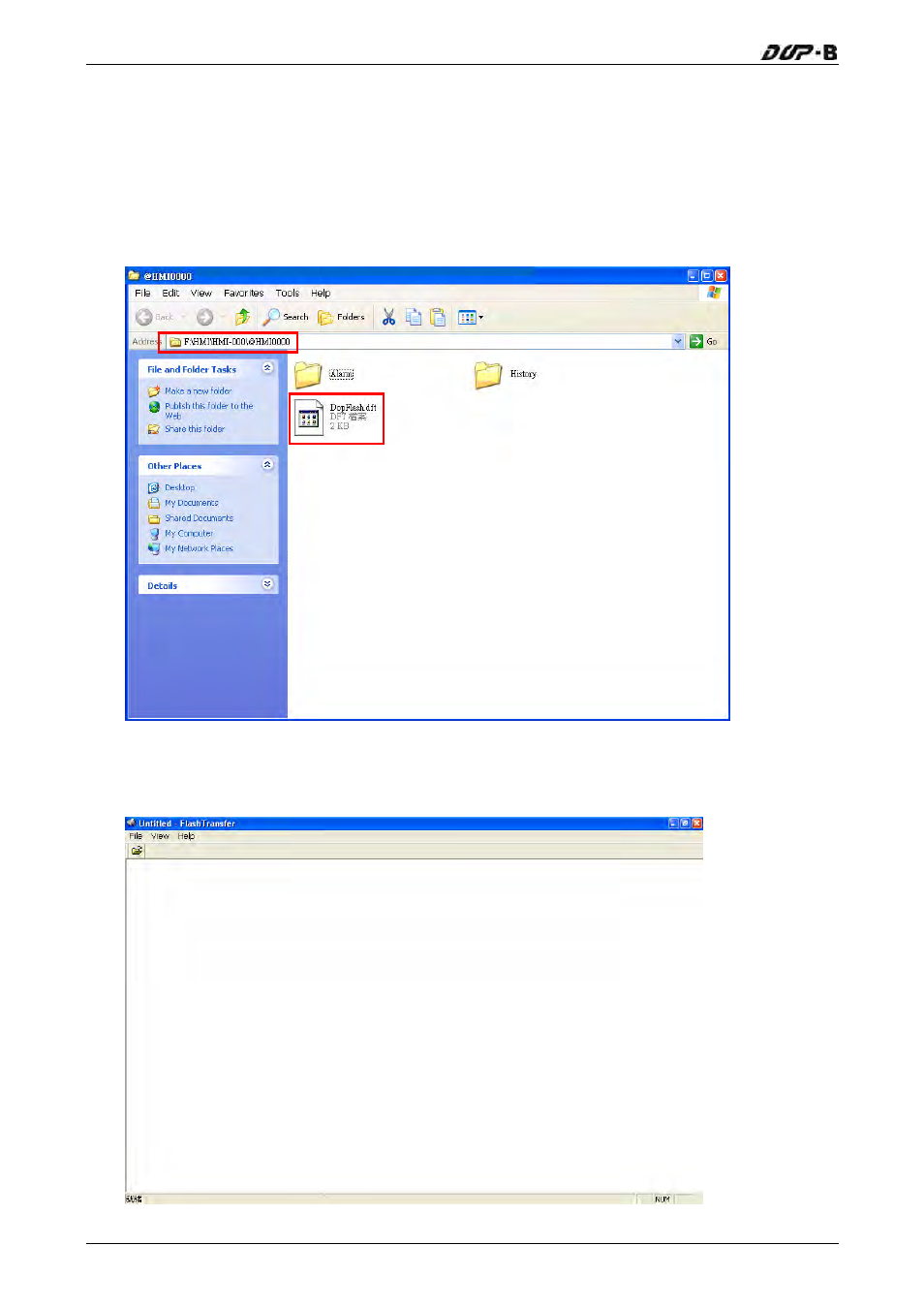

Connect the USB disk to user’s computer and open it. The user will find an auto-generated file,
DopFlash.dft in the USB disk. The user only can use Flash Transfer function to open it.
To execute Flash Transfer, select Start >Programs > Delta Industrial Automation > HMI >
Screen Editor 2.00.07 > Flash Transfer and the following window will open.
4-26
Revision May, 2010
