Delta Electronics DELTA DUP-B User Manual
Page 306
Chapter 3 Creating and Editing Screens

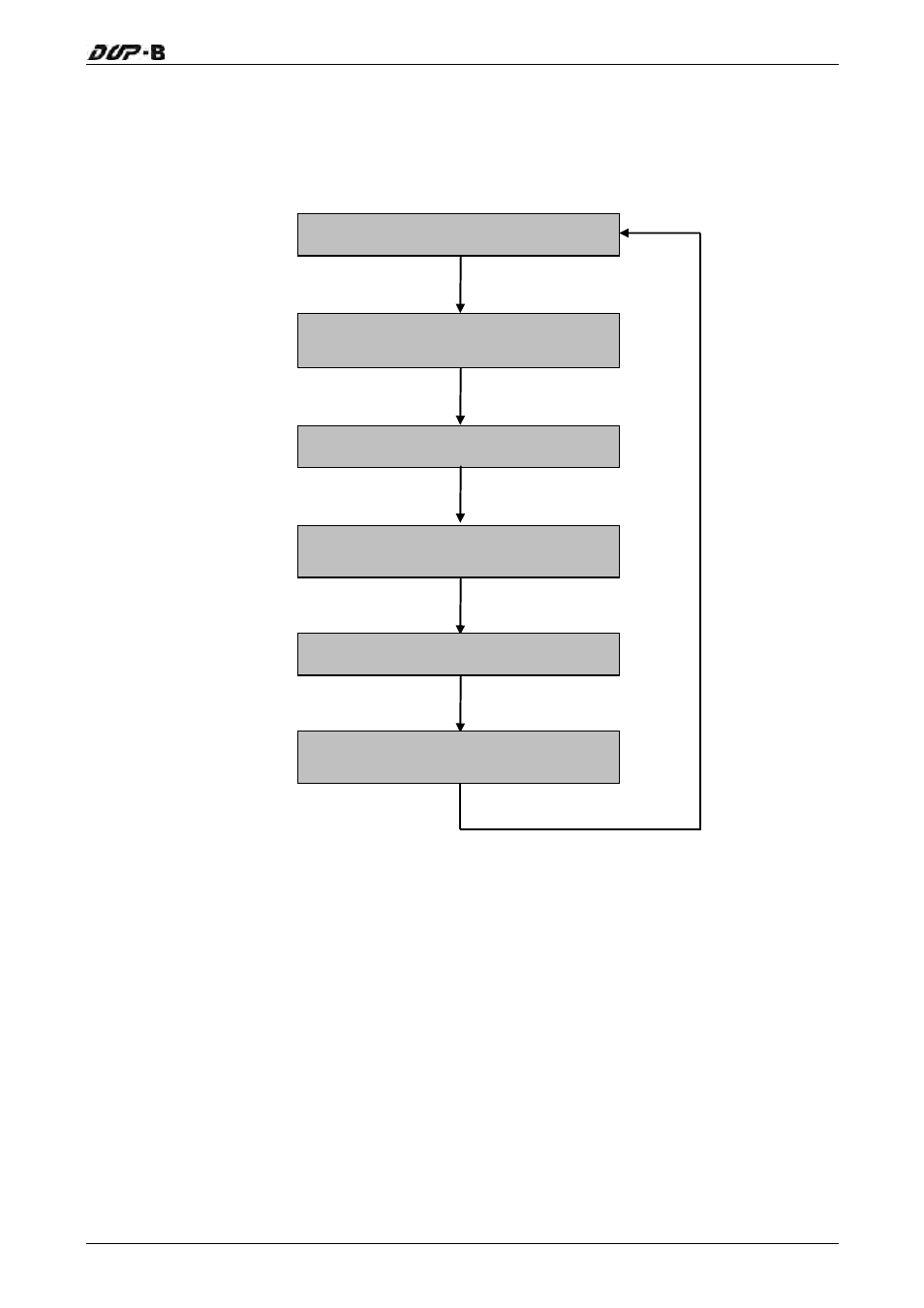

For example, suppose that there are 25 element addresses on the screen and
Background is used (5 lines of macro commands), if the setting value of background
macro update cycle is set to 2, when background macro is executed, HMI will first read
25 element addresses and then execute 2 lines of background macro in sequence.
Read 25 element addresses
Execute 1st and 2nd line commands
of Background Macro
Read 25 element addresses
After execution
After read operation
After read operation
Execute 5th line commands of
Background Macro
After read operation
After execution
Execute 3rd and 4th line commands
of Background Macro
Read 25 element addresses
After execution
Execute
Background Macro
again
Revision May, 2010
3-285
