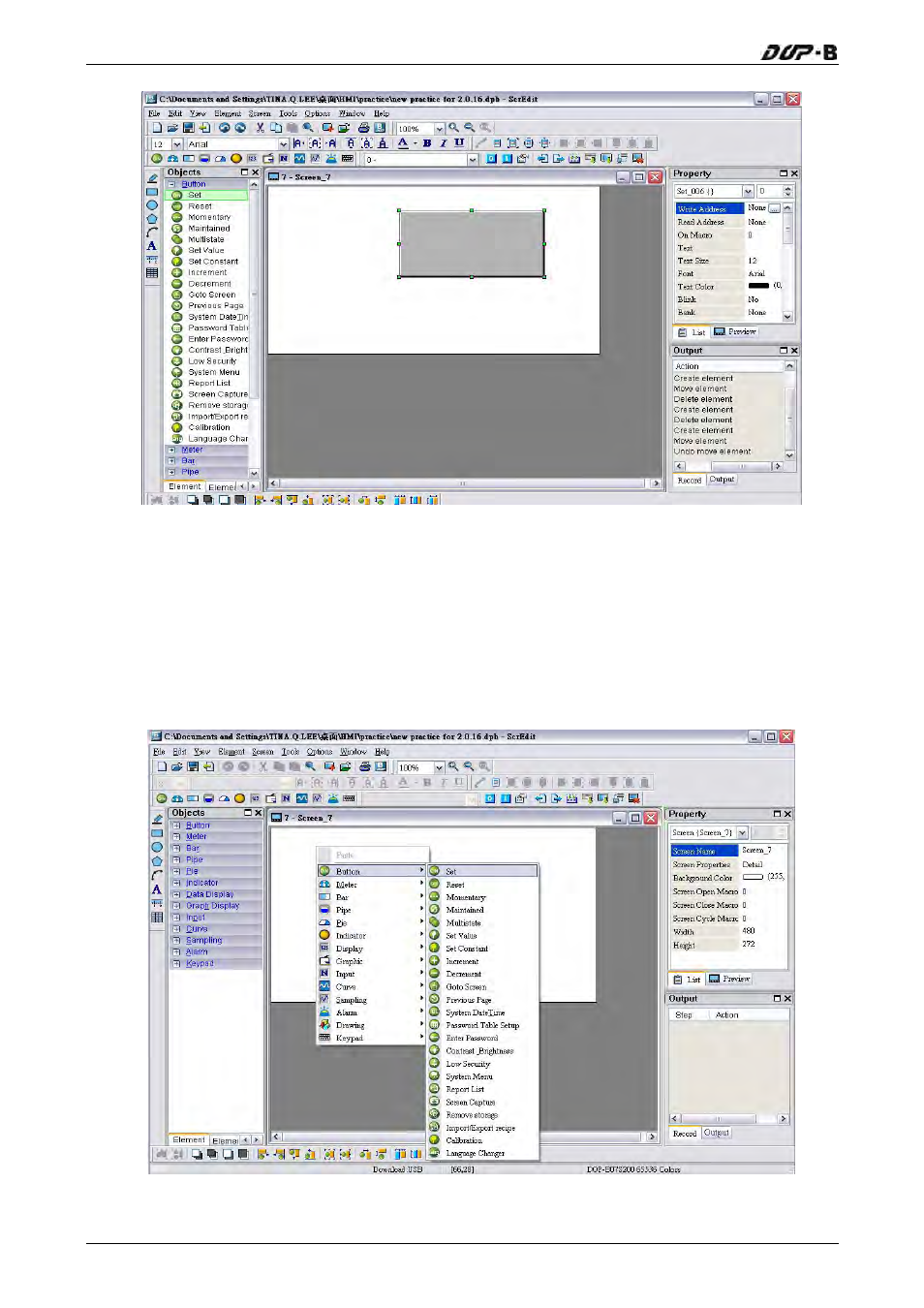

Fig. 3-8-6 Create an element
How to Create an Element
To create an element on HMI screen, first select a desired elemet from menu bar or toolbar
and then click the starting point on the screen. While holding down the mouse button, move
the mouse diagonally to the ending point of the element, then release the mouse button. The
element will appear on the screen. Later set the property of the element (Fig. 3-8-7, Fig. 3-8-8,
Fig. 3-8-9, Fig. 3-8-10).
Fig. 3-8-7 Right-click the mouse to select a desired elemet
