Appendix A List of Functions Added
A.2 Print Typesetting - Custom Print

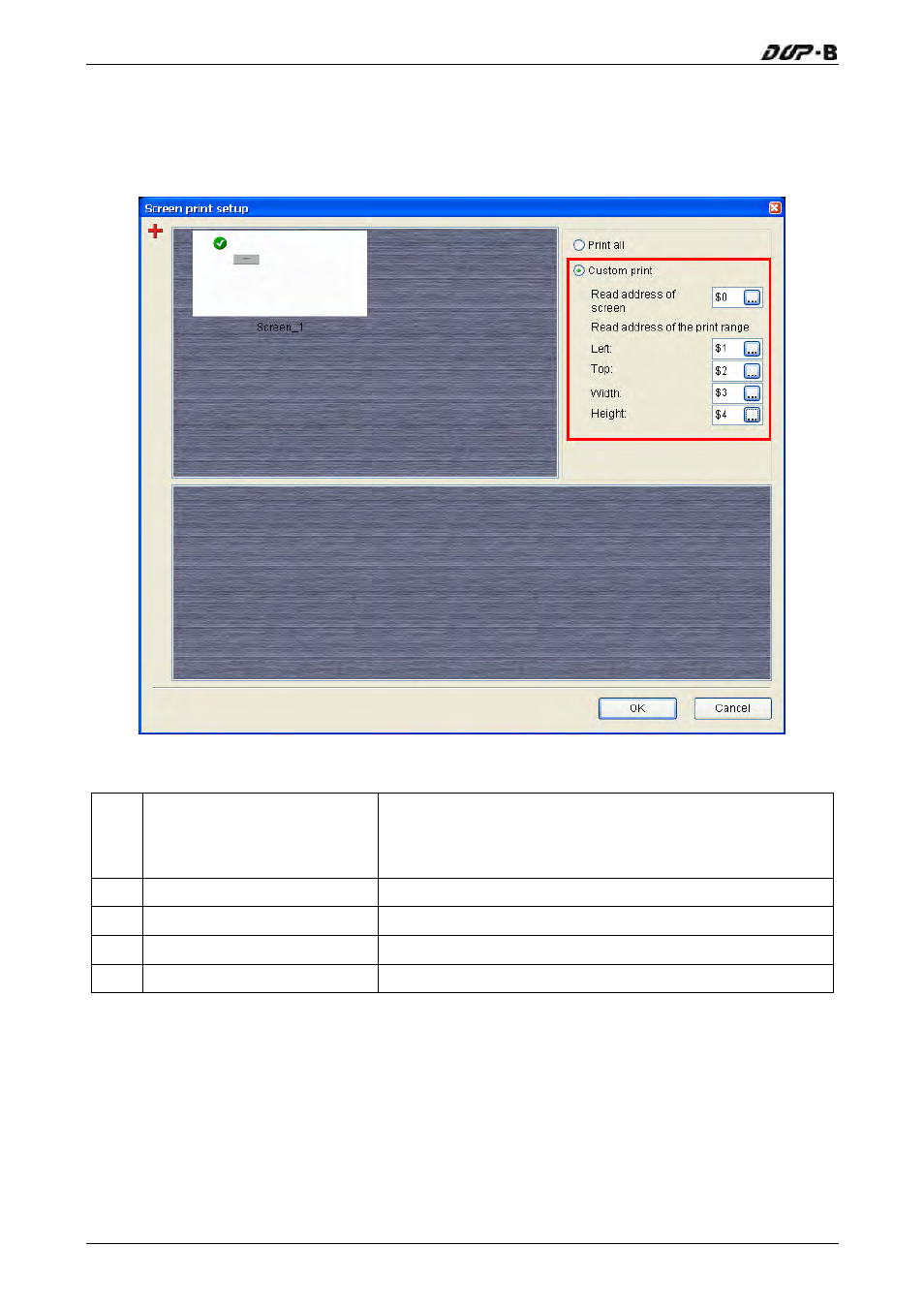

In Print Typesetting dialog box, Custom Print option is available to meet user’s total printing
needs.
The corresponding functions of each register addresses are described in the following table.
$0
Read address of screen
Designate the desired print screen. When the setting
value is 0, all screens shown in the Print Typesetting
dialog box will be printed out.
$1
Left
Set the print starting address of X coordinate
$2
Top
Set the print starting address of Y coordinate
$3
Width
Set the width of the printing range.
$4
Height
Set the height of the printing range.
The user can use this function with the functions of printer flag, report list element and export
macro command, etc.
