Chapter 3 Creating and Editing Screens
3-214 Revision May, 2010
Function Description
Sub-screen
setting

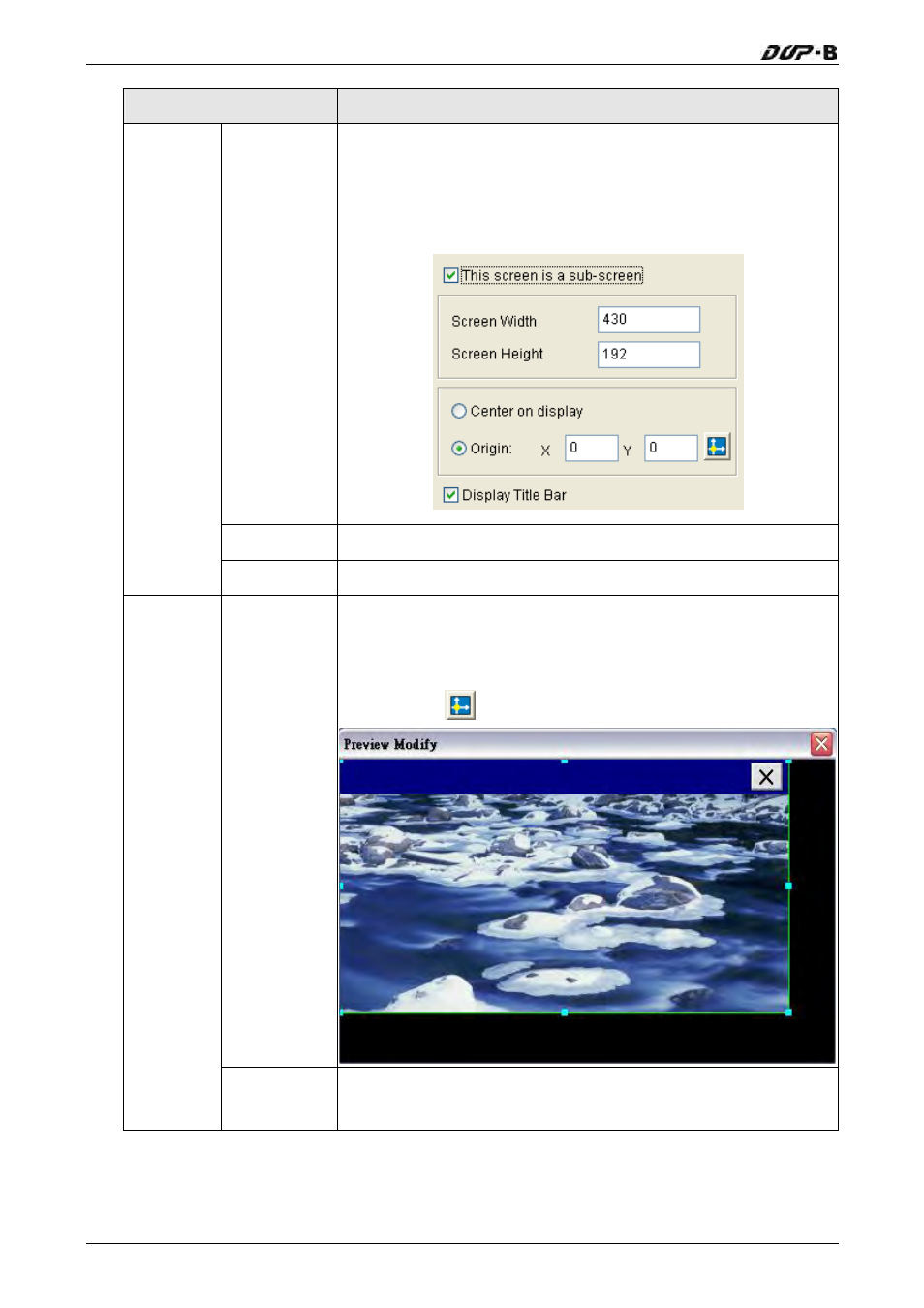

The check box next to “This screen is a sub-screen” can be
checked only when General View Screen option is selected.
Therefore, before setting sub-screen function, ensure the
General View Screen option is selected.
Screen Width Set the width of sub-screen and the unit is Pixel.
Sub-screen
Screen Height Set the height of sub-screen and the unit is Pixel.
Sub-screen
Position
This option can show the sub-screen on the center of
the HMI screen or on a position you specify.
To specify the position,
‧
input the coordinate value directly (X and Y axis) or
‧ press the icon to drag the sub-screen.
Sub-screen
Title Bar The user can select this option to display the title bar on the
screen.
