Delta Electronics DELTA DUP-B User Manual
Page 250
Chapter 3 Creating and Editing Screens
Revision May, 2010
3-229
Control Block tab in Configuration option
Auto Reset Flag
If the Auto Reset Flag box is checked, the register in the control
block is cleared to 0 when any operation is finished in the
control block.
Status Address
Use to set the starting address of system status block. The
length is constant 8 words. Each word indicates the different
status value of HMI system. For more detailed information of
system status block, refer to section 3.4.

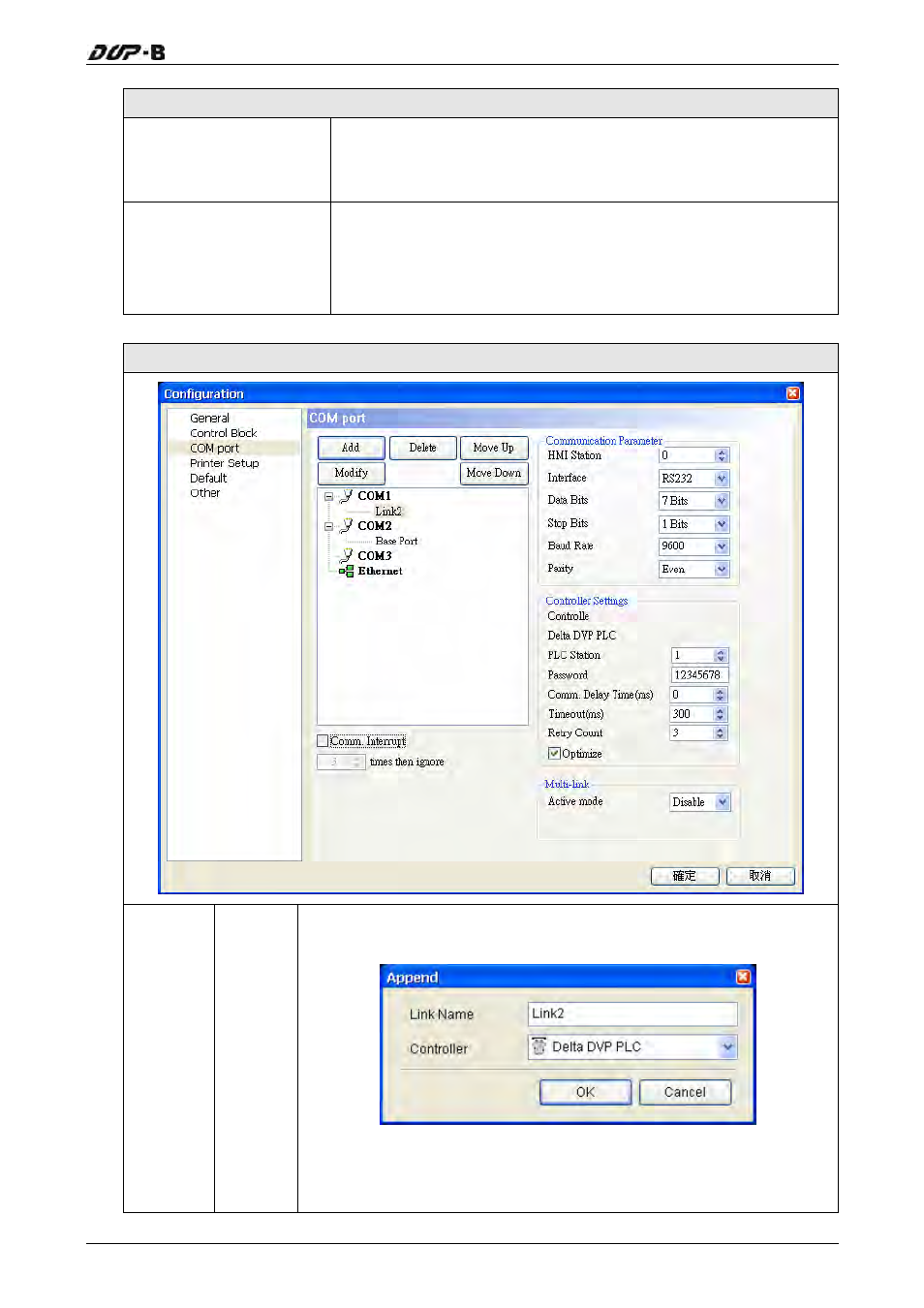

COM Port tab in Configuration option
Add/
Delete/
Modify
Add
Press Add button to determine the connecting device name and the
controller. Please refer to the figure below:
Available connecting PLC will be different depending on HMI type.
(DOP-B series HMI can support up to three different controllers
simultaneously.)
