Chapter 3 Creating and Editing Screens
Revision May, 2010
3-193

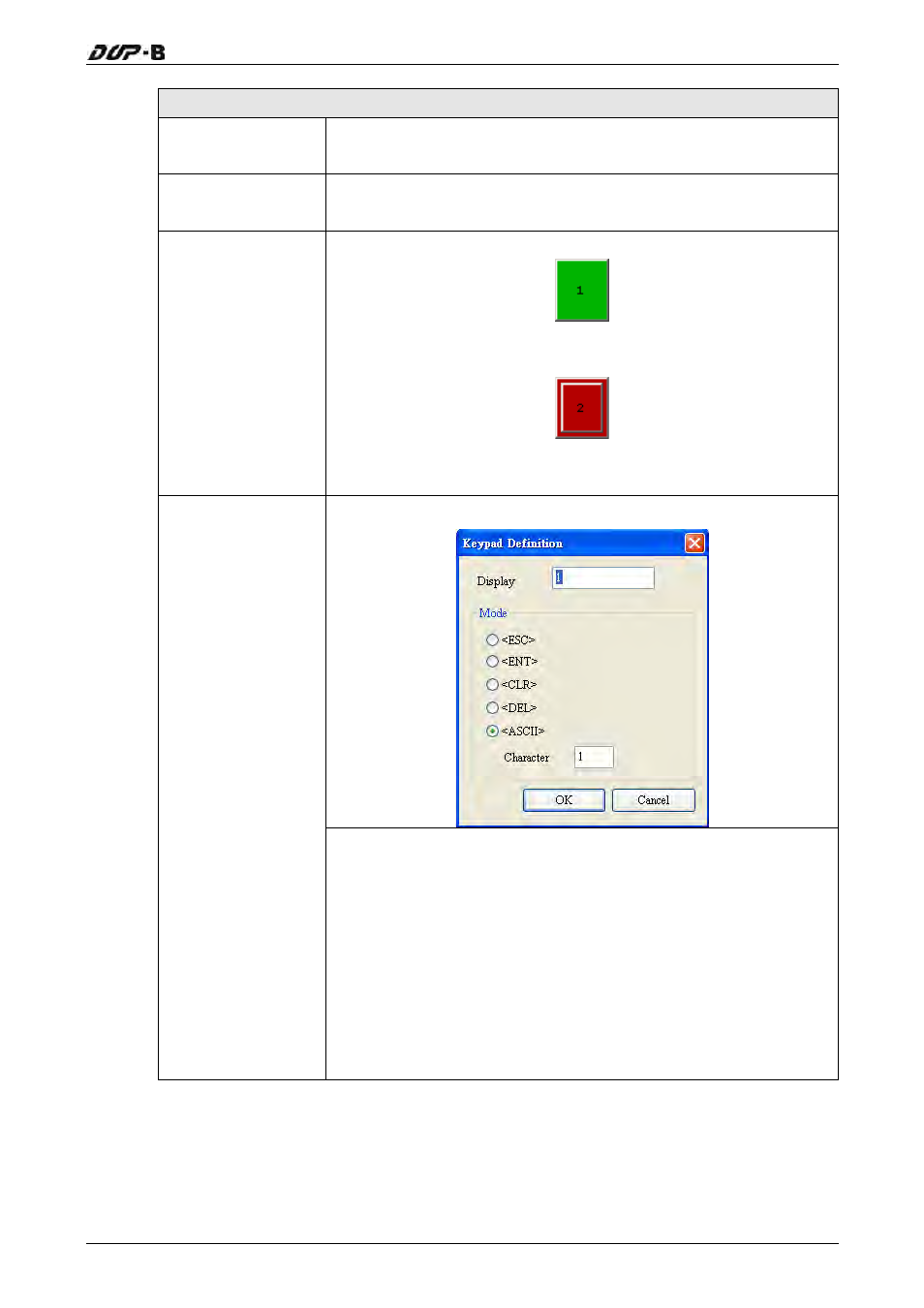

Property Description of Keypad (1) / (2) / (3) Elements
Bank (Picture Bank)
Picture Name
(Please refer to Table 3-8-2 Property Description of General
Buttons.)
Transparent Effect
Transparent Color
(Please refer to Table 3-8-2 Property Description of General
Buttons.)
Foreground Color
Style
There are Standard and Raised these two options.
(When the style is selected as Standard and the foreground color
is set to green.)
(When the style is selected as Raised and the foreground color is
set to red.)
The user can redefine the buttons of the keypad.
Setting
Display: Display text or character
Mode:
The are following modes provided::
1.
window, this key can be used to close the sub window.
2.
3.
4. Delete
5.
Character
