Chapter 3 Creating and Editing Screens
3-98 Revision May, 2010
Property Description of General Buttons
Bank
Picture Name
In this dialog box, the user can double click the mouse to select an
element. The user can also press Ctrl and left key of the mouse to
import several pictures into the designated element at the same
time. The selected pictures will be stored in each state of the
element in order. If the number of the selected pictures is more
than the number of the element state, only the number of the
element state will be imported and the remainder will be ignored
and not be imported into the element.
Transparent Effect
Transparent Color
Use the sucking tool to remove the color of the element and
determine the transparent color of the element.
The user can click the sucking tool on toolbar or choose the
transparent color by using the drop-down list. However, if the
selected transparent color is too close to the element color itself, it
will make no difference to the element. For example, RGB(0,0,0) is
black color, but RGB(1,1,1) is also black color. When the element
color is RGB(0,1,0) (it is also black color visually), even if the user
selects RGB(0,0,0) as the transparent color, the element will look
almost the same still. At this time, we recommend the user use the
removal tool on toolbar and remove the color of the element
directly.
Please ensure to check whether the color of the selected element
matches the color supported by HMI or not. This function is invalid
and the color may not be removed successfully if the user applies
this function on a 65536 colors element in a 256 colors editing
environment.

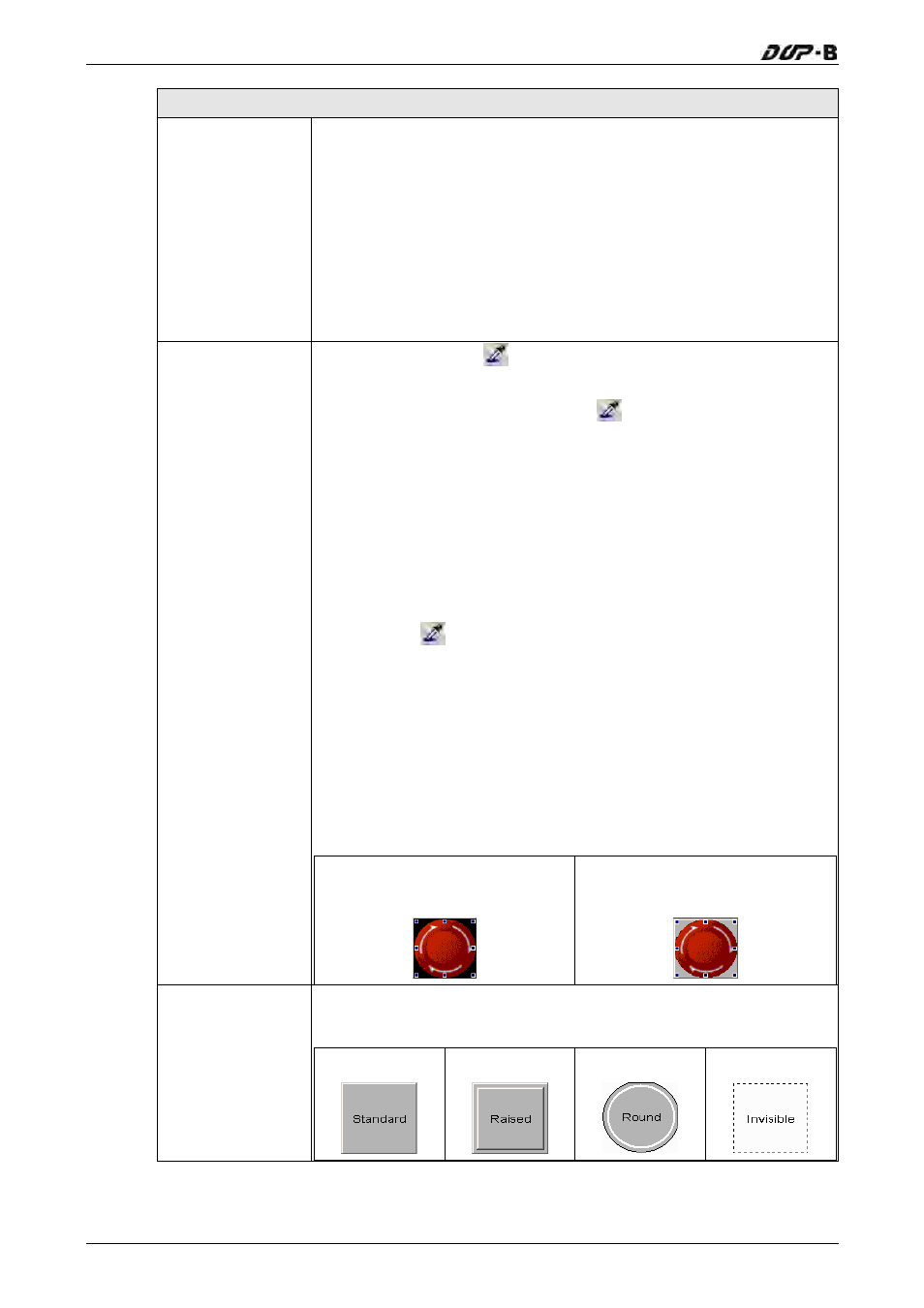

The effect on the element before and after this action happens is
shown as the figures below.
The effect before this action
happens
The effect after this action
happens
Foreground Color
Style
The user can specify the button style and foreground color as the
figures below by using this option.
Standard Raised Round Invisible
