Chapter 3 Creating and Editing Screens
3.11.5 Tag
Table
Tag table is used to replace the specific address with the user-defined words or characters.
For example, if the user wants to replace PLC address 1@Y0 with the word “OS”, just define it
in Tag Table option in advance.

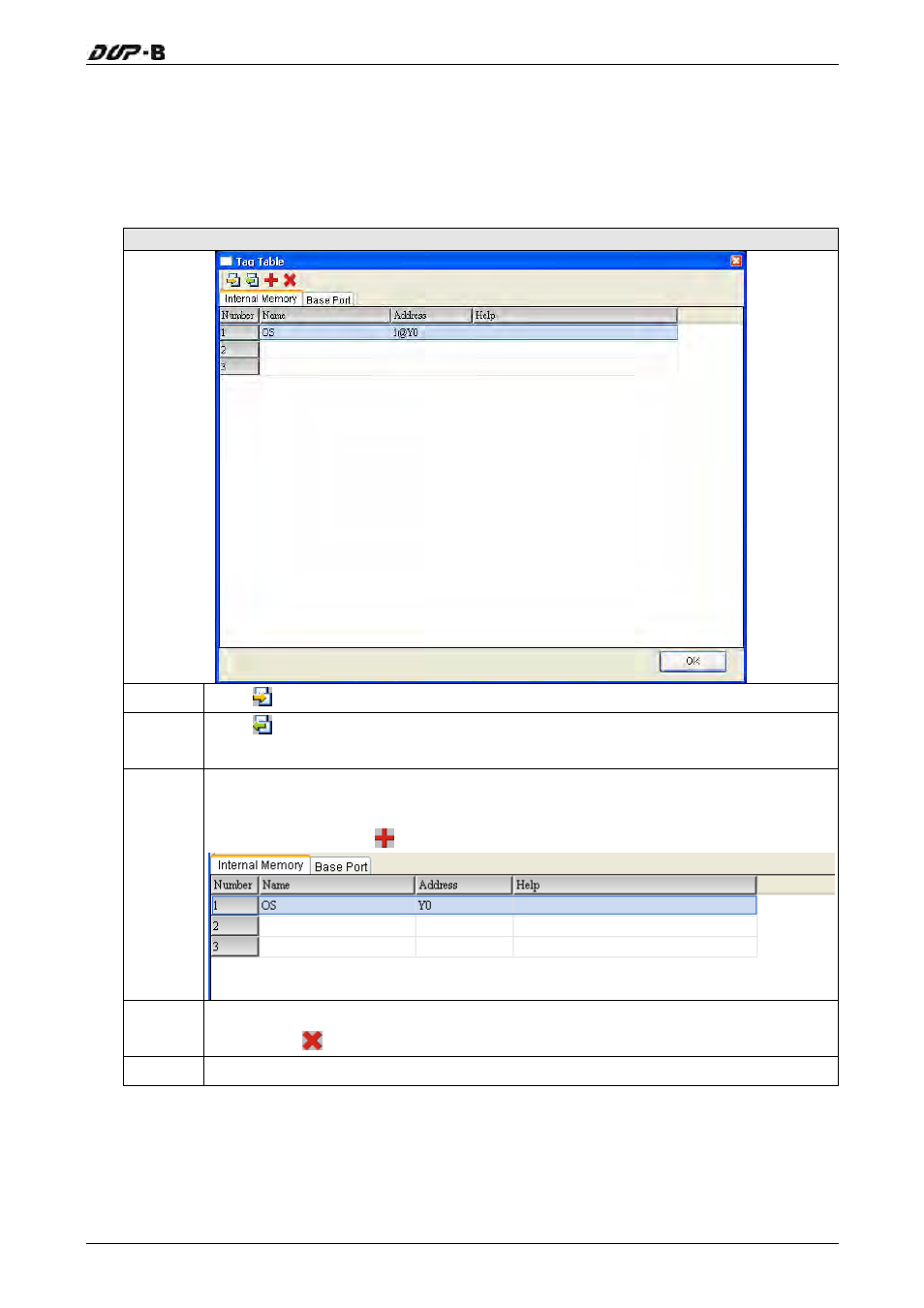

Tag Table Dialog Box
Open Click
to open a Tag file and import it into HMI.
Save
Click
to save the settings and changes made in Tag Table dialog box as Tag
file.
Add
Select the Tag type first, Internal Memory and Base Port (If the user has three or
above communication ports, the user will see Link2, Link3 …and vise versa).
Then, click Add icon
to add and define Tag data.
Delete
The user can use the mouse to select one row of the Tag table, and then click
Delete icon
button to delete it.
OK
Press OK button to save the settings and exit.
