Delta Electronics DELTA DUP-B User Manual
Page 428
Chapter 4 Examples

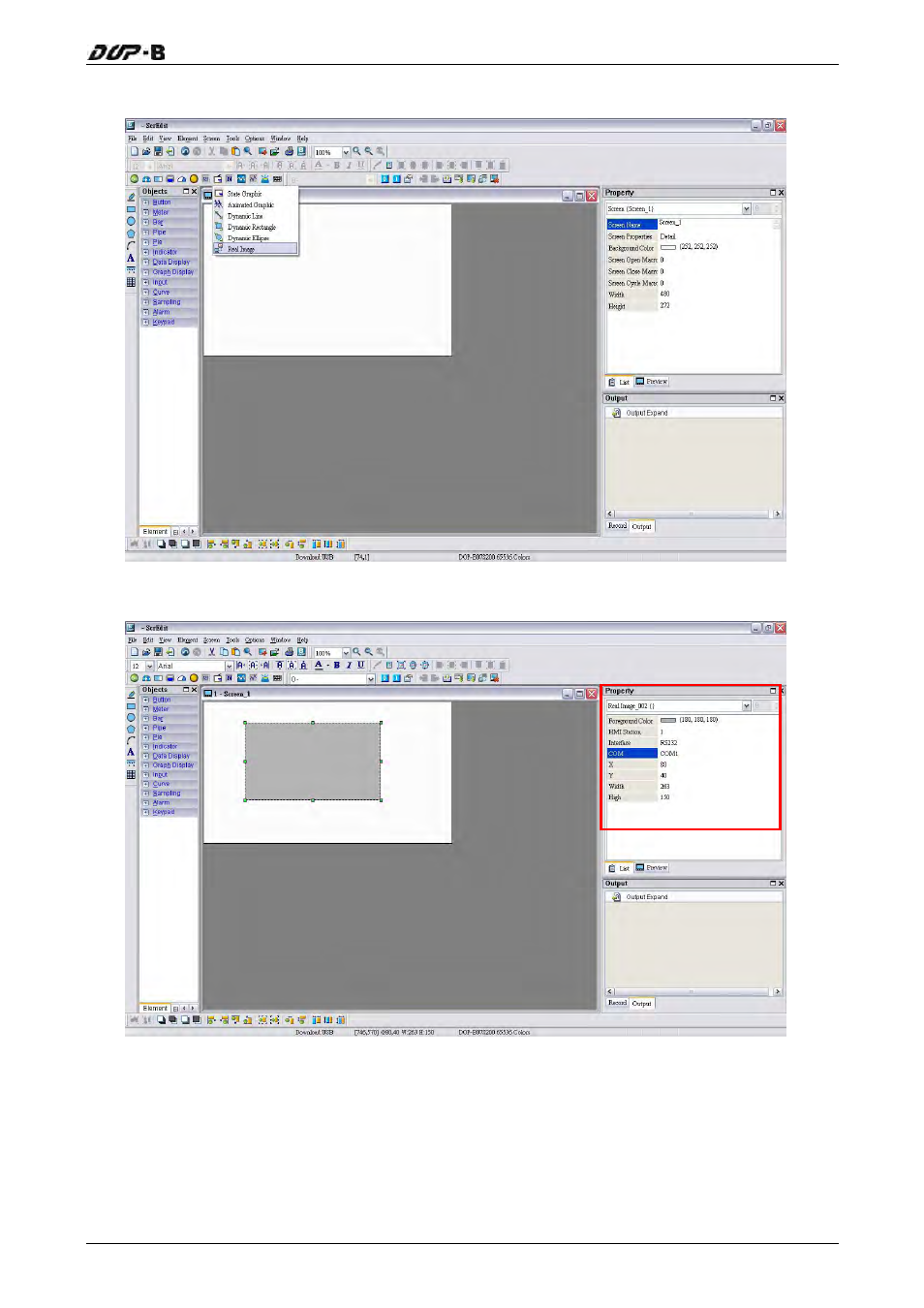

Create a Real Image element on the screen.
In property settings of the element, set the COM port to COM1 and the interface to RS232.
After completing the property settings of the element, click Tools > Compile command to
perform Compile operation and download the screen data to HMI.
Revision May, 2010
4-29
