Delta Electronics DELTA DUP-B User Manual
Page 24
Chapter 3 Creating and Editing Screens
After pressing OK, system will setup automatically and you will get the following
dialog box to choose destination location (Fig. 3-1-3).

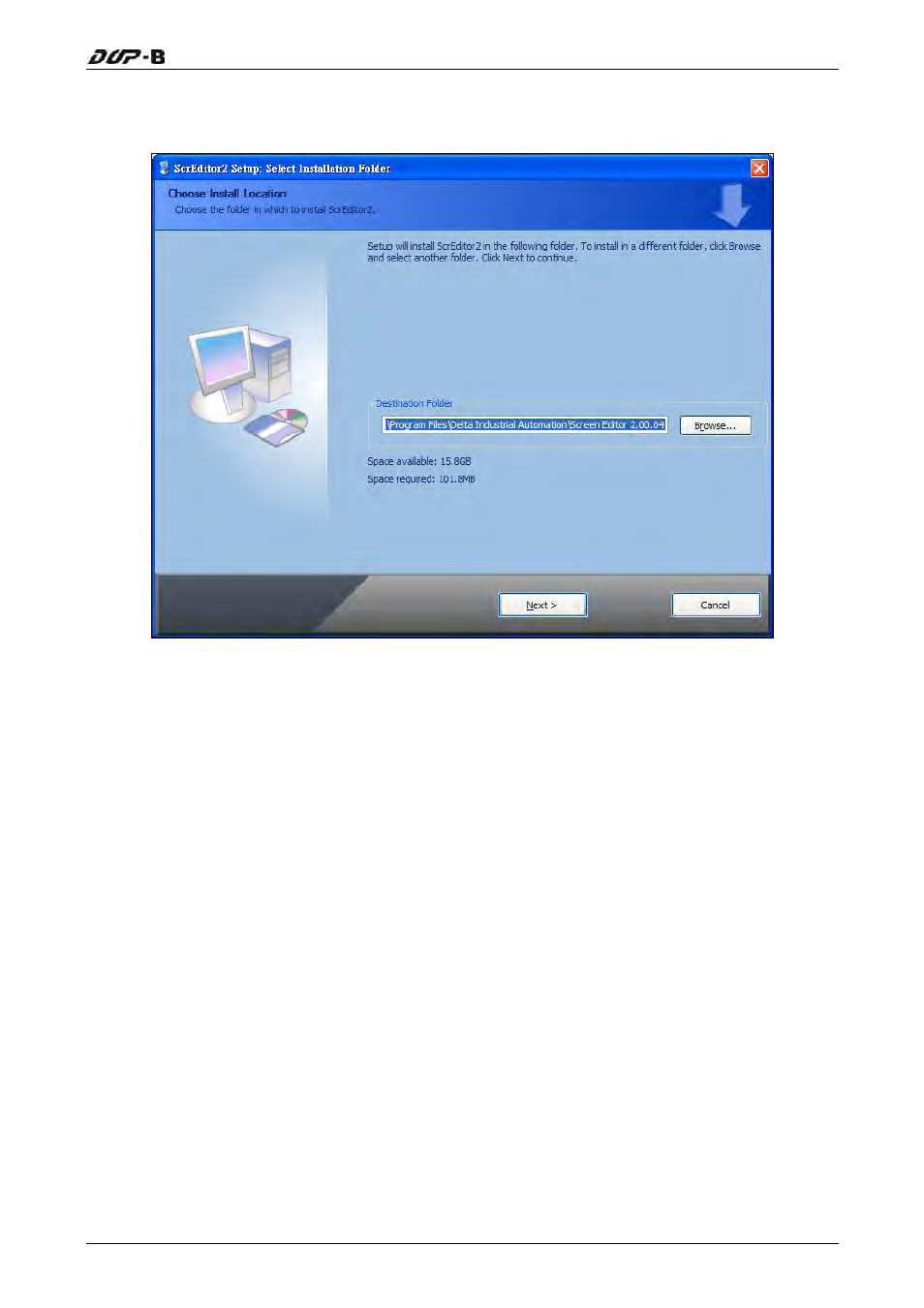

Fig. 3-1-3 Directory for installing Screen Editor software program
To select the default directory C:\Program Files\Delta Industrial Automation\Screen
Editor 2.00.XX\, click Next> for the next step. Setup will install in the directory
indicated in the Destination Directory box at the bottom of the dialog box.
To select a directory other than the default directory, click Browse. A list of available
directories appears. Highlight the desired directory for Screen Editor and click OK,
then Next> for the next step. If necessary, click < Back button to take you back
through Setup dialog boxes one by one.
Please remember the location of the destination directory. If the destination directory
is missing or changed, the user cannot upgrade the software successfully.
Step 3: After pressing Next, system will ask you to select the installation software, i.e. Screen
Editor (Fig. 3-1-4).
Revision May, 2010
3-3
