Chapter 3 Creating and Editing Screens

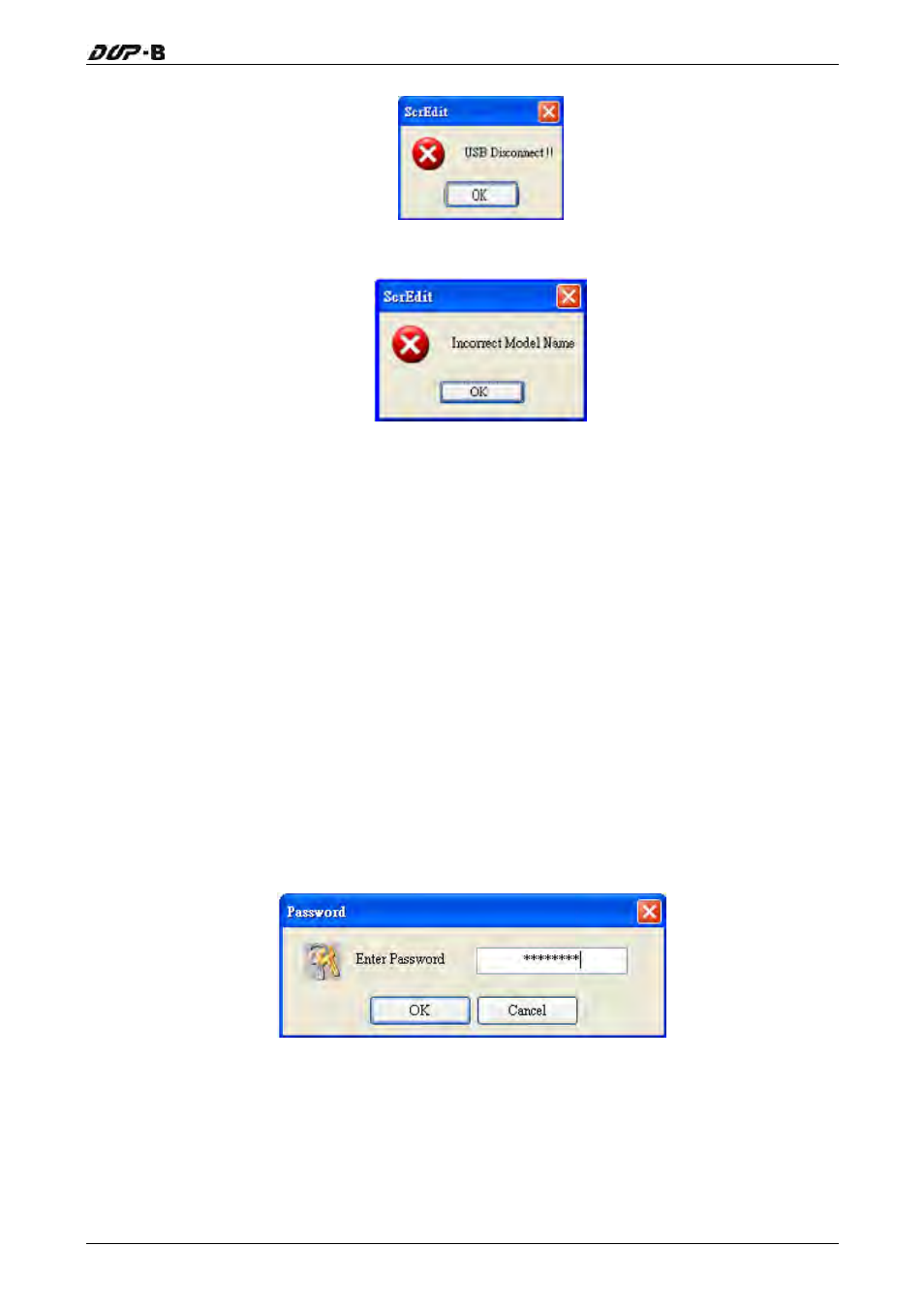

Fig. 3-10-3 USB disconnect error message
Fig. 3-10-4 Incorrect model name error message
3.10.3 Upload Screen & Recipe
After clicking File > Upload Screen & Recipe, the password dialog box will show up first (Fig.
3-10-5), the user needs to input password (the password is the highest priority saved in HMI,
which is set by clicking Options > Configuration > General > Security). When entering the
correct password, the user can get save as dialog box (Fig. 3-10-6). After inputting project file
name, the uploading will start (Fig. 3-10-7). The user can get the progress with progress box
and stop uploading by clicking Stop button. When progress goes to 100%, it indicates that the
uploading is complete. The user can press Stop button to exit the dialog box. The file that is
uploaded from HMI can be restored to original editing file for user to edit. This option is to
avoid losing the original editing file. If the user wants to upload data with pictures also, just
select the Include Picture Data when uploading in Environment dialog box by clicking
Options > Environment.
