Chapter 3 Creating and Editing Screens
3.5.5 Save as
Save current project to another file name by clicking File > Save As. The user will get Save as
dialog box (Fig. 3-5-6) to input project name with extension file dpb. This dialog also appears
automatically when the first time any project file is saved no matter whether Save As or Save
command is used.

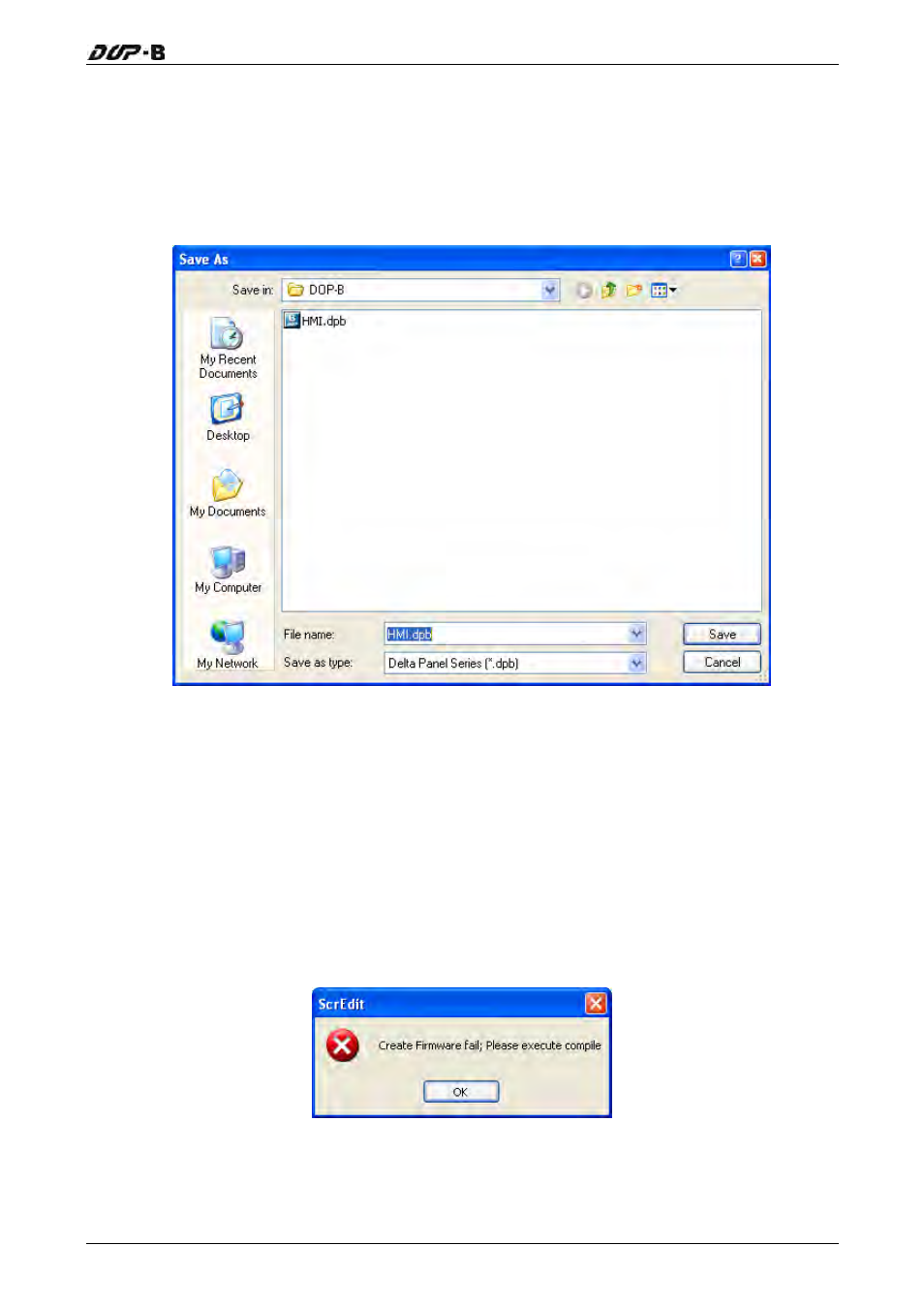

Fig. 3-5-6 Save as dialog box
3.5.6 Make Ext. Memory Data
Before using this command, ensure to compile the editing screen data. If not execute the
compilation first, the ScrEdit cannot make screen data and an error message dialog box will
show up (Fig. 3-5-7). Please execute the compilation first and then clicking File > Make Ext.
Memory Data to copy the compiled HMI program into SD card or a USB disk (Fig. 3-5-8). If the
SD card or USB disk with compiled HMI program stored inside is inserted into HMI, HMI will
startup by reading the data of SD card or USB disk directly.
Fig. 3-5-7 Error message dialog box when making ext. memory data
Revision May, 2010 3-45
