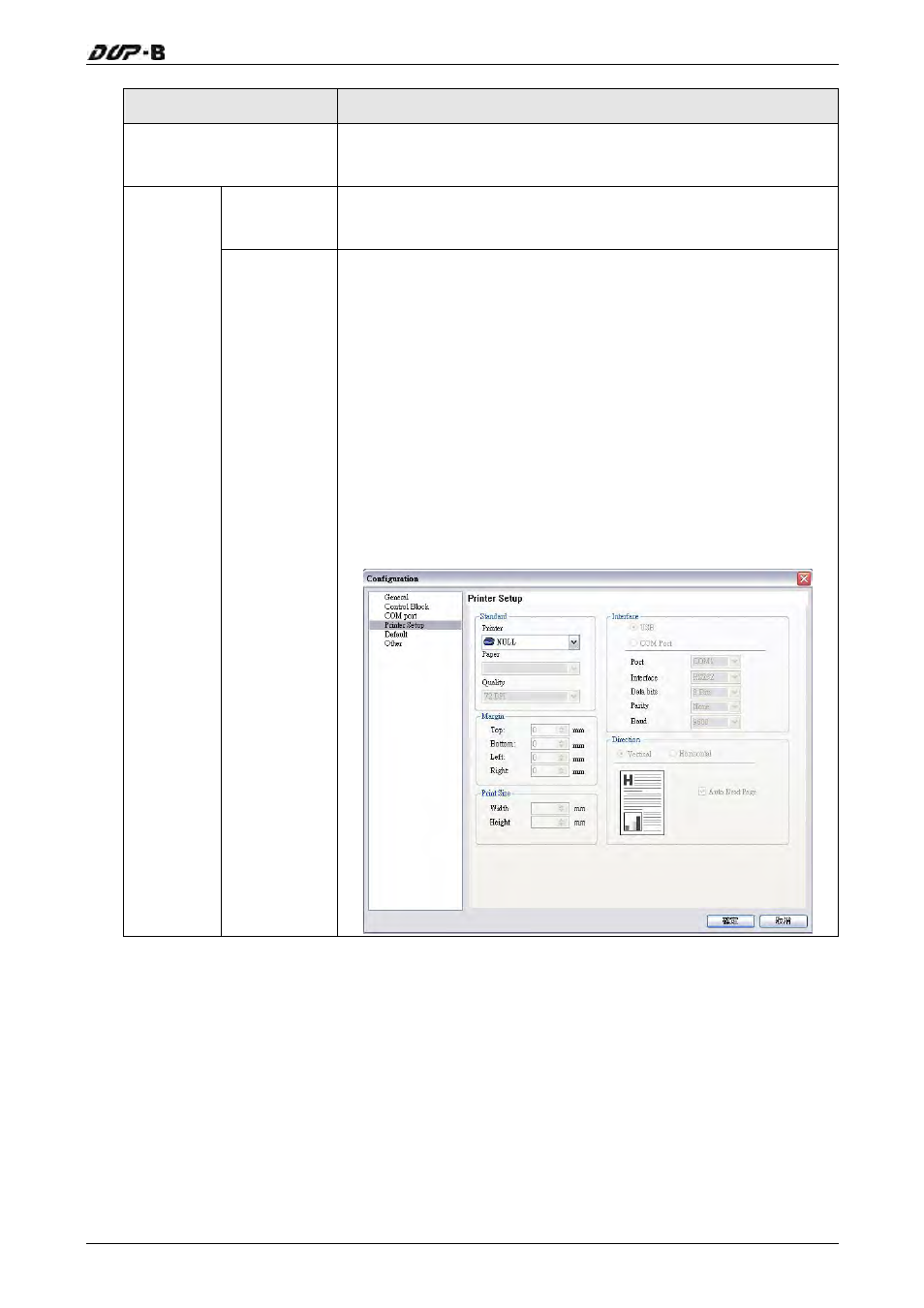

Delta Electronics DELTA DUP-B User Manual
Page 234
Chapter 3 Creating and Editing Screens
Function
Description
Screen Number
The range is between 1 and 65535. Each screen number must
be unique. The user cannot use the same number two times.
General View
Screen
Regarded as general view screen.
Screen
Application Apply Print
Screen
1. Regarded as print screen. The printer can print the
element created by the user after a compile operation.
This option is only available in DOP-B series HMI which
supports printer function.
2. When Apply Print Screen function is selected, the editing
range will be scaled to the actual paper size of the printer.
The user can only print the elements within the range of
the paper size. This option is usually used for print
typesetting (print layout management function).
For the setting of print function, please click Options >
Configuration > Printer Setup.
Revision May, 2010
3-213
