50 Getting Started
Missing FB Shapes SmartShape in the OpenLNS CT drawing.
Subsystem to Visio
Document
Assignment Select in which Visio drawing file to place the subsystems in your
network. You have four choices:
• Single Visio Document for all Subsystems. Places all
subsystems in a single Visio document.
• Prompt for Subsystem Document Assignment. Prompts you
to specify the Visio document for each subsystem.
• Separate Document for each Subsystem Hierarchy below
Root. Places each subsystem hierarchy below the top-level
subsystem in a separate, new Visio document.
• Custom. Opens the Subsystem Document Assignment dialog.
In this dialog, you specify the Visio document for each
subsystem.

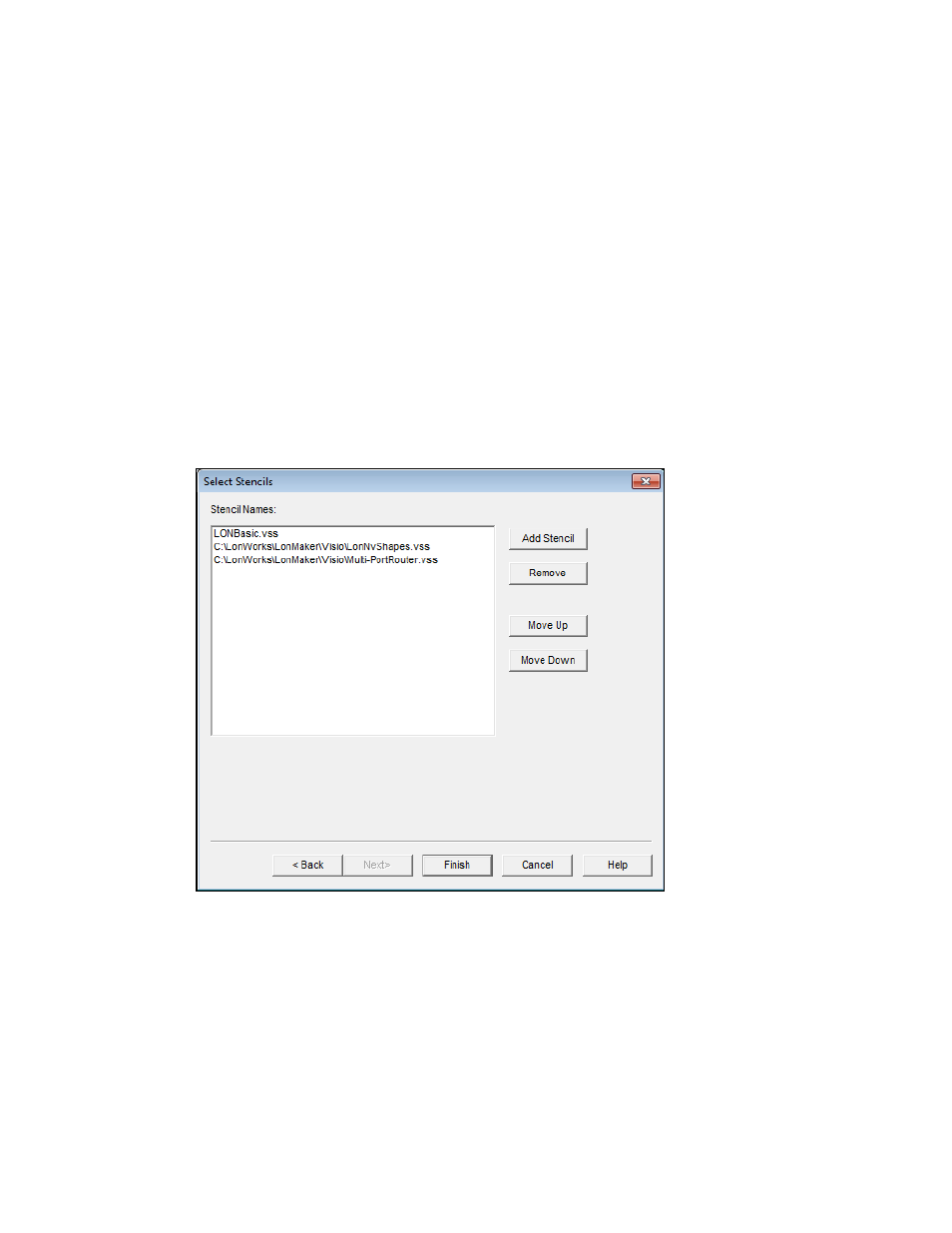

7. Click Next. If you selected the Automatically Drop Device, FB, and Subsystem Shapes check
box, the Select Stencil dialog box opens. If you cleared this check box, skip to step 9.
8. Select the stencils that you want to be scanned for master SmartShapes.
• To add a stencil, click Add Stencil, select the desired Visio stencil file (.vss), and then click
Open or double-click the stencil.
• To remove a stencil, select the desired stencil and then click Remove. You can also re-order
the stencil positions by selecting a stencil and clicking Move Up or Move Down. Click
Finish.
OpenLNS CT will then search, in order, all the listed stencils. When objects are found within
the database that are not already represented in the drawing, OpenLNS CT scans the listed
stencils and automatically adds the appropriate SmartShape to the drawing. If the particular
master SmartShape for an object is not found, an appropriate generic SmartShape (a
