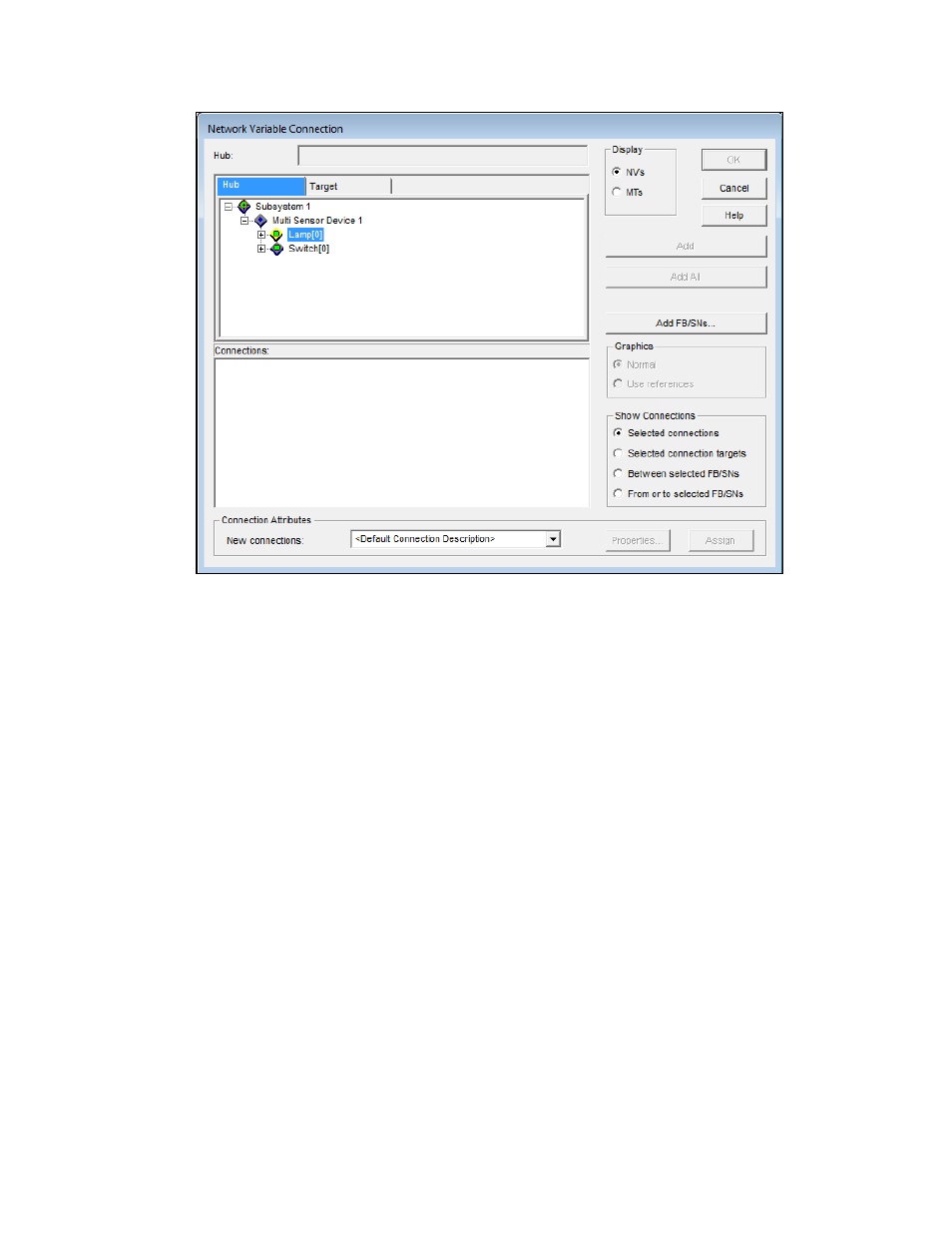

3. Create the network variable connection by selecting the following options:
Hub: (box)
Displays the currently selected hub network variable. This is useful
when you are selecting the target network variables.
Hub (tab)
Displays a hierarchal view of the network, consisting of the
subsystems, devices, functional blocks, and all available network
variables that can be selected as the hub. Select the hub network
variable on this tab before clicking the Target tab.
Target
Displays a hierarchal view of the network, consisting of the
subsystems, devices, functional blocks, and all compatible network
variables that can be selected as targets. Select a target and then
click Add.
Connections
Lists the connections that are scheduled to be created.
Connection Attributes
New Connections
Displays the connection description that will be assigned to all new
connections created. Select
use a smart connection description as described in Using Automatic
Connection Description Selection.
Properties
Opens the Connection Details dialog, which specifies the attributes
of the selected connection description. You can also create new
connection descriptions in this dialog.
Assign
Assigns the currently selected connection description to all
connections in the Connections box.
Display
Select which types of connection points are displayed.
