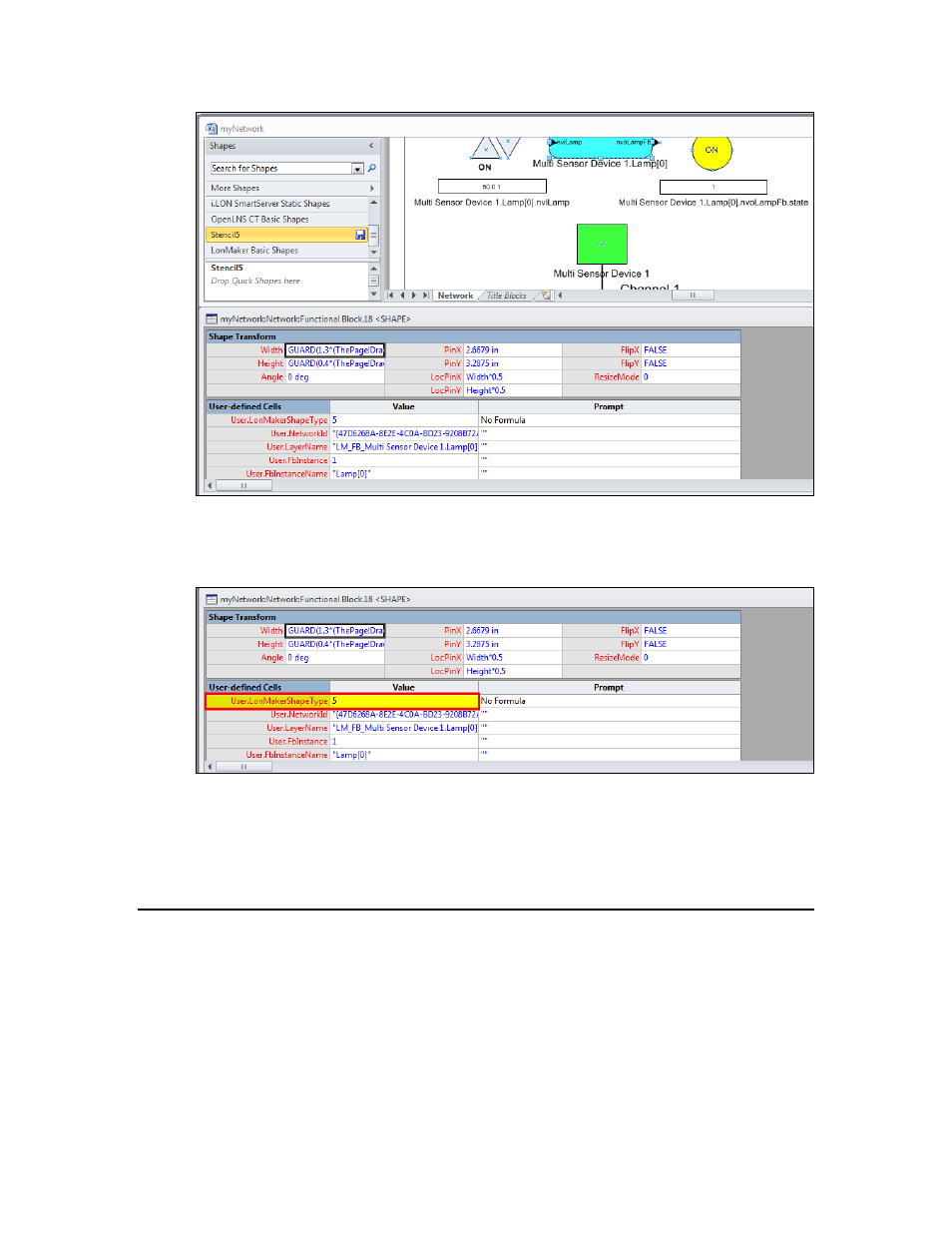

4. Every OpenLNS CT SmartShape has an OpenLNS CT ShapeType user cell. The value of this
cell specifies the OpenLNS CT SmartShape type. You are most likely to use the DEVICE
(LonMakerShapeType 4), FUNCTIONAL_BLOCK (type 5), and FB_NAME (type 13)
SmartShape types.
5. You can use the FB_NAME value to include a functional block within a group that may include
other functional block SmartShapes. Set the ShapeType value to 13 for SmartShapes in the group
with text that reflects the functional block name.
You can create custom functional block master SmartShapes with network variables by creating a
functional block instance in OpenLNS CT, adding the appropriate network variables, and then
dragging the SmartShape to a stencil.
Additional Device User Cells
You can include the following additional user cells in a device SmartShape. Not every device has all
of these cells, but you can add any of them by right-clicking an existing user-defined cell and selecting
Insert Row.
Auth
A value of 1 indicates that authentication will be enabled for
devices created from this master SmartShape.
AutoLoad
Indicates whether an application will automatically be loaded into
the device when the device is commissioned or replaced.
